D1146/D1146TI/DE08TIS
MAINTENANCE MANUAL
42
Printed in Jan. 2001 PS-MMA0415-E1A

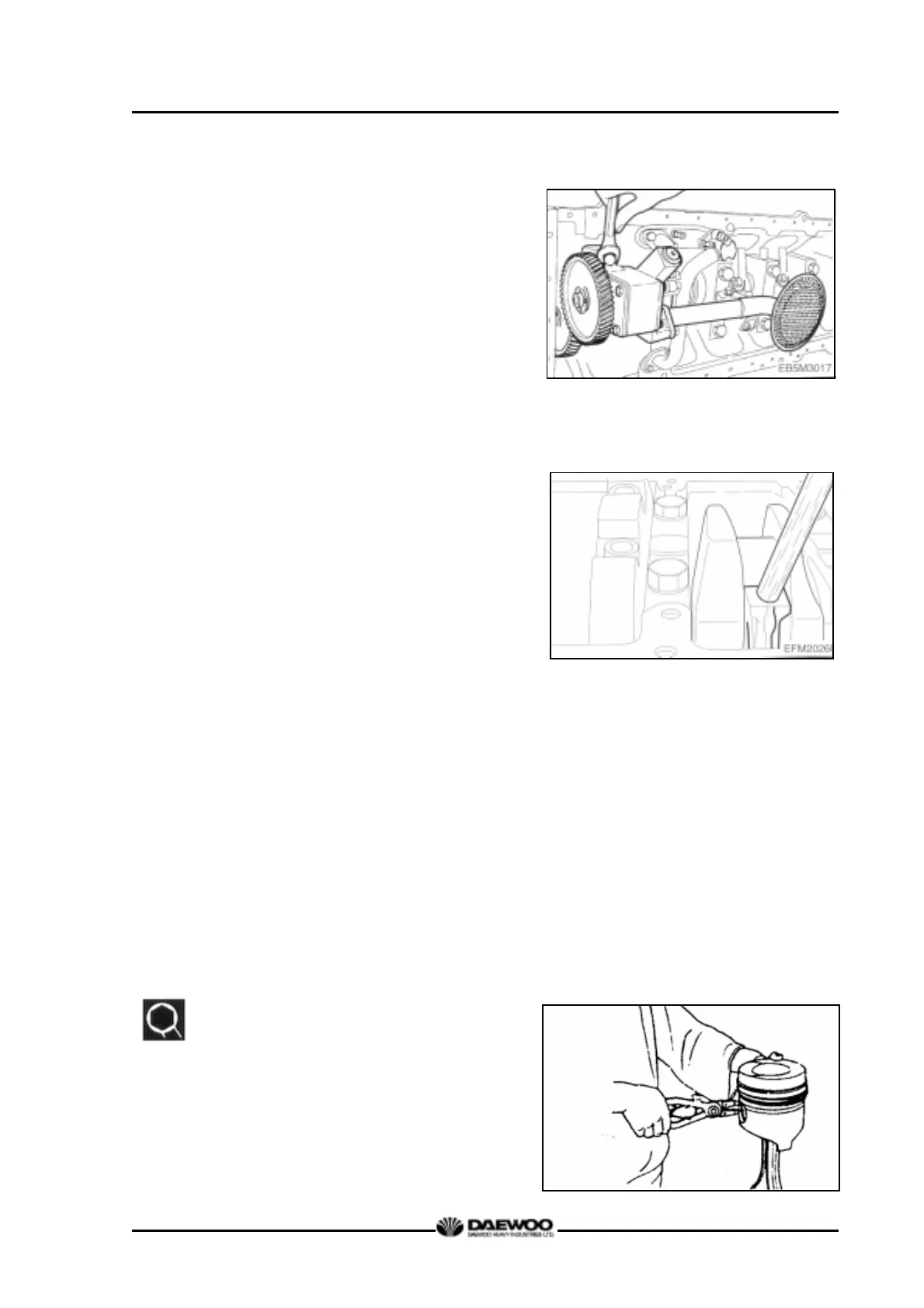

3.1.30. Oil pump
z Unscrew the bracket fixing bolts of the oil
suction pipe.
z Unscrew the pipe fixing bolts of oil pump
and disassemble the suction and supply
oil pipe.
z Unscrew the oil pump fixing bolts, and
disassemble the oil pump.
3.1.31. Piston and connecting rod
z Remove the connecting rod cap bolts in
the reverse order of assembling but do
same as the cylinder head bolt removal.
z Disassemble the upper/lower of
connecting rod caps by tapping lightly
with urethane hammer, and remove the
bearing.
z By pushing the connecting rod with
wooden bar from the direction of oil pan
toward cylinder head, disassemble the
piston assembly.
z The disassembled piston assembly
should be handled to prevent bumping
each other, and stored as the cylinder's
order.
z In order for connecting rod cap not to be
swapped, temporarily assemble to the
corresponding connecting rod.
<Disassembly of piston>
(1) Remove the snap rings by means
of a plier.
To Next Page
