compressed air to prevent the entry of foreign substances.
z After the cleaning operation, make the
cylinder liner dried up and push it into
the cylinder block by hand.
z Wet the liner inside diameter with
engine oil.

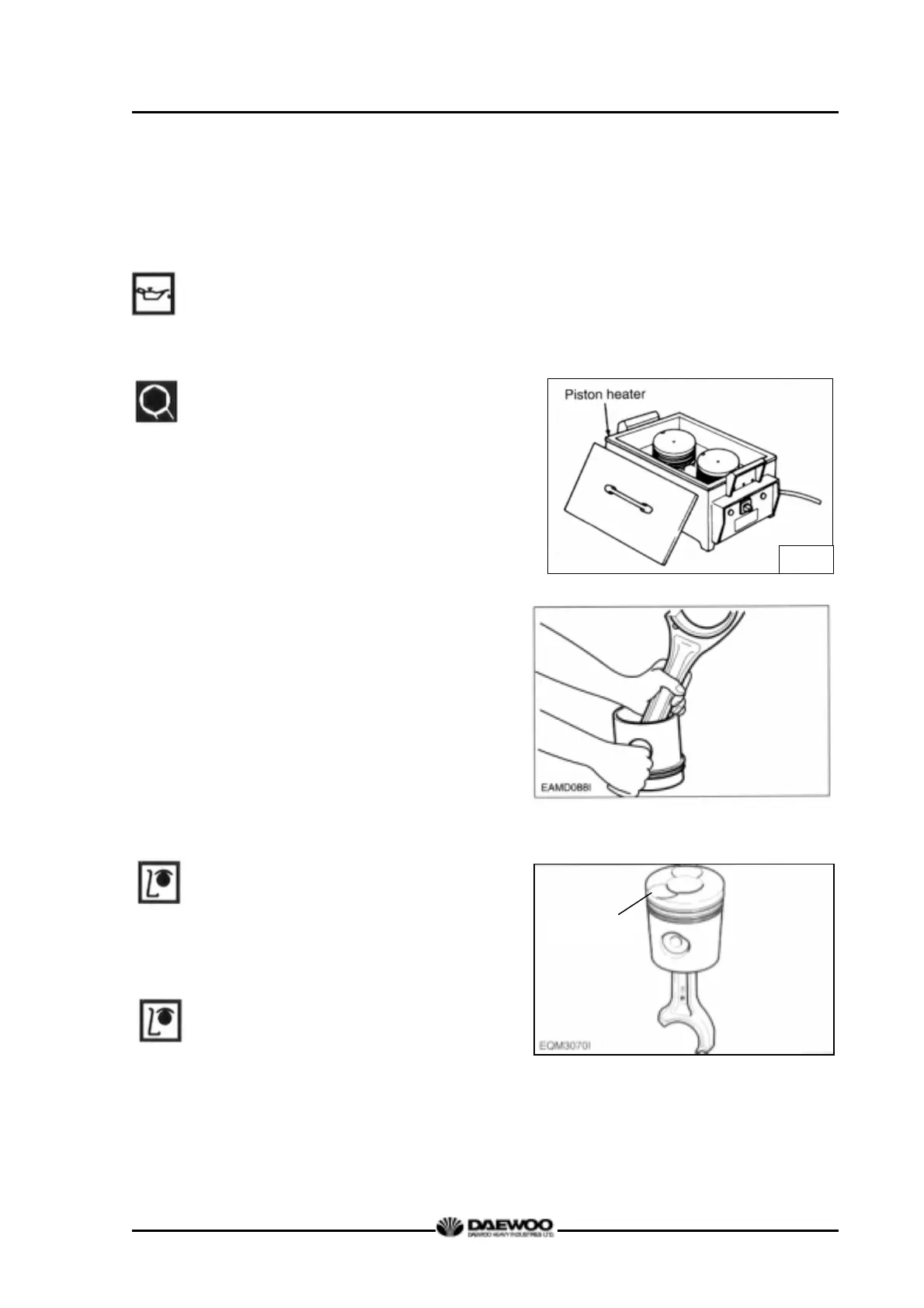

3.3.12. Piston and connecting rod
z Use a piston heater to heat the piston
approximately 100 °C (212 °F) for 5
minutes.
z Align the piston pin hole with the oiled
connecting rod small end and press
the piston pin (by lightly tapping with a
rubber hammer) to assemble the
connecting rod with the piston.
z Nothing the direction of the
piston,
make the longer side(machined with
key groove on the bearing) of the
connecting rod big end.
z On the piston head surface, the
longer
side connecting rod big end is in opposite
direction from the valve seating
surface as well as in the same
direction with the narrow margin of the
combustion chamber.
M1127
Valve seating
