D1146/D1146TI/DE08TIS
MAINTENANCE MANUAL
75
Printed in Jan. 2001 PS-MMA0415-E1A
specified torque.
Torque 18 kg.m

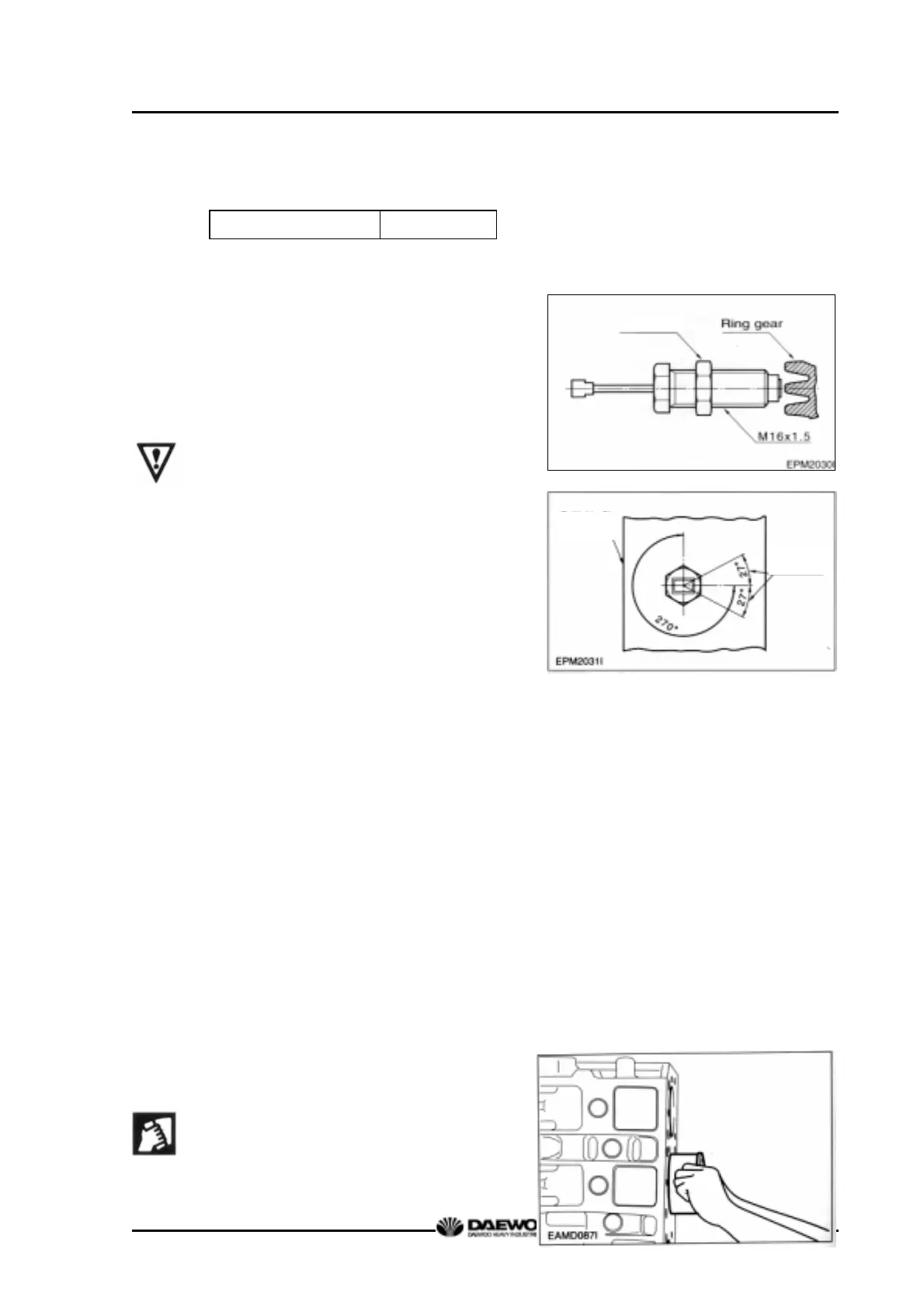

3.3.9. Magnetic pick-up sensor
z Move the lock nut to hexagonal side of
sensor completely.
z Rotate (Clockwise) the pick-up sensor on
fly wheel housing, until the end of it reach
on fly wheel ring gear.
z Then rotate (Counter clockwise) the
pick-up sensor for 270° (gap 1.0 mm)
and fix lock nut.
z Tolerance limit is 27°. (gap ± 0.1 mm)
3.3.10. Water chamber cover
z Coat the adhesive over the water
chamber cover (Particular around bolt
holes) and after attaching the gasket,
assemble it to the cylinder block using
the bolts for assembling.
z As for tightening of bolts, after primarily
tightening the bolts located at the both
ends of cover (4ea at both sides) and
middle bolts (Upper, lower 2ea) , tighten
the rest.
3.3.11. Cylinder liner
z Stand the cylinder block so that the
flywheel faces downward.
z Thoroughly clean the liner flange
fitting
surface and bore inside with
Flywheel
housin
Tolerance
limit
Lock nu
