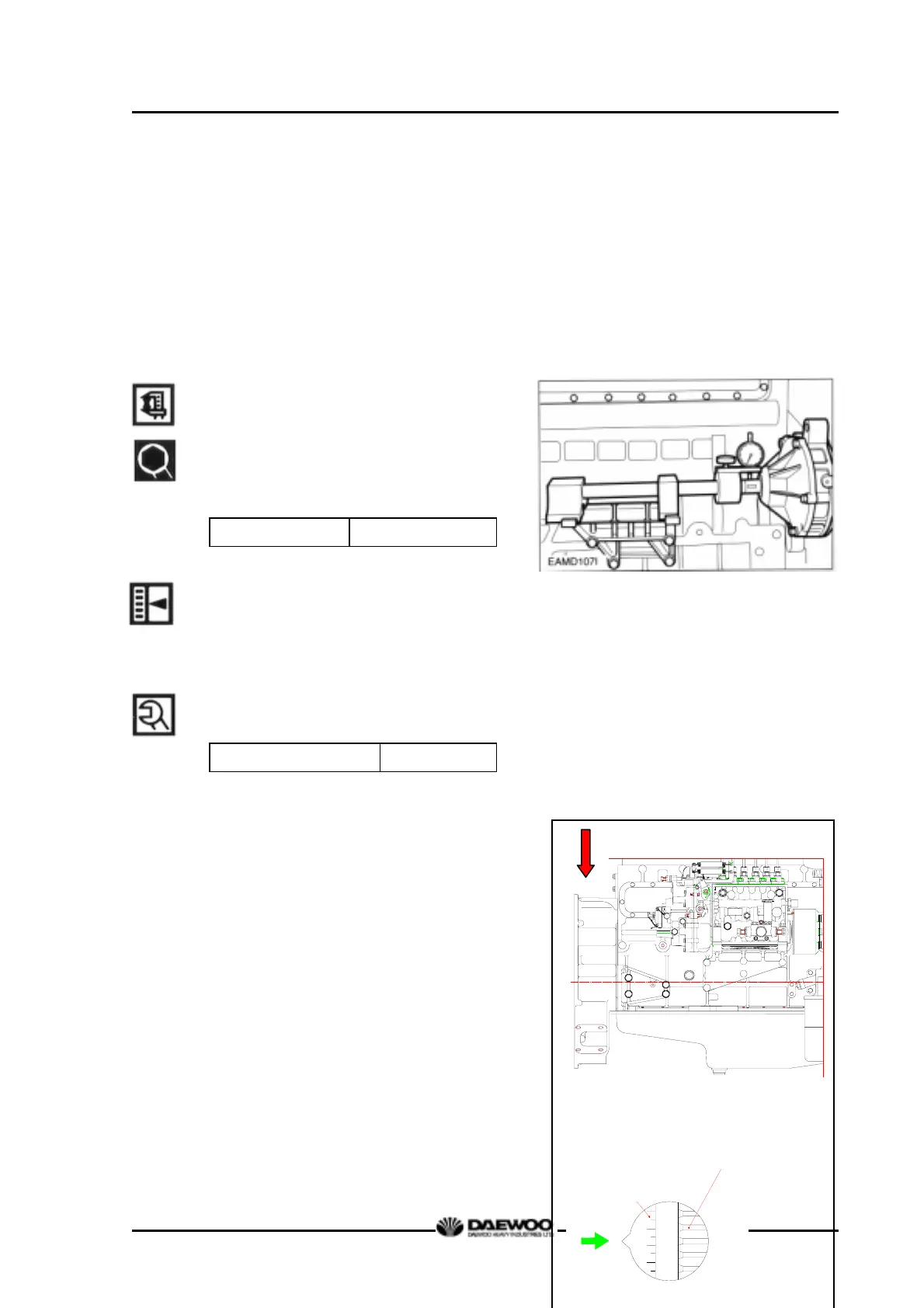

3.3.16. Fuel injection pump
z Install the injection pump bracket in the
cylinder block.
z After measuring the amount of run-out
with an alignment setting jig,
disassemble the bracket, adjust the
shims, then reassemble it.
Run-out
0.2 mm or less
z Mount the top/bottom adjusting shims
in the bracket and then mount the fuel
injection pump.
z Tighten the fixing bolts in a diagonal
sequence to specified torque.
Torque
4.4 kg.m
<Injection Timing Adjustment>
z Bring the piston of #1 cylinder to the
compression TDC (OT) by turning the
crankshaft. Again, turn 60° in the
reverse direction of engine rotation.
z Disassemble the fuel injection pipe that
connect the fuel injection pump and #1
injection nozzle.
z Disassemble the fuel injection pump
delivery valve holder, and after
removing the valve and valve spring,
again assemble the valve holder and
then, on it assemble the pipe of "U"
shape on it.
Timing
check hole
Flywheel
ring gear
Injection timing
notch mark
(Fly wheel)
