D1146/D1146TI/DE08TIS
MAINTENANCE MANUAL
83
Printed in Jan. 2001 PS-MMA0415-E1A

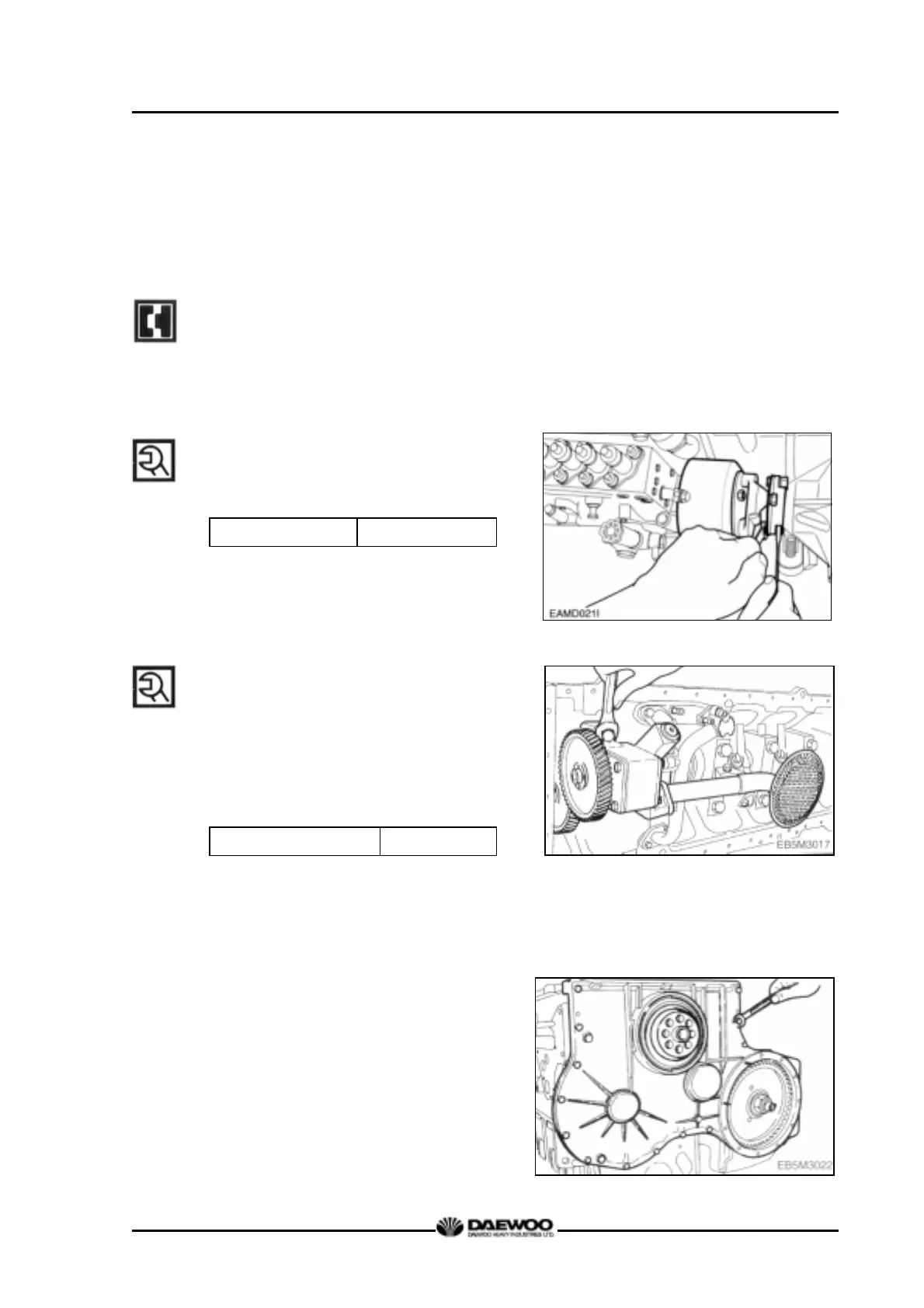

z Turn the coupling until the notch mark of
the indicator plate attached to the fuel
injection pump is aligned with the notch
mark of the coupling.
z Tighten the coupling fixing bolts and
nuts to specified torque.
Torque
6.0 ∼ 6.5 kg.m
z Install the oil delivery pipe and return
pipe.
3.3.17. Oil pump and oil pipe
z Install a dowel pin in the No.7 bearing
cap, then assemble the oil pump by
tapping lightly with urethane hammer.
z Tighten the assembling bolts with
specified torque.
Torque
4.4 kg.m
z Assemble the oil suction pipe with the
delivery pipe to oil pump by the bolts.
3.3.18. Timing gear case cover
z Install dowel pin on the timing gear
case.
z Mount a gasket by aligning the fixing
bolt holes with those on the gasket.
z Align the dowel pin with the cover pin
hole, then install the cover with light
tap.
z Tighten the fixing bolts beginning with
To Next Page
