D1146/D1146TI/DE08TIS
MAINTENANCE MANUAL
84
Printed in Jan. 2001 PS-MMA0415-E1A
the oil pan fitting face.
CAUTION :
In the assembling, be careful not to be
damaged by the crankshaft.

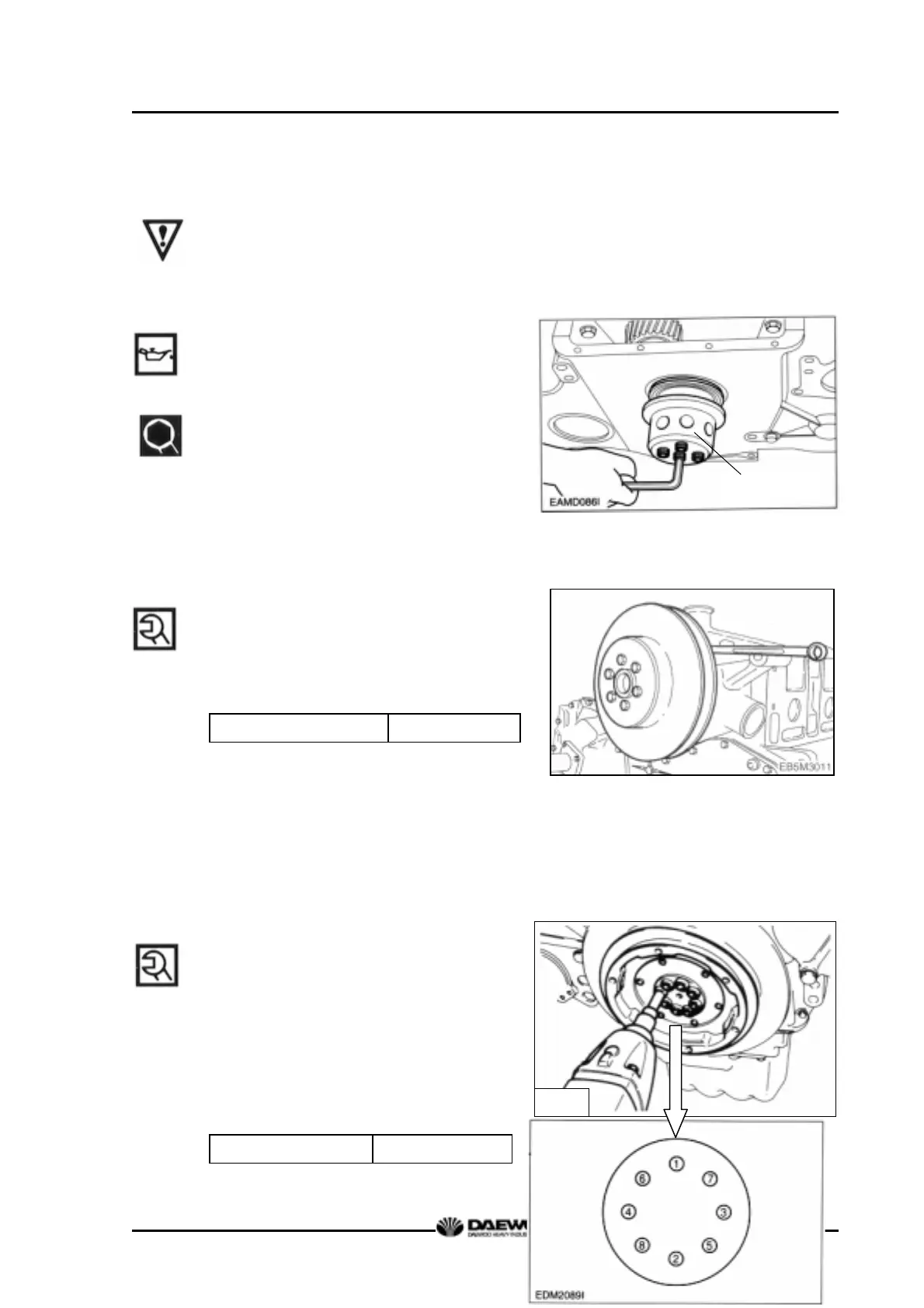

3.3.19. Front oil seal
z Apply lubricating oil to the outside of the
oil seal and the oil seal hole of the
timing gear case cover.
z Put the new oil seal on the oil seal
hole of timing gear case cover aligning
the center of them, then assemble the
oil seal using an oil seal fitting jig.
3.3.20. Water pump
z Mount a new gasket.
z Install the water pump on the cylinder
block and tighten the assembling bolts
with specified torque.
Torque
2.2 kg.m
z Connect water pipes and by-pass pipe
to the water pump.
z Connect a water pipe to the expansion
tank.
3.3.21. Vibration damper
z Insert the vibration damper to the
crankshaft, and assemble by
tightening the assembling bolts at the
specified tightening torque according
to bolt tightening order. (refer to right
figure.)
Torque
13 kg.m
M1047
Oil seal fitting jig
