Daewoo DHC-XD350 - Connecting to Speaker; Display

4. Connecting to Equipment
-. Connecting to Speaker
-. Connecting to Recording Equipment
11
DHC-XD350

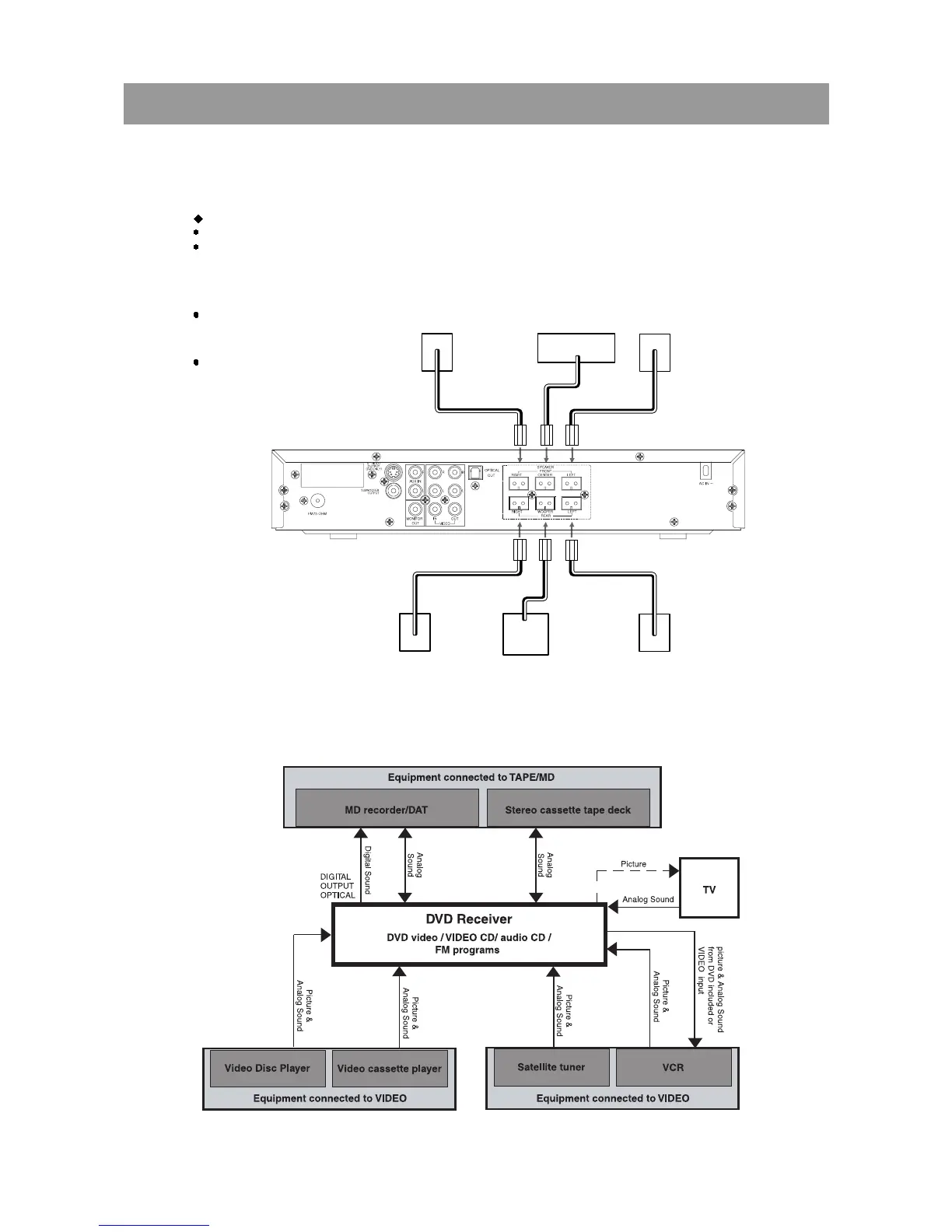

Before connecting
Refer also to the instruction manuals of the speakers.
This machine is designed to reproduce optimum sound quality when speakers with the specified impedance below are
connected.Please check the following information and choose speakers with appropriate impedance for the connections.
Front speakers / Center speaker / Surround Speakers : 8 ohms min. per speaker
Subwoofer speaker : 8 ohm min
Surround speakers
Surround speakers
Center speaker
Woofer speaker
Front speakers
Left ch.
Front speakers
Right ch.
Left ch.
Right ch.
To prevent damage to circuits, never short-
circuit the positive (+) and negative
(-) speaker wires.
Do not connect the speaker cable to the L
and R connectors at the same time and do
not connect more than one speaker to the
same speaker connectors.
RED BLUE
GREEN
GRAY
ORANGE
BROWN
