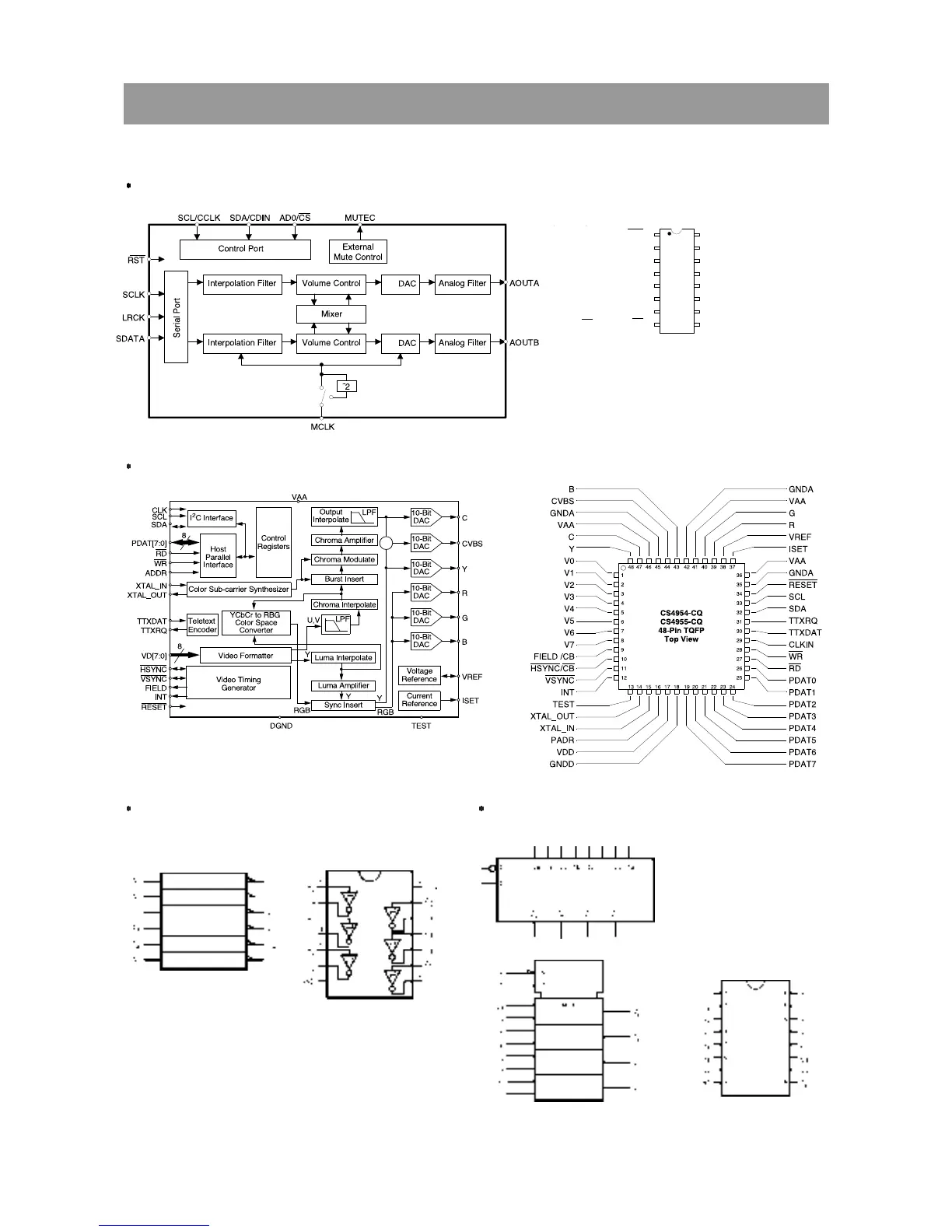

8. Internal Block Diagram of ICs
DHC-XD350
CS4341
CO
152
143
134
161
116
107
98
125
Reset RST MUTEC Mute Control
Serial Data SDATA AOUTA Analog Output A
Serial Clock SCLK VA Analog Power
ft/Right Clock LRCK AGND Analog Ground
Master Clock MCLK AOUTB Analog Output B
SCL/CCLK SCL/CCLK REF_GND Reference Ground
SDA/CDIN SDA/CDIN VQ Quiescent Voltage
AD0/CS
AD0/CS FILT+ Positive Voltage Reference
CS4955
74VHC14
IEEE/IEC
27
74VHC157
