022-00028AE Operation and Maintenance Manual Inspection, Maintenance and Adjustment 4-25
2. Steering cylinder head ends, 2 locations.
Use remote grease fittings mounted on
frame.(1,2 Figure 46).
GREASE UPPER AND LOWER CENTER PINS
1. Center pins, Upper (Figure 47) and Lower (Figure 48). Two locations on each side of machine.
CHANGE ENGINE OIL AND FILTER
NOTE:
Engine oil and filter must be changed after first 50 hours of operation to comply with new
machine break-in requirements. After first change, oil and filter should be changed every
250 hours. Follow procedure under 250 hour maintenance interval. (See page 4-25)
HYDRAULIC FULL FLOW FILTER REPLACEMENT
NOTE:
Replace hydraulic full flow filter after first 50 hours of operation and every 250 Hours
thereafter. Follow procedure under 250 hour maintenance interval (See page 4-30)
CHECK WATER PUMP BELT TENSION
1. Water pump belt tension must be checked after first 50 hours of operation to comply with new
machine break-in requirements. After first check, water pump belt must be checked every 250 hours.
Follow procedure printed under 250 hour maintenance interval “Check Water Pump Belt Tension” on
page 4-32.
Reference
Number
Remote Grease
Fittings
1 and 2
50 Hours
Steering Cylinder
Head Ends
3
250 Hours
Drive Shaft
Center Bearing

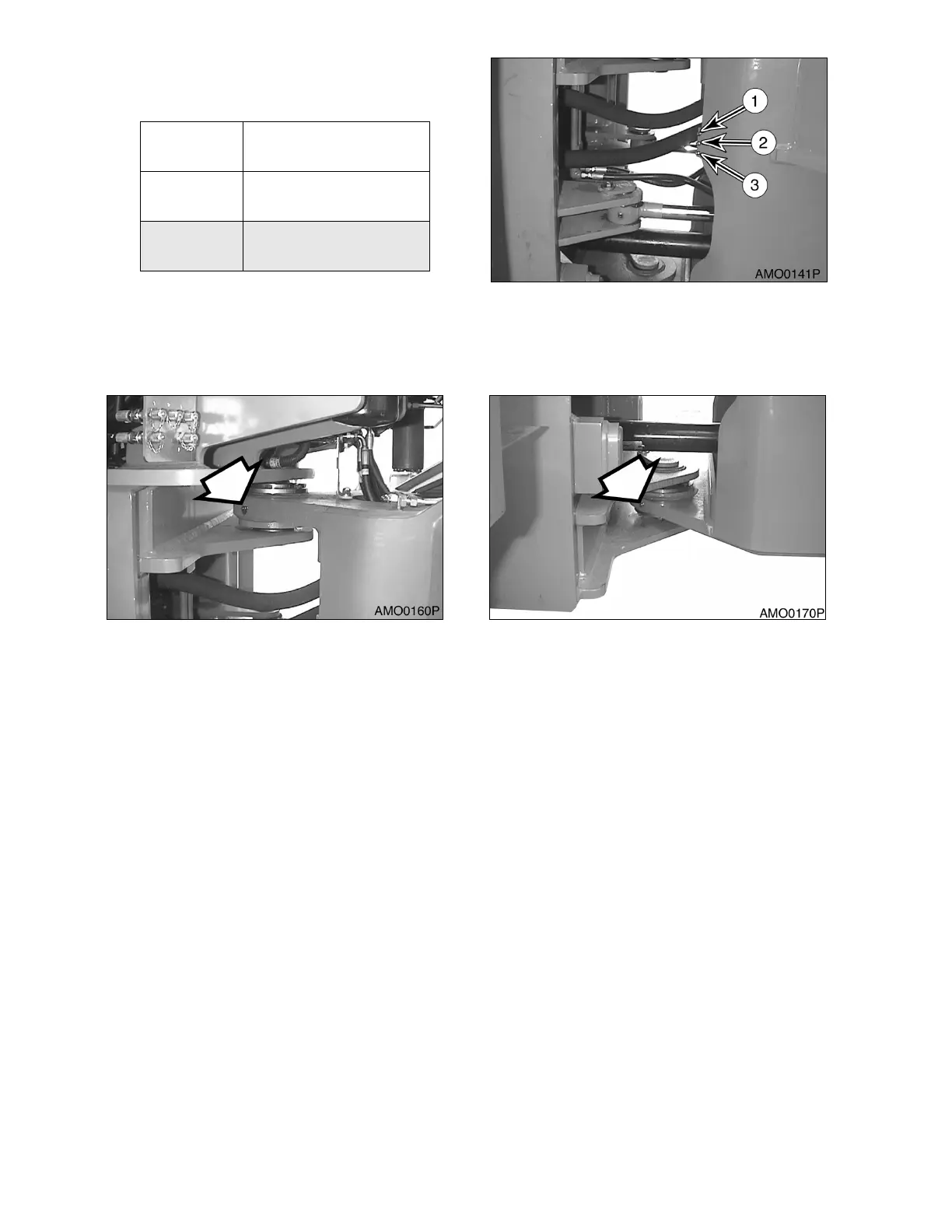

Figure 46
Figure 47 Figure 48
To Next Page
