4-24 Inspection, Maintenance and Adjustment 022-00028AE Operation and Maintenance Manual
B: Bucket lever connecting pins, 2
locations. Lever link connecting pins,
2 locations. Bucket cylinder rod ends,
2 locations. (Figure 42)
C: Bucket cylinder heads, 2 locations.
Arm lever connecting pins, 2
locations. Lever link connecting pins,
2 locations. (Figure 43)
Link foot pins, 2 locations.
D: Lift cylinder heads (left, right), 2
locations. Lift cylinder rod ends, 2
locations. (Figure 44)
GREASE STEERING CYLINDER ROD AND
HEAD ENDS
1. Steering cylinder rods, 2 locations, one on
each side of machine.

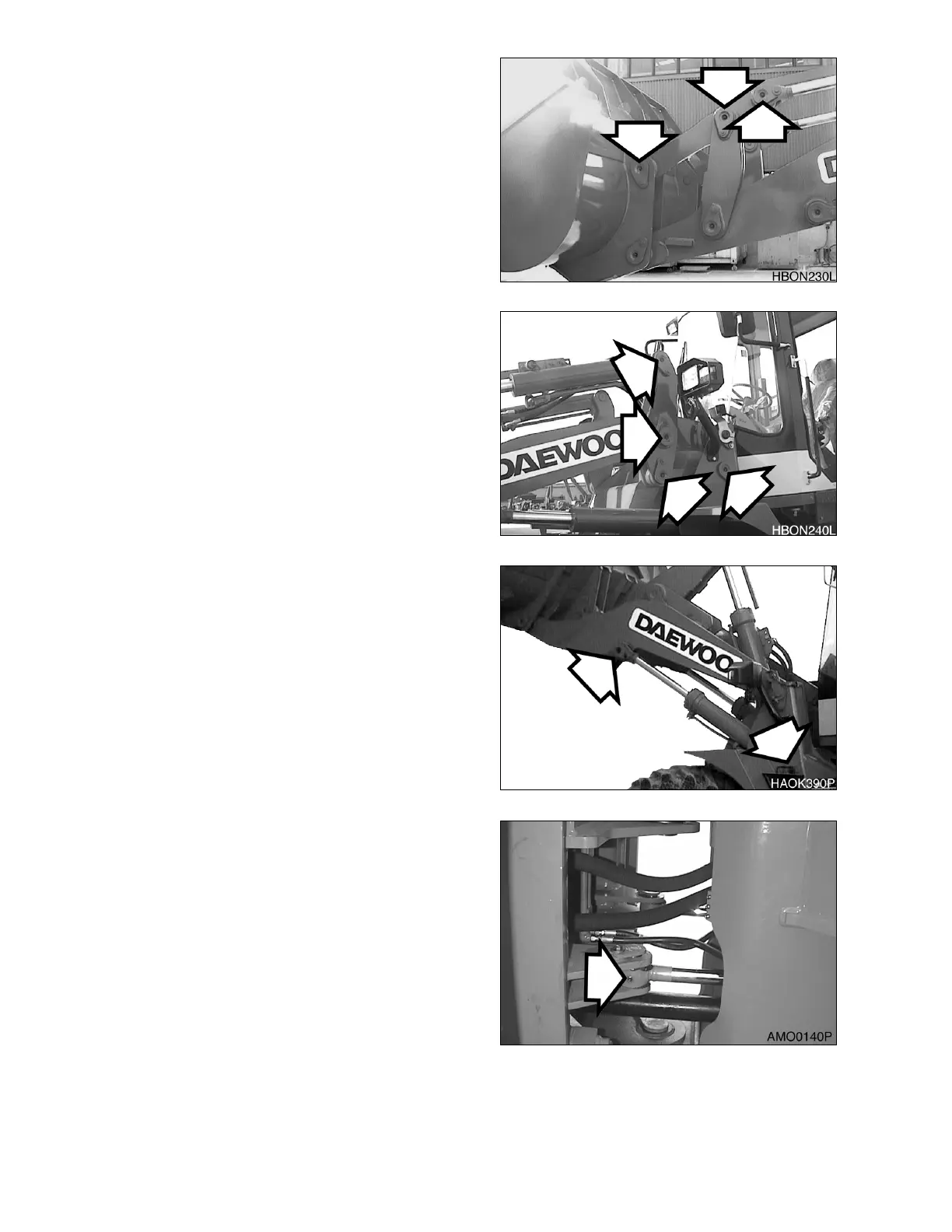

Figure 42
Figure 43
Figure 44
Figure 45
