3-16 Operation K1000896E Operation and Maintenance Manual

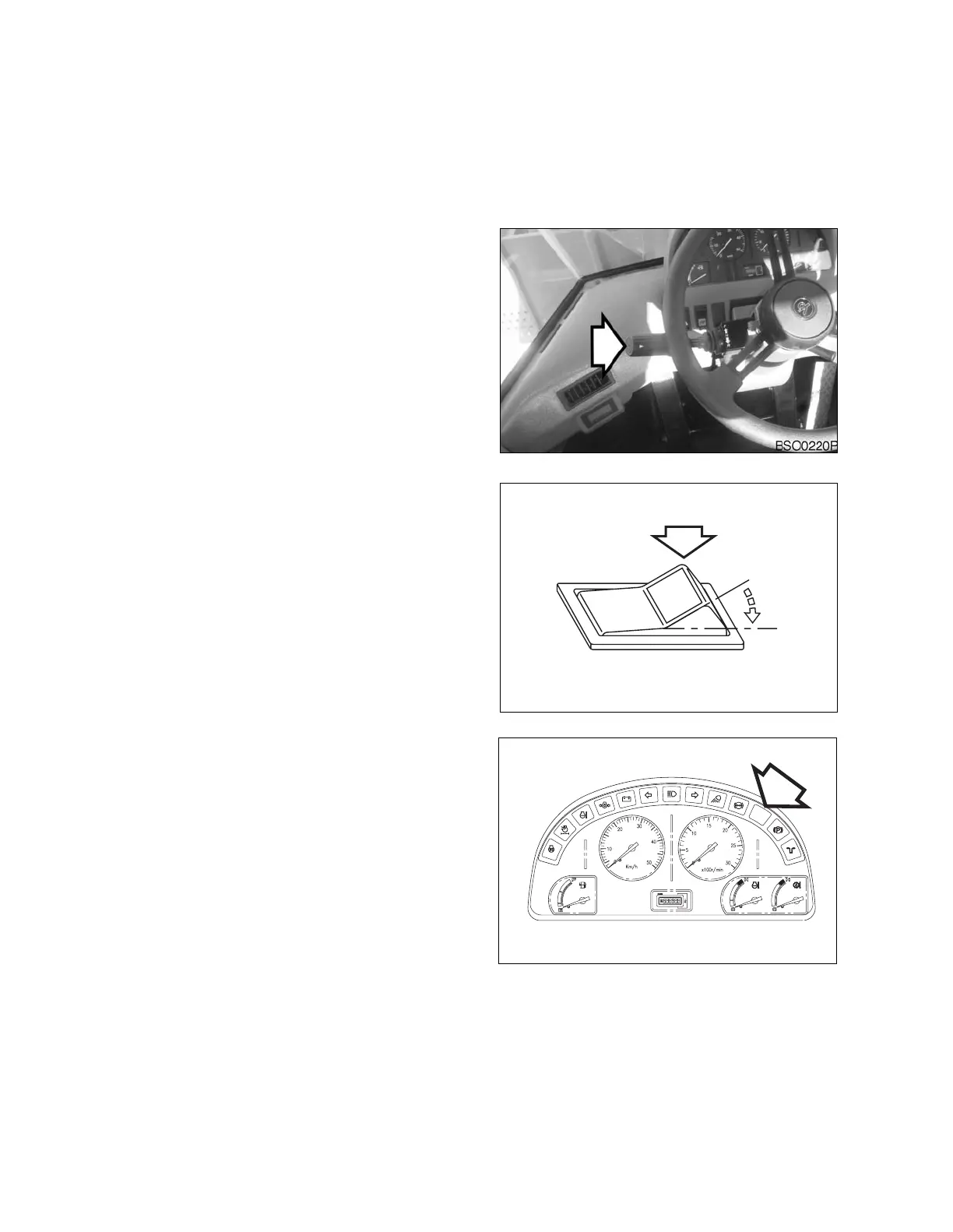

F/R (FORWARD/REVERSE) TRAVEL CONTROL
SYSTEM (OPTION)
An optional F/R (Forward/Reverse) travel control system can be installed as an option on the machine.
With this system installed, the operator's left-hand can remain on the steering wheel during operation, and
not have to manually move the transmission lever between forward and reverse.
To activate system perform the following steps:
1. Place transmission lever in "NEUTRAL."
NOTE: Do not move the transmission
lever out of "NEUTRAL." If the
lever is moved, the system will
be deactivated.
2. Press F/R selector switch to the "I"
position, and then release. The switch will
return to the "O" position, but the system
will be activated. When system is
activated, the F/R selector indicator light
(Figure 39) will be turned "ON."
Figure 37
BSO0400L
O
I
F/R
Figure 38
BSO0032L
F/R
Figure 39
