2-40 Operating Controls K1000896E Operation and Maintenance Manual
HEATER AND AIR CONDITIONER OPERATION

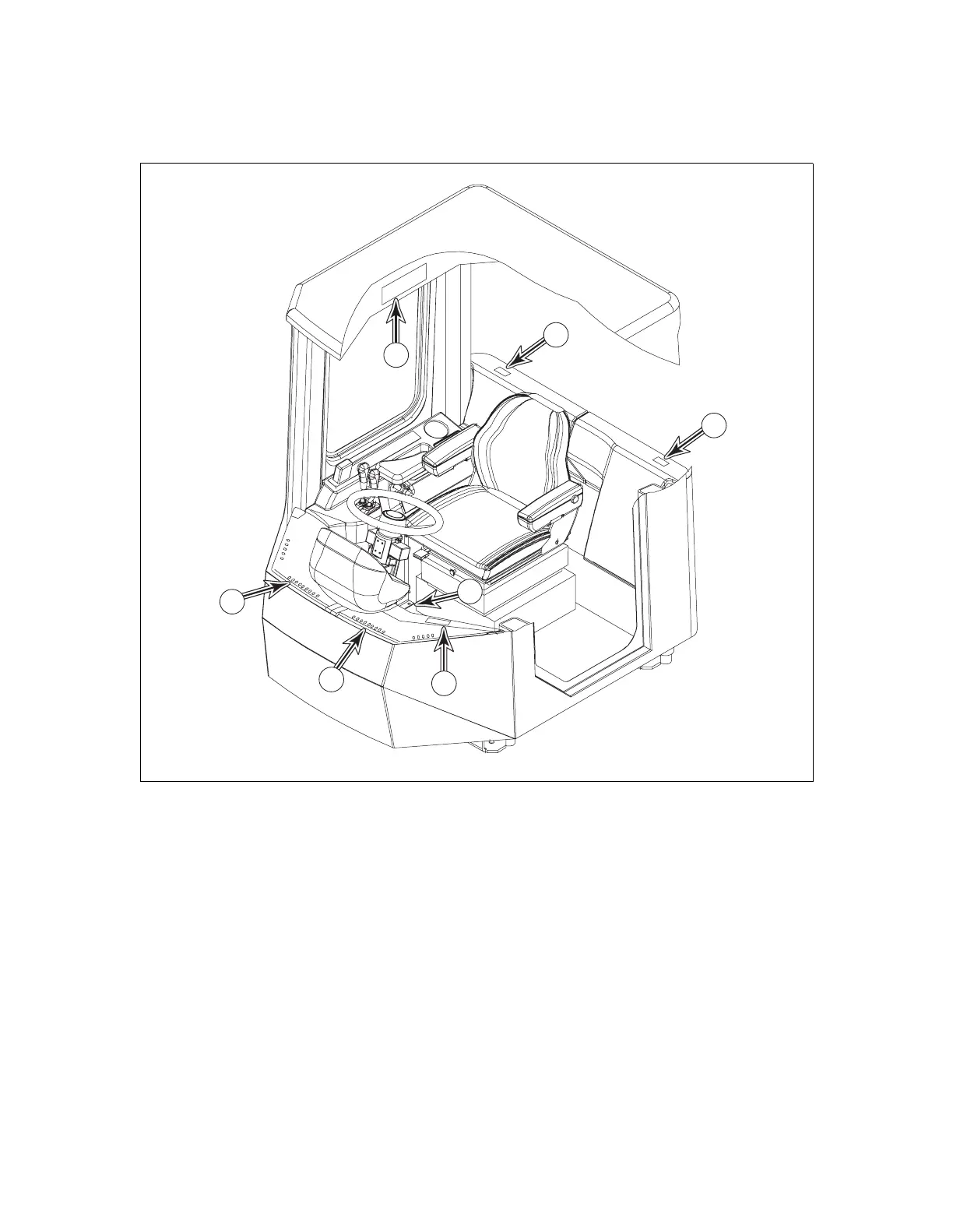

LOCATION OF CONTROLS AND VENTS
1. OPERATION PANEL
2. FRONT NOZZLE (AIR CONDITIONER)
3. FRONT NOZZLE (DEFROSTER)
4. FOOT NOZZLE
5. REAR NOZZLE
The heater and air conditioner are combined into one unit to the right side of the operator's seat. If
necessary, the operator can control inner temperature using the operation panel.
BSO0120L
5
5
1
2
3
3
4
Figure 80
