2-52 Operating Controls K1000896E Operation and Maintenance Manual
DOOR SIDE LATCH

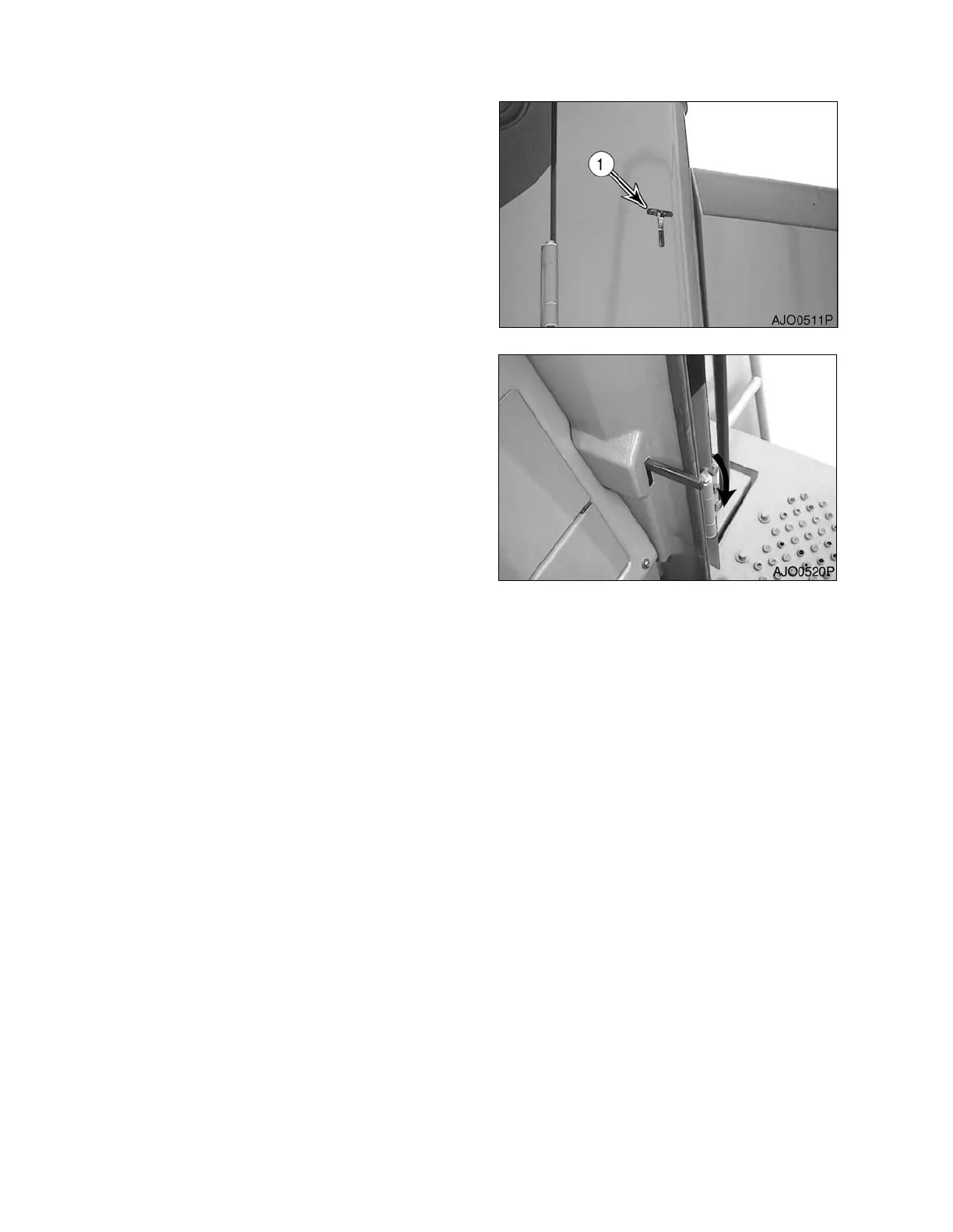

1. The door side latch (1, Figure 102) is used
to secured the door to the side of the cab
when it is opened.
NOTE: Keep the door closed and
locked when machine is not in
use.
2. To release door from side of cab, push the
latch lever (Figure 103) down. The latch
lever is to the left of the operator's seat.
Figure 102
Figure 103
