K1000896E Operation and Maintenance Manual Operating Controls 2-25
RIGHT SIDE SWITCH PANEL
1. PILOT CONTROL VALVE LEVER
(JOYSTICK) (See page 2-34)
2. KICK-DOWN SWITCH
3. HORN BUTTON
4. CIGAR LIGHTER
5. HEADLIGHT SWITCH
6. FRONT WORK LIGHT SWITCH
7. REAR WORK LIGHT SWITCH
8. REAR WIPER SWITCH
9. ROTATING BEACON LIGHT SWITCH
(OPTION)
10. CUP HOLDER
11. PARKING BRAKE SWITCH
12. PILOT CUTOFF SWITCH
13. TRANSMISSION CUTOFF SWITCH
14. AUTOMATIC TRANSMISSION SWITCH
15. EMERGENCY STEERING TEST SWITCH
(OPTION)
16. F/R (FORWARD/REVERSE) SELECTOR
SWITCH (OPTION)
17. F/R (FORWARD/REVERSE) CONTROL
SWITCH (OPTION)
5 7 12 13 15 16
617 8 11 14 9 4 10
3
2
1
BSO0151L
F/R
F
R

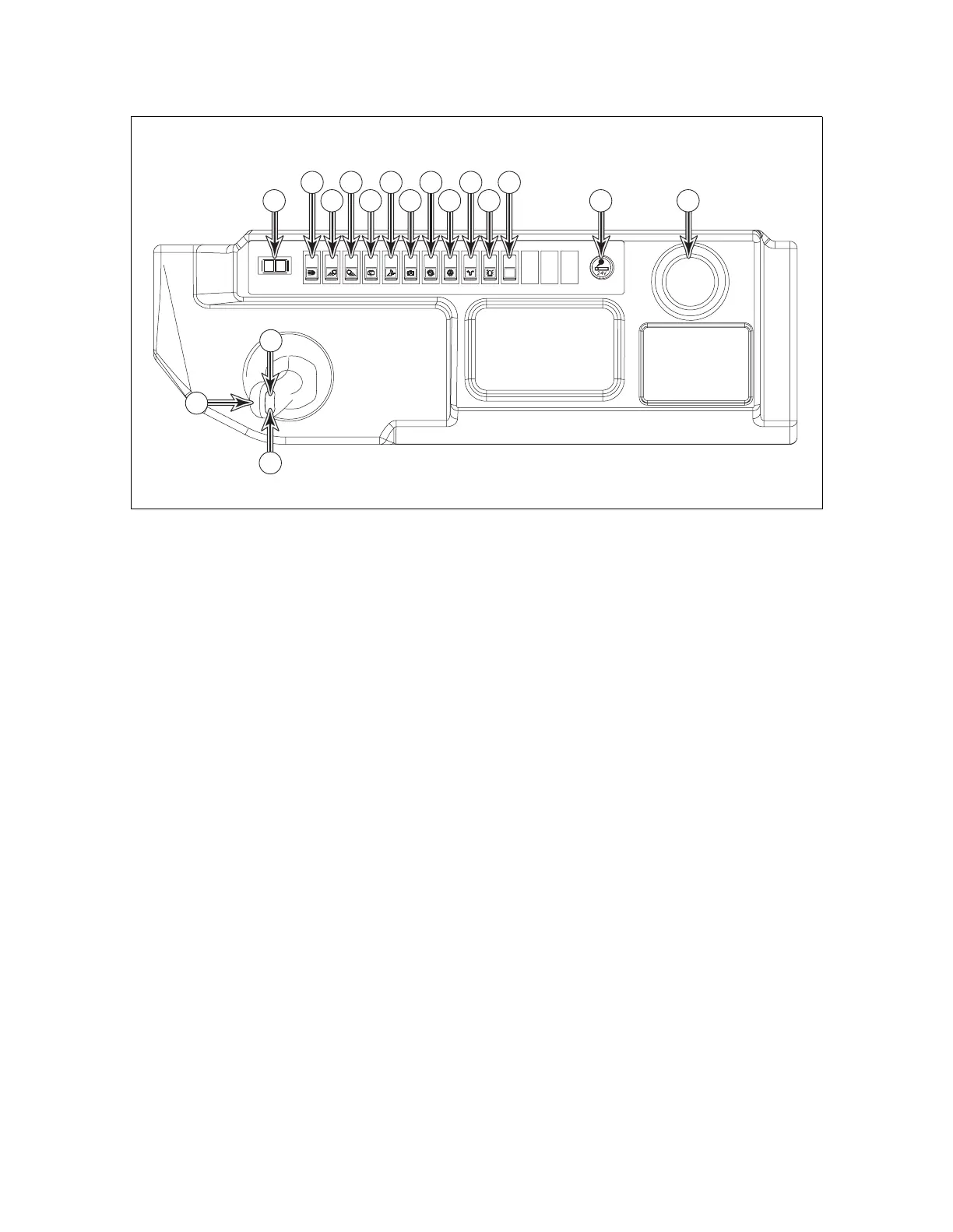

Figure 47
