K1000896E Operation and Maintenance Manual Inspection, Maintenance and Adjustment 4-5

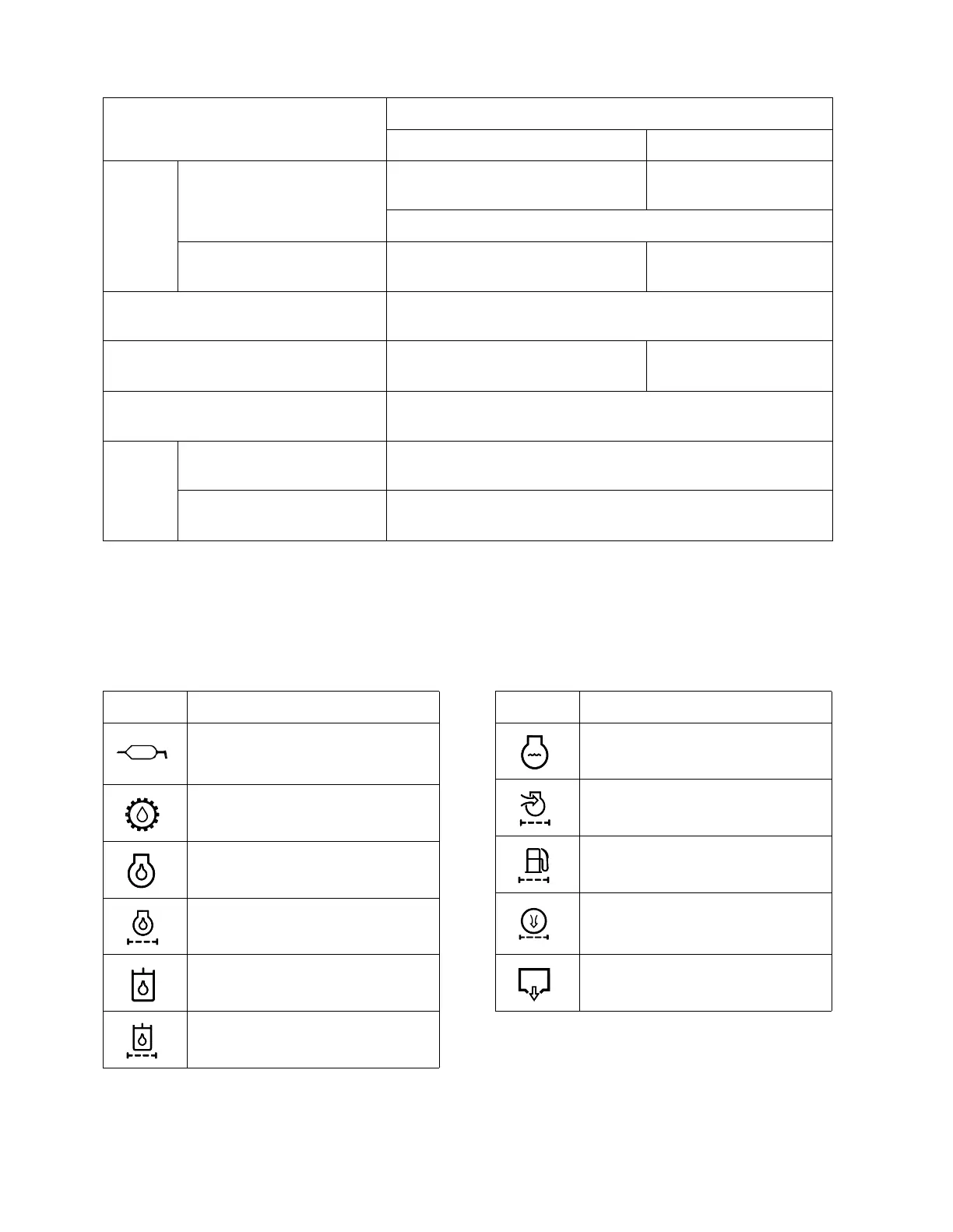

FLUID CAPACITIES
LUBRICATION AND SERVICE CHART
Lubrication and service chart is on the inside of battery box cover. The symbols shown here are used in the
lubrication and service chart on the next page.
Component
Capacity
S/N 3001 thru 4000 S/N 4001 and Up
Engine
Oil Pan with Filter
21 liters
(5.5 U.S. gal.)
25.4 liters
(6.7 U.S. gal.)
NOTE: The filter holds an additional 1 liter (1 qt) of oil.
Cooling System
50 liters
(13 U.S. gal.)
31 liters
(8 U.S. gal.)
Fuel Tank
270 liters
(71.3 U.S. gal.)
Hydraulic Oil Tank
195 liters
(52 U.S. gal.)
166 liters
(44 U.S. gal.)
Transmission
27 liters
(7.1 U.S. gal.)
Axles
Front Axle
31 liters
(8.19 U.S. gal.)
Rear Axle
24 liters
(6.34 U.S. gal.)
Symbol Description
Lubrication
Gear Oil (Swing Device, Travel
Reduction Device)
Engine Oil
Engine Oil Filter
Hydraulic Oil
Hydraulic Oil Filter
Coolant
Air Cleaner Filter
Fuel Filter
Air Conditioner Filter
Drain Water
Symbol Description
To Next Page
