4-40 Inspection, Maintenance and Adjustment K1000896E Operation and Maintenance Manual
CLEAN AIR CONDITIONER FILTER
The unit is equipped with an air filtration system which filters out dirt and dust particles from air being
circulated into operator's cab. The air conditioner filter is in the right side switch panel console.
1. Open access cover on the lower right side
of cab on the outside to gain access to
filter.
2. Remove filter and inspect it for damage.
3. Use compressed air to clean filter. If
element is very dirty use a mild soap and
water solution to clean it.
NOTE: If water was used to clean filter
be sure it is completely dry
before installation.
NOTE: This filter should be cleaned out
every 500 hours and replaced
with a new one every 1,000
hours.
NOTE: In the event that the unit is
being operated in a dusty
environment, the cleaning and
replacement should be
performed more frequently.
WARNING!
All service and inspection of the air-conditioning system should be performed with the
starter switch in the "O" (OFF) position.

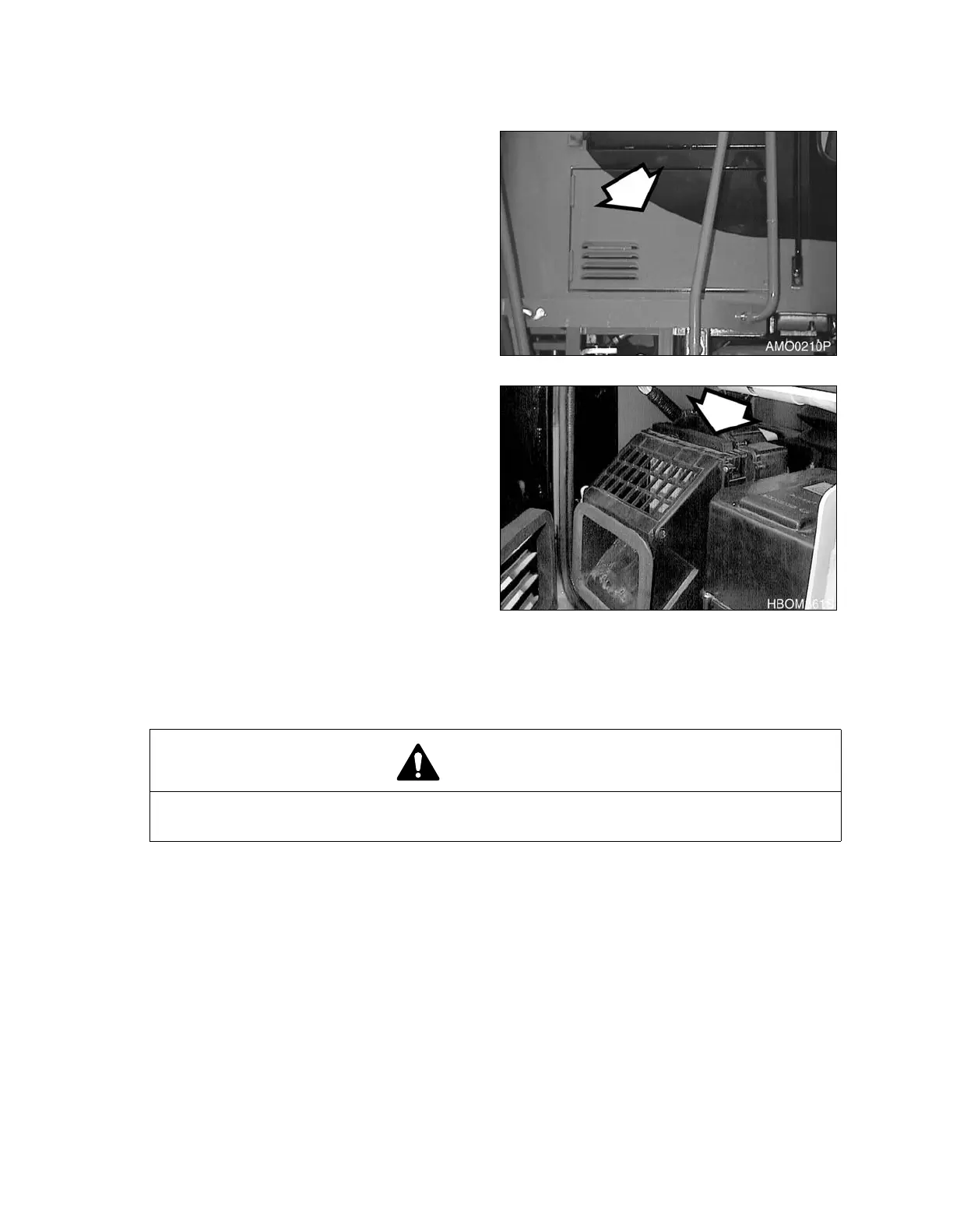

Figure 70
Figure 71
