12. PILOT CUTOFF SWITCH
O. In this position the operator cannot
operate the pilot control valve lever
(joystick).
I. In this position the operator can fully
control the movement of the pilot
control valve lever (joystick).
13. TRANSMISSION CUTOFF SWITCH
This switch changes the mode of the brake
pedal from "INCHING" to "NO INCHING."
O. In this position, the "NO INCHING"
mode is selected.
In the "NO INCHING" mode, the
power transmission line is still
connected when the brake pedal is
pressed, thus, making it easier to
start off on an incline. This mode is
also suitable for traveling, because
both engine braking and the service
brake can be used in descending
grades.
I. In this position, the "INCHING" mode is selected.
In this mode, the transmission is put in "NEUTRAL" by pressing the left brake pedal. This mode
is suitable for load handling operation. When the accelerator pedal is pressed under this
condition, more power is concentrated on the load handling system, to quicken the boom lifting
speed.
NOTE: 1) Transmission "CUTOFF" function dose not operate at 3rd and 4th gear for protection of
transmission.
2) Despite transmission "CUTOFF" switch, the right brake pedal has braking function only.
CAUTION!
When driving or parking, the pilot
cutoff switch should be changed to
"O" position.
WARNING!
When pressing brake pedal while traveling or working on a slope, set this switch to "O" for
engine brake.

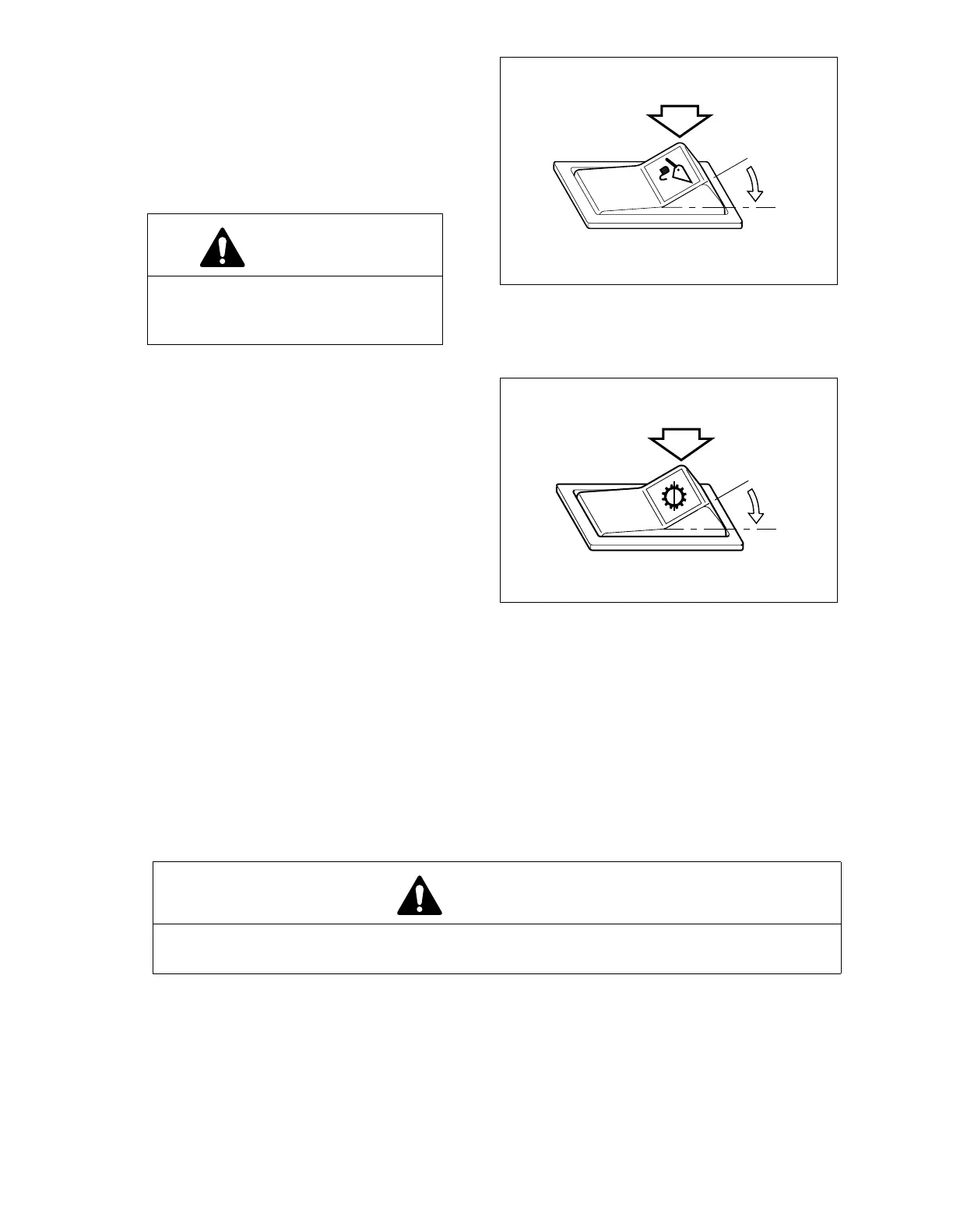

HBOI110L
O
I
Figure 61
Figure 62
O
I
HA3O2018
