K1000896E Operation and Maintenance Manual Operating Controls 2-33
16. F/R (FORWARD/REVERSE) SELECTOR
SWITCH (OPTION)
O. In this position, the F/R control switch
is "OFF."
I. In this position, the F/R control switch
is activated. When released the
switch returns to the "O" position, but
the system is still activated.
NOTE: 1) When activating system, the
transmission lever and F/R
control switch must be in
"NEUTRAL."
2) If the transmission lever is
actuated (moved), the gearshift
functions of the F/R control
switch are deactivated, and
forward/reverse travel is again
controlled by the transmission
lever.
3) If the starter switch is "OFF," the gearshift functions of the F/R control switch are
deactivated.
NOTE: See “F/R (Forward/Reverse) Travel Control System (Option)” on page 3-16 for further
information.
17. F/R (FORWARD/REVERSE) CONTROL
SWITCH (OPTION)
To be able to use the forward/reverse
function, the F/R selector switch must first
be depressed. When the switch is
activated, the F/R selector indicator light
be turned "ON" in the instrument panel.
O. In this position, the machine is in
"NEUTRAL."
I. In this position, the machine travels
"FORWARD."
II. In this position, the machine travels
in "REVERSE."
NOTE: If the transmission lever is moved out of "NEUTRAL" while operating the F/R control
switch, the transmission lever will override the switch.
The F/R control switch system will require, that the F/R selector switch be pressed again,
with the transmission lever in "NEUTRAL."
NOTE: See “F/R (Forward/Reverse) Travel Control System (Option)” on page 3-16 for further
information.

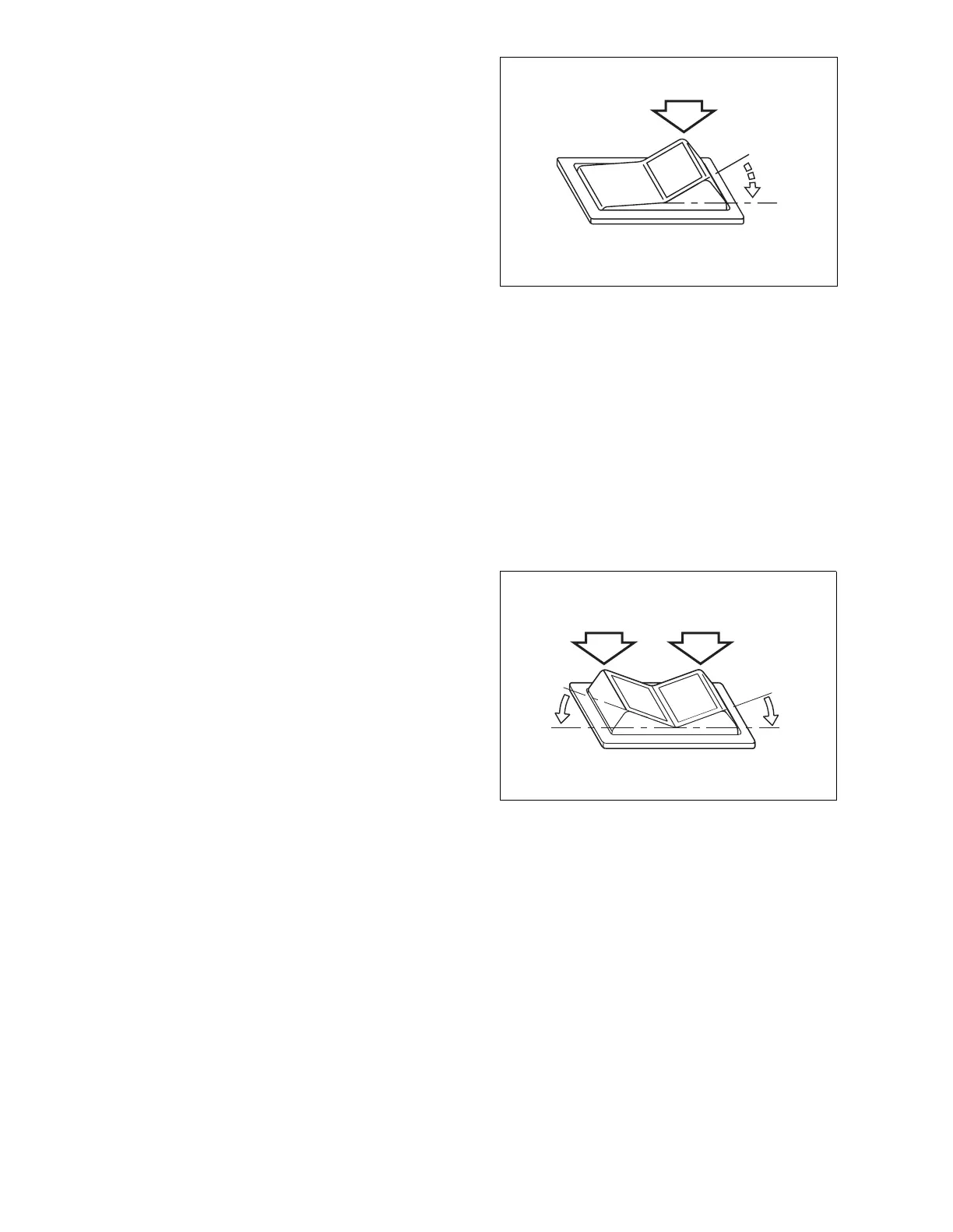

BSO0400L
O
I
F/R
Figure 65
BSO0410L
O
O
I
II
F
R
Figure 66
