2-38 Operating Controls K1000896E Operation and Maintenance Manual
5. STORAGE BOX

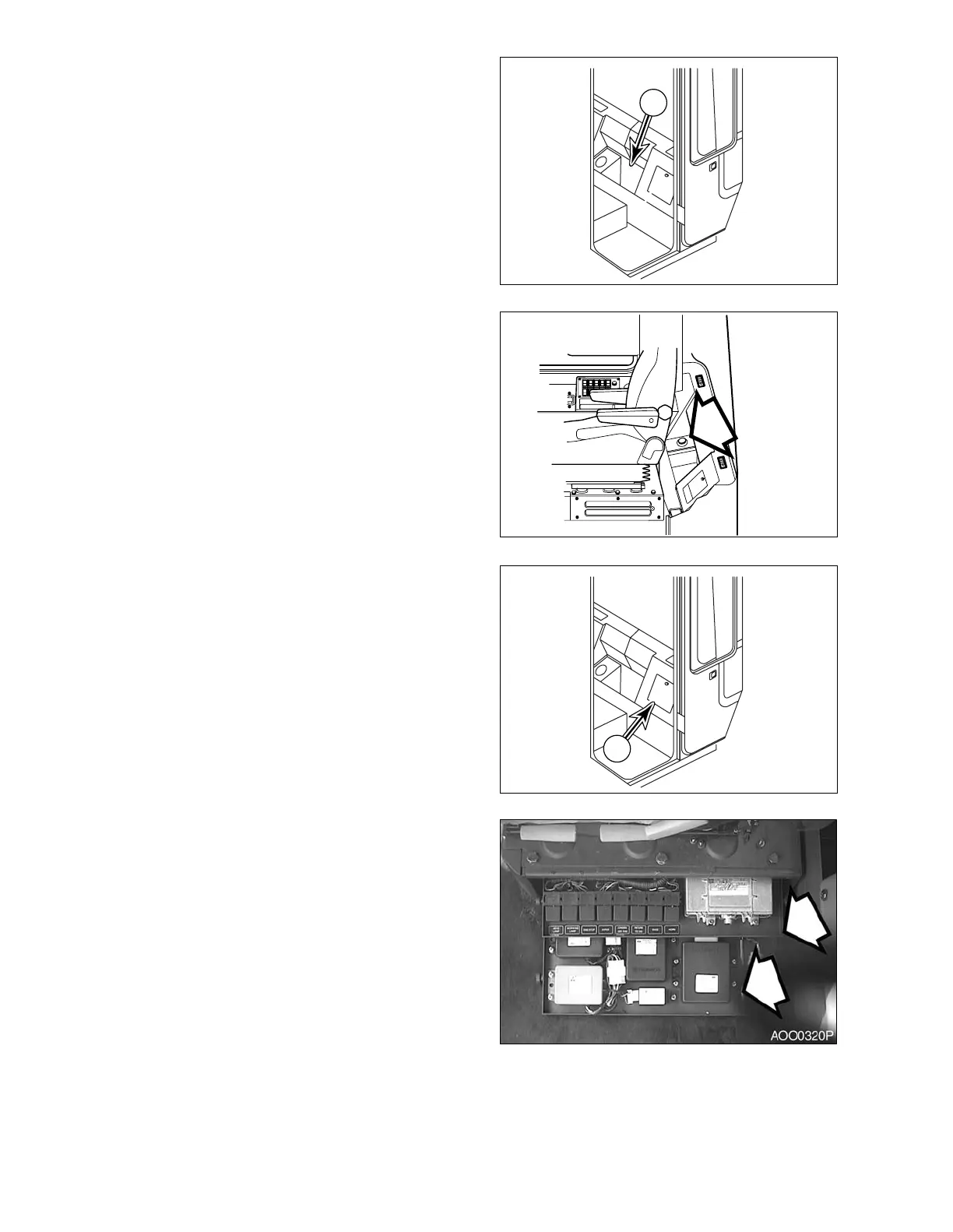

There is a storage box (1, Figure 74)
behind the seat. Keep the operation
maintenance manual and other documents
in this compartment.
6. WASHER TANK
Contains windshield washer fluid.
7. HOT/COLD REFRIGERATOR
There is a hot/cold refrigerator (1, Figure
76) behind and to the left of the seat. Air
conditioner and heating unit must be
operated after starting the engine for this
function. Keep the cover close for proper
function.
8. ELECTRICAL BOX
Under the seat are two pullout trays that
contain relays for unit. (See “Fuse Box/
Relay” on page 2-53.)
1
HBOI431L
Figure 74
HBOM680I
Figure 75
1
HBOI432L
Figure 76
Figure 77
