K1000896E Operation and Maintenance Manual Operating Controls 2-55

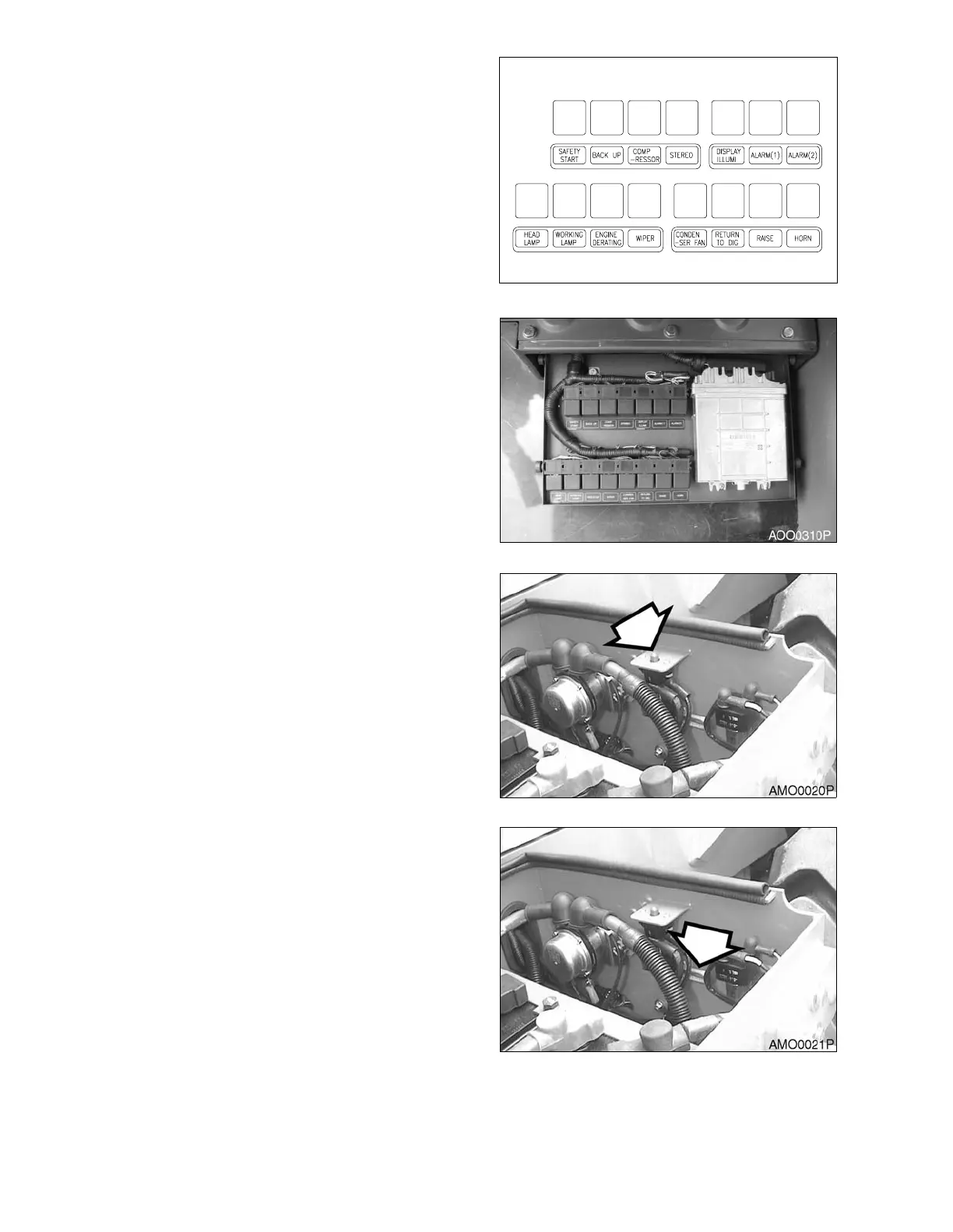

RELAY
The relays are in the electrical box under the
seat. If the problem is not solved after replacing
the fuse, check the function of the relay.
CIRCUIT BREAKER
A circuit breaker is next to the relay by the
batteries at back of unit under engine
compartment hood. When a short circuit or an
overload occurs, the circuit breaker
automatically cuts off current, thus preventing
electrical wires from burning.
FUSIBLE LINK
A fusible link (Figure 110) is in the battery box.
If the engine does not crank, first check that the
starter switch is turned "ON" and that no power
is available (No indicator lights will light.). Check
that the "A" portion (Figure 111) of the fusible
link is not broken or burned through. Replace
the fusible link if damage and investigate cause.
APO0210L
Figure 107
Figure 108
Figure 109
Figure 110
