Adjusting the Handlepost Hinges
ECO RADIUS RADIUS V

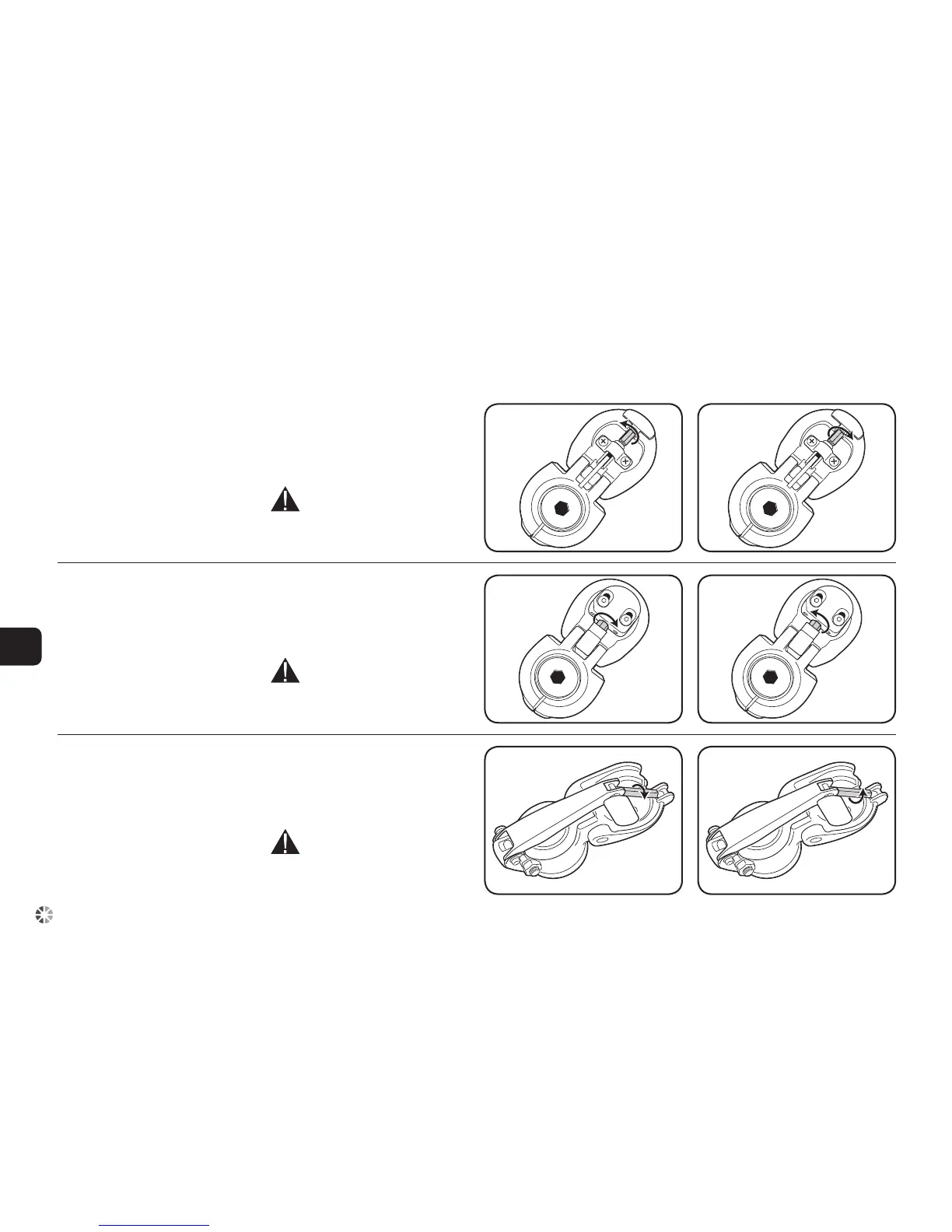

TIGHTEN: Turn the latch bolt as
indicated by the arrow.
LOOSEN: Turn the latch bolt as
indicated by the arrow.
The Radius V can be adjusted
(tightened or loosened) with a
6 mm wrench. An adjustable
wrench or small pliers can
be used if a 6 mm wrench is
unavailable.
NOTE: Adjust in small (1/16) turn increments to avoid over
tightening or over loosening the hinge.
The Radius hinge can be
adjusted (tightened or loos-
ened) with an 8 mm wrench.
An adjustable wrench or small
pliers can be used if an 8 mm
wrench is unavailable.
The Eco Handlepost Hinge
can be adjusted (tightened
or loosened) with a 6 mm
wrench. An adjustable wrench
or small pliers can be used if a
6 mm wrench is unavailable
Adjust the latch bolt until the latch
opens and closes with 29~49 N of
force.
WARNING: If the hinge is
over tightened the tension
can cause damage to the hinge.
Adjust the latch bolt until the latch
opens and closes with 29~49 N of
force.
WARNING: If the hinge is
over tightened the tension
can cause damage to the hinge.
Adjust the latch bolt until the latch
opens and closes with 29~49 N of
force.
WARNING: If the hinge is
over tightened the tension
can cause damage to the hinge.
