User’s Manual
8

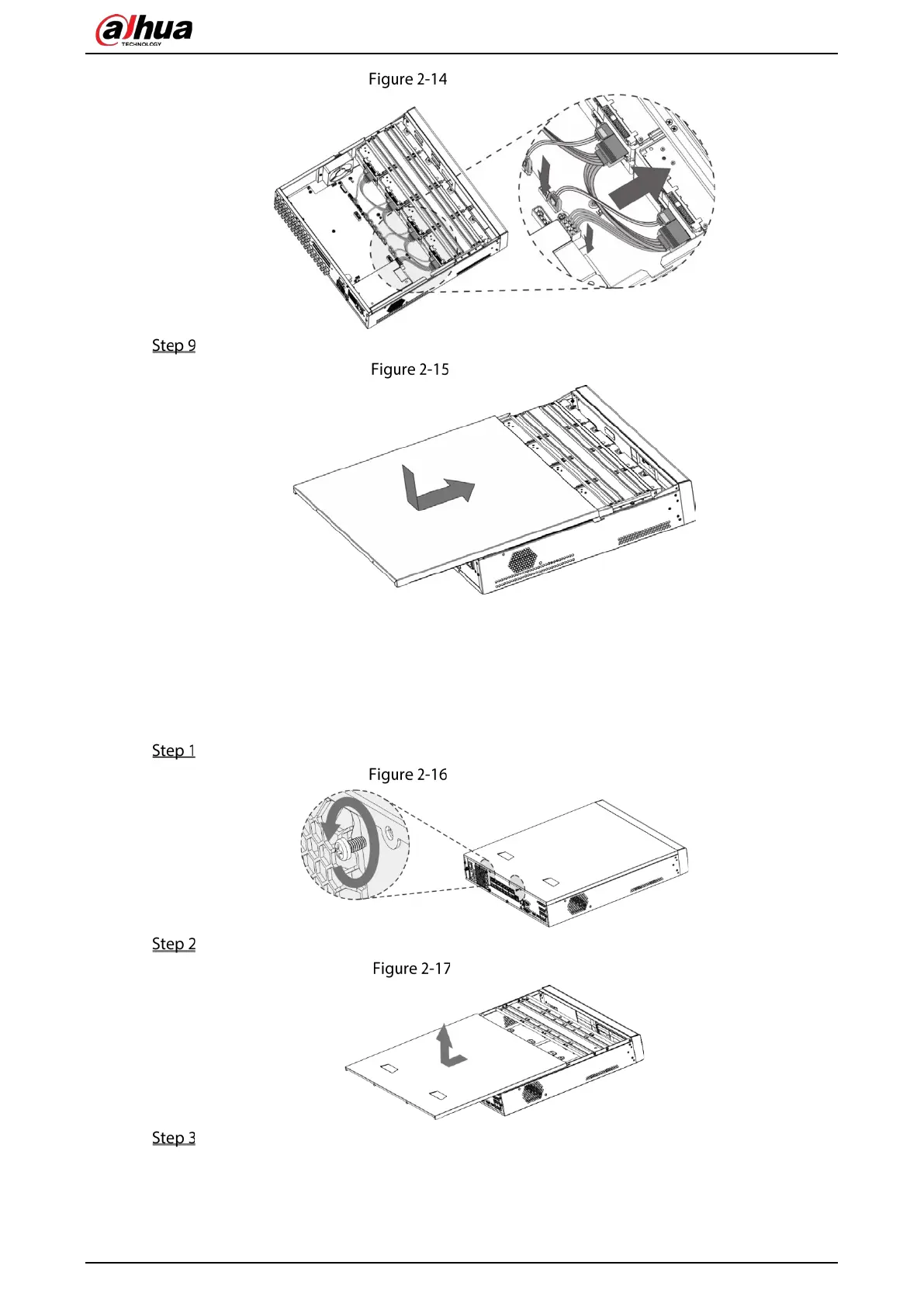

Connect cables
Put the cover back and fasten the screws.
Put back cover
2.2.3 DH-XVR54xxL-I2/DH-XVR54xxL-4KL-I2/DH-XVR54xxL-I3/DH-
XVR74xxL-4K-I2
Remove the fixing screws from the rear panel.
Remove screws
Remove the cover along the direction shown in the following arrow.
Remove cover
Remove the screws on the sides of HDD bracket to take out the bracket.
For the way to remove the bracket, see the following figure.
