User’s Manual
378
RJ45-RS232 Connection Cable
Definition

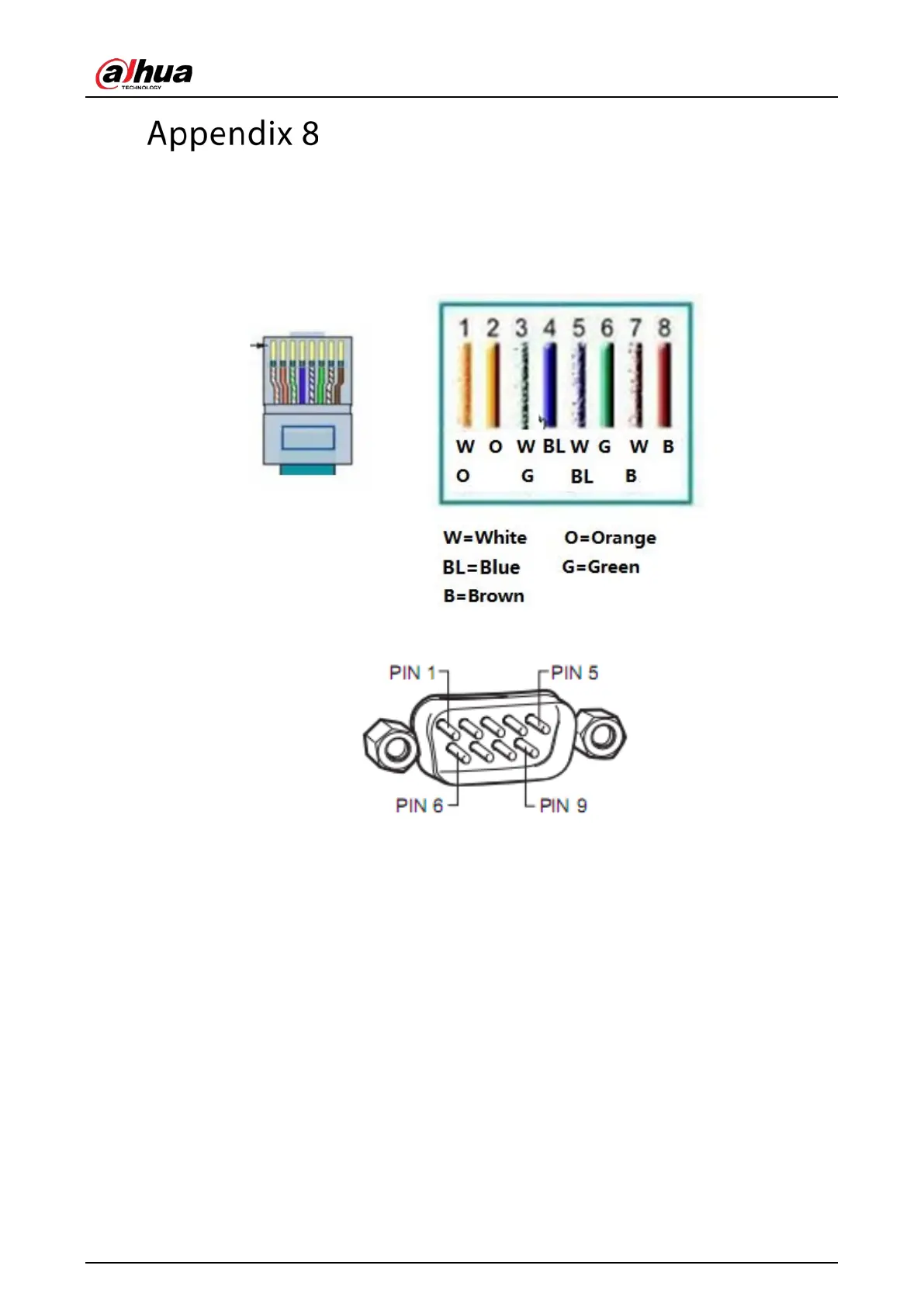

Refer to the following figure for RJ-45 cable definition.
Appendix Figure 8-1 RJ-45
Refer to the following figure for RS-232 pin definition.
Appendix Figure 8-2 RS-232
Cross Connection
Refer to the following figure for connection information.
