Figure 2-56

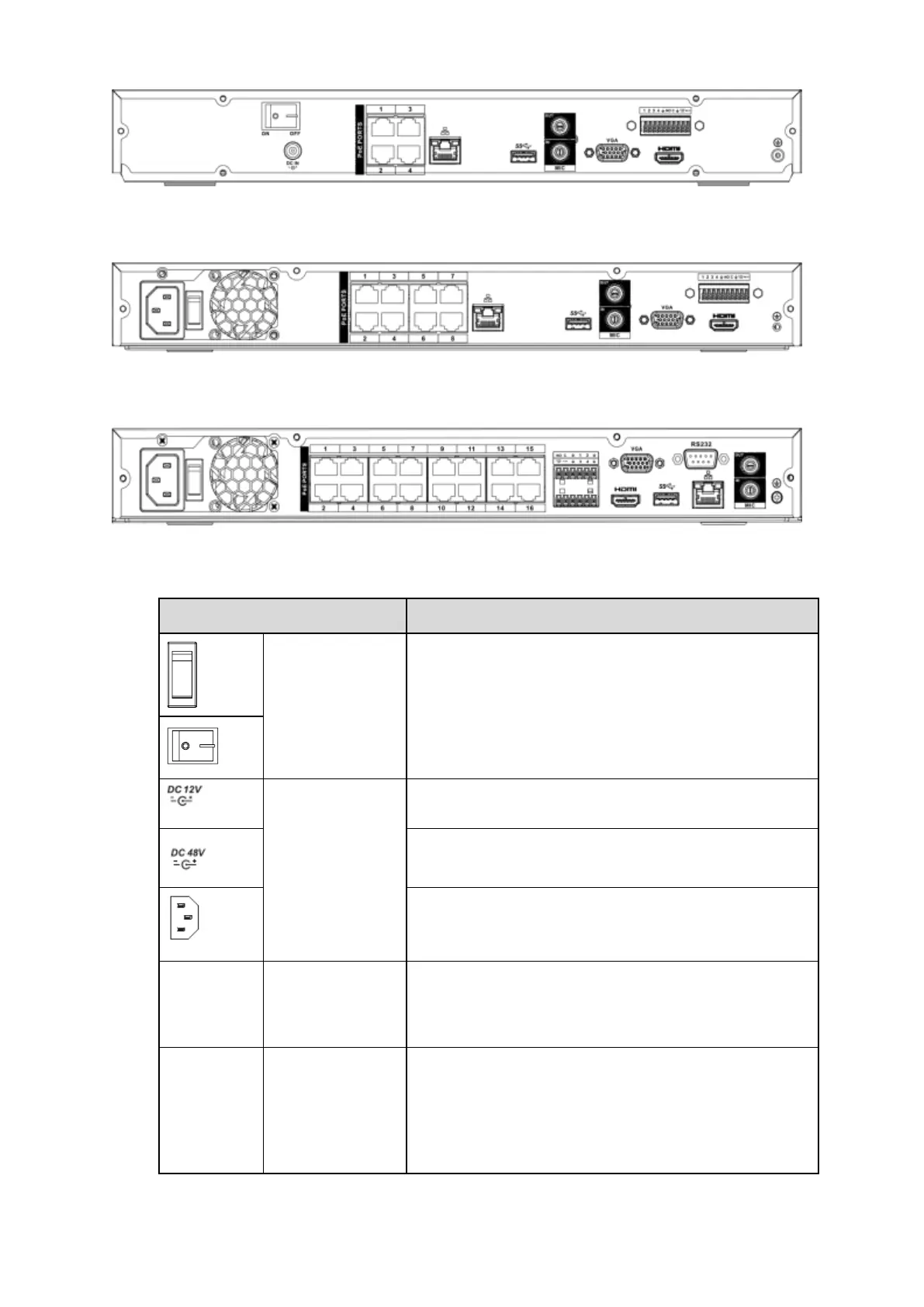

The 4K 1U (S2) with eight PoE ports series rear panel is shown as below. See Figure 2-57.
Figure 2-57
The 4K 1U (S2) with sixteen PoE ports series rear panel is shown as below. See Figure 2-58.
Figure 2-58
Please refer to the following sheet for detailed information.
Name
Function
Power switch
Power on/off button.
Power input port
Input DC 12V/4A.
For general 4K 1U (S2) series product only.
Switch power port. Input DC 48/96W
For 4K 1U (S2) with four PoE ports series product only.
Input AC90V~264V-12V5A/52V2.5A-190W.
For 4K 1U (S2) with eight PoE ports/ 4K 1U (S2) with
sixteen PoE ports series product only.
MIC IN
Audio input port
Bidirectional talk input port. It is to receive the analog
audio signal output from the devices such as
microphone, pickup.
MIC OUT
Audio output port
Audio output port. It is to output the analog audio signal
to the devices such as the sound box.
 Bidirectional talk output.
 Audio output on 1-window video monitor.
 Audio output on 1-window video playback.
