Figure 2-21

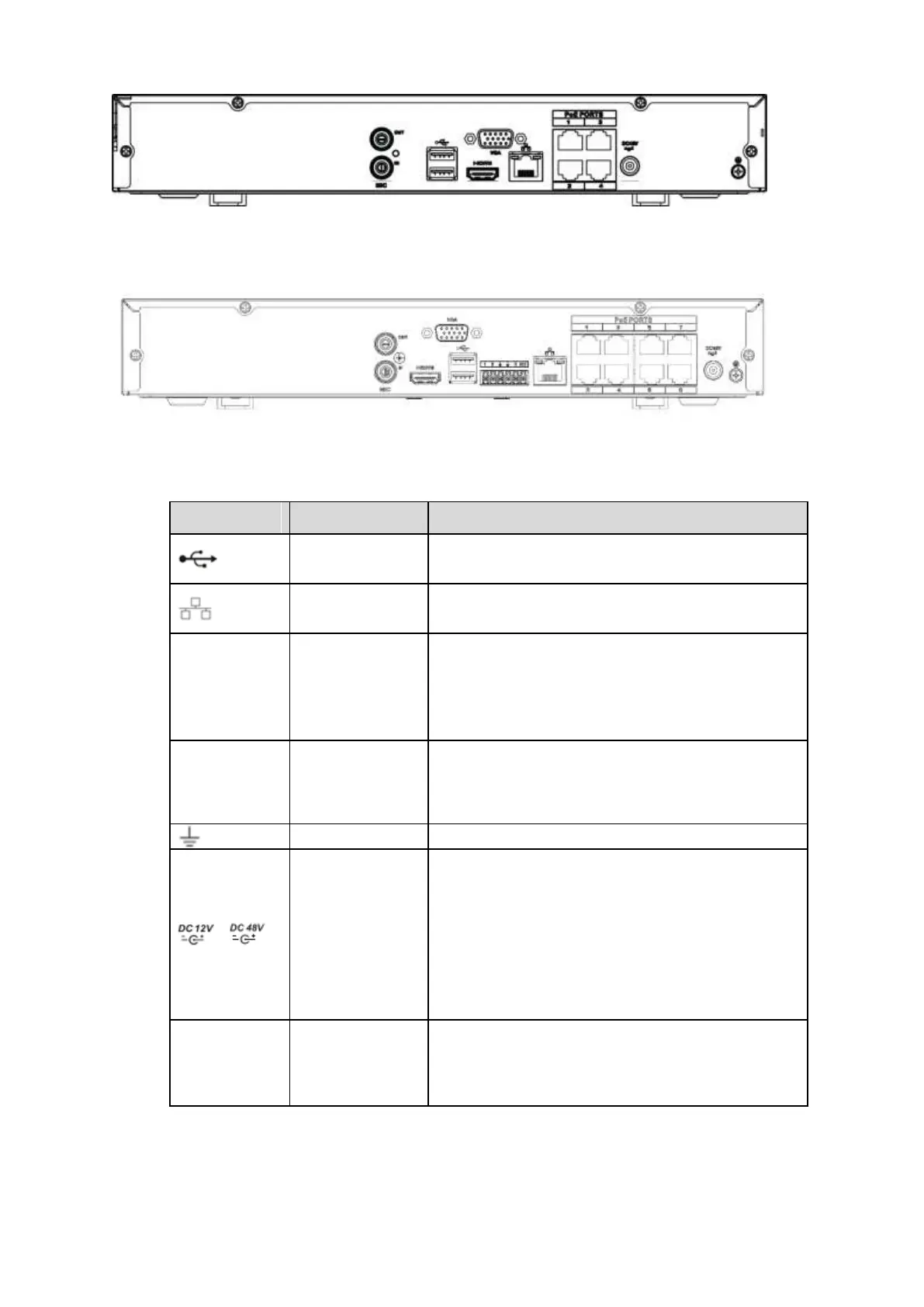

The beneficio mini 1U with 8 PoE ports series NVR rear panel is shown as in Figure 2-22.
Figure 2-22
Please refer to the following sheet for detailed information.
Port Name
Connection
Function
USB2.0 port
USB2.0 port. Connect to mouse, USB storage
device, USB burner and etc.
Network port
10M/100Mbps self-adaptive Ethernet port.
Connect to the network cable.
HDMI
High Definition
Media Interface
High definition audio and video signal output port.
It transmits uncompressed high definition video
and multiple-channel data to the HDMI port of the
display device. HDMI version is 1.4.
VGA
VGA video
output port
VGA video output port. Output analog video
signal. It can connect to the monitor to view analog
video.
GND
Ground end
/
Power input port
Power socket.
 For beneficio mini 1U series NVR, input DC
12V/2A.
 For beneficio mini 1U with 1 PoE port series
NVR, input DC 48V/1.5A.
 For beneficio Mini 1U with 8 PoE ports series
NVR, input DC 48V/2A.
MIC IN
Audio input port
Bidirectional talk input port. It is to receive the
analog audio signal output from the devices such
as microphone, pickup.
