4KS2/L/NVR41HS-P-4KS2/L/NVR41HS-8P-4KS2/L Series

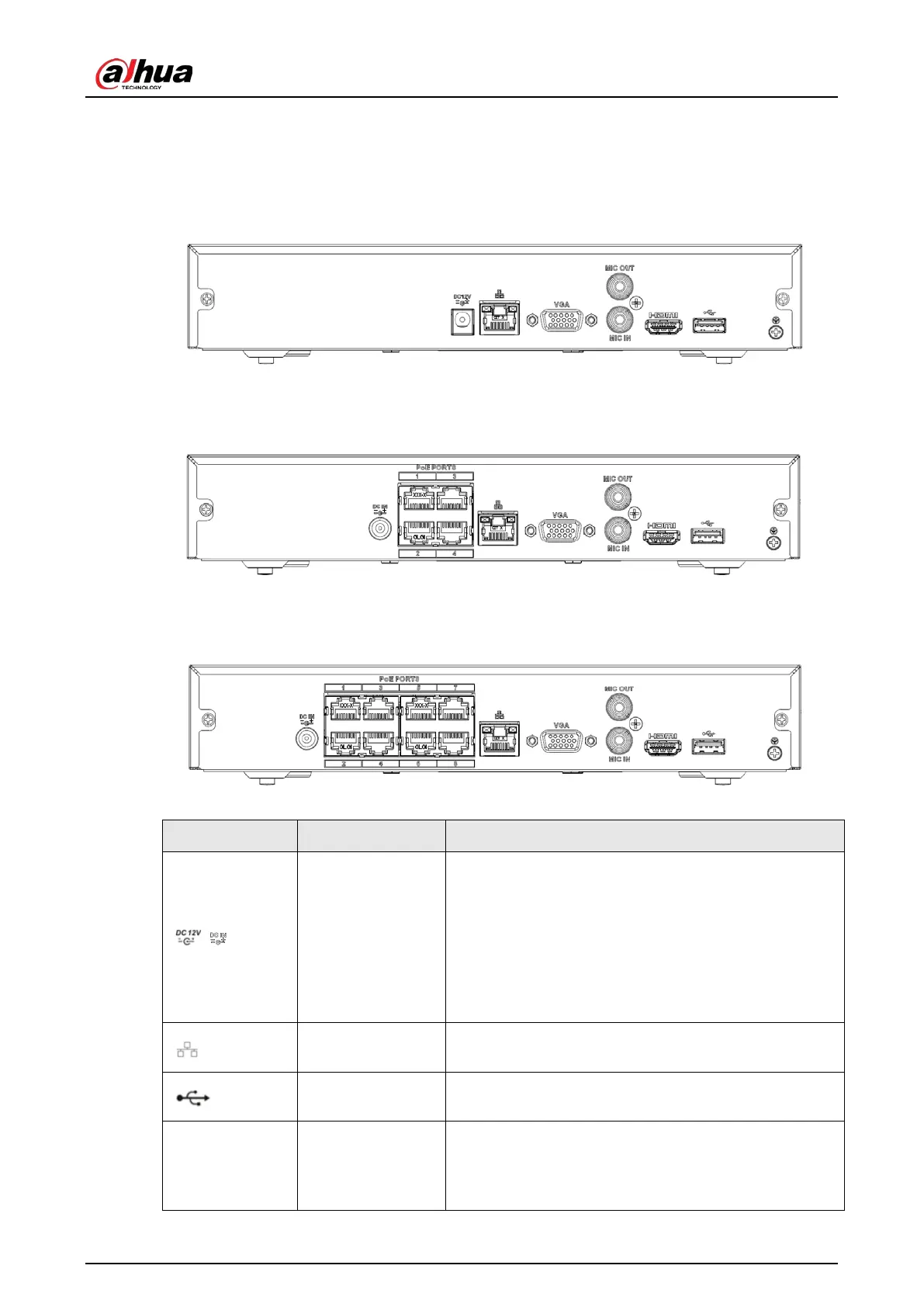

The NVR11HS-S3H/NVR21HS-4KS2/NVR41HS-4KS2/NVR41HS-4KS2/L series rear panel is shown as
below.
Figure 2-27 Rear panel
The NVR11HS-P-S3H/NVR21HS-P-4KS2/NVR41HS-P-4KS2/NVR41HS-P-4KS2/L series rear panel is
shown as below.
Figure 2-28 Rear panel
The NVR11HS-8P-S3H/NVR21HS-8P-4KS2/NVR41HS-8P-4KS2/NVR41HS-8P-4KS2/L series rear panel is
shown as below.
Figure 2-29 Rear panel
Table 2-15 Ports
Port Name Connection Function
/ Power input port
Power socket.
●
For NVR11HS-P-S3H/NVR21HS-4KS2/NVR41HS-
4KS2 series, input DC 12V/2A.
●
For NVR11HS-P-S3H/NVR21HS-P-4KS2/NVR41HS-
4KS2 series, input DC 48V/1.25A.
●
For NVR11HS-8P-4KS2/NVR21HS-8P-
4KS2/NVR41HS-4KS2 series, input DC 48V/2A.
Network port
10M/100Mbps self-adaptive Ethernet port. Connect to
the network cable.
USB port
USB port. Connect to mouse, USB storage device and
etc.
HDMI
High Definition
Media Interface
High definition audio and video signal output port. It
transmits uncompressed high definition video and
multiple-channel data to the HDMI port of the display
device. HDMI version is 1.4.
