User's Manual
27

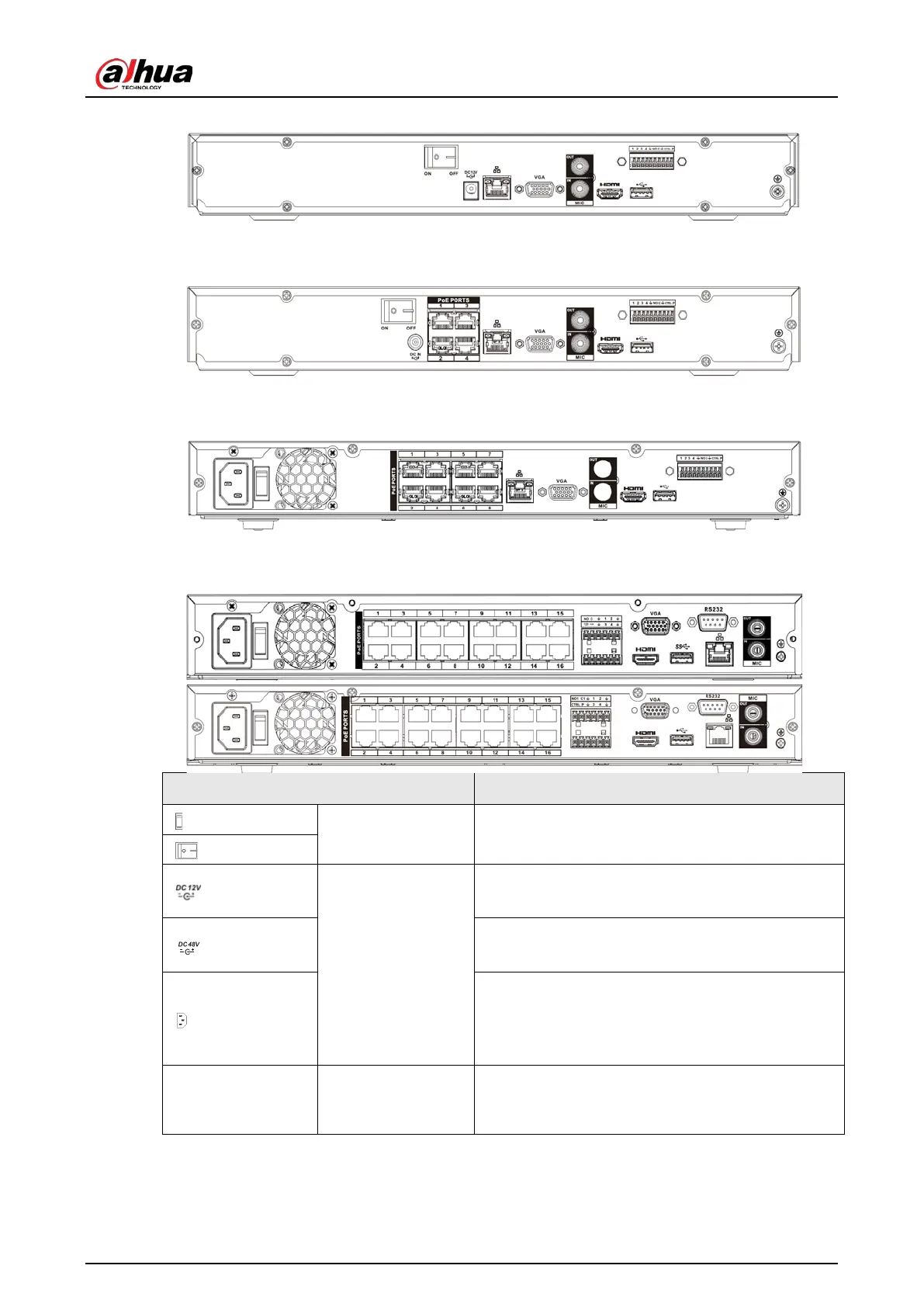

Figure 2-46 Rear panel
The NVR42-P-4KS2/NVR42-P-4KS2/L series rear panel is shown as below.
Figure 2-47 Rear panel
The NVR42-8P-4KS2/NVR42-8P-4KS2/L series rear panel is shown as below.
Figure 2-48 Rear panel
The NVR42-16P-4KS2/NVR42-16P-4KS2/L series rear panel is shown as below.
Figure 2-49 Rear panel
Name Function
Power switch Power on/off button.
Power input port
Input DC 12V/4A.
For NVR42-4KS2 series product only.
Switch power port. Input DC 48/96W.
For NVR42-P-4KS2 series product only.
Input AC90V~264V-12V5A/52V2.5A-190W.
For NVR42-8P-4KS2/NVR42-16P-4KS24K 1U (S2)
with 8 PoE ports/ 4K 1U (S2) with 16 PoE ports
series product only.
MIC IN Audio input port
Bidirectional talk input port. It is to receive the
analog audio signal output from the devices such
as microphone, pickup.
