User's Manual
75
I/L/NVR42-I/NVR42-8P-I/NVR44-I/NVR48-I/NVR608-4KS2 Series
Background Information
Different models have different HDD numbers. The actual product shall prevail.
Procedure

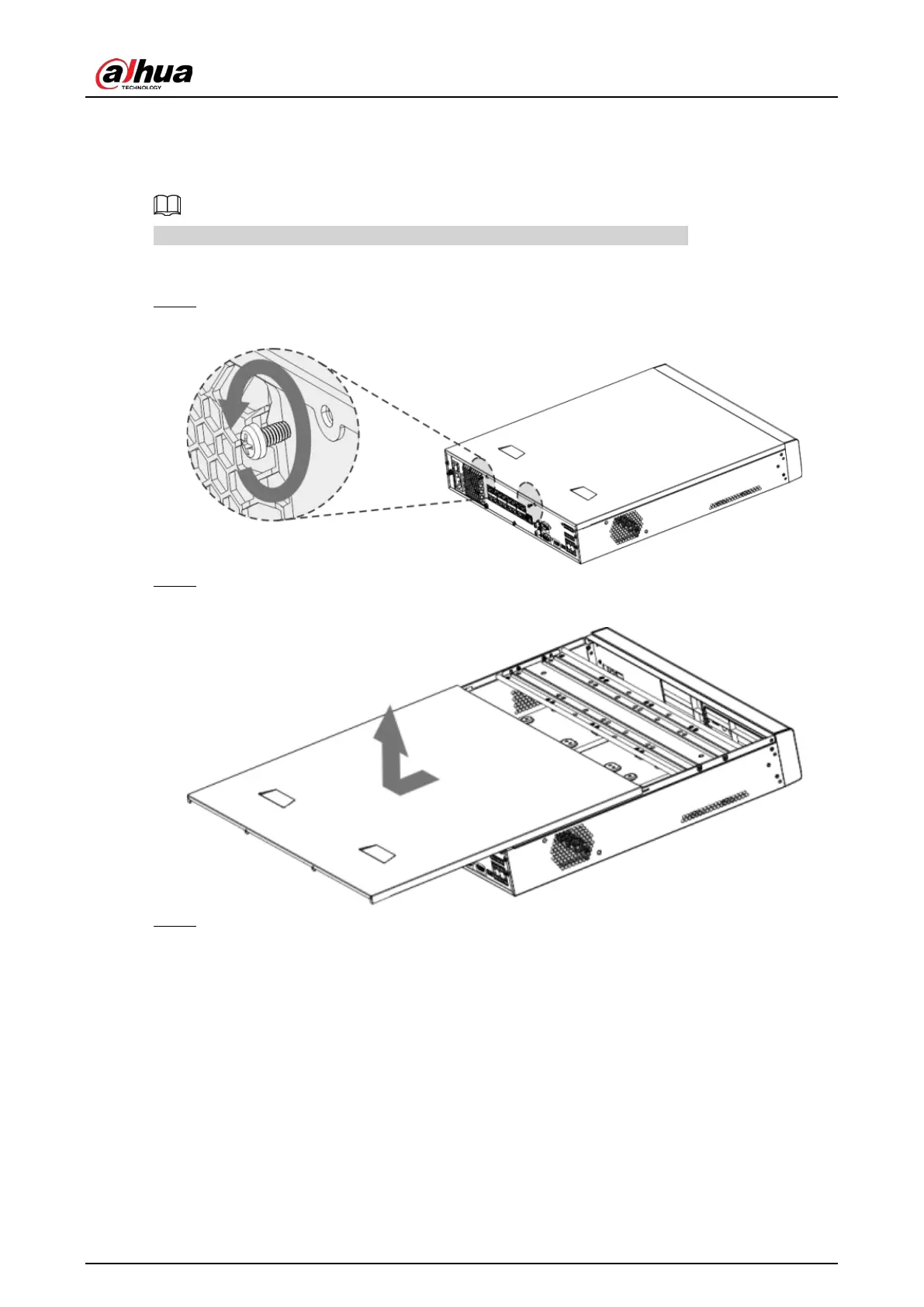

Step 1 Remove the fixing screws on the rear panel of the device.
Figure 3-18
Step 2 Remove the case cover along the direction shown in the following arrow.
Figure 3-19
Step 3 Remove the screws on the sides of HDD bracket to take out the bracket.
●
1.5U device has one HDD bracket. For the way to remove the bracket, see Figure 3-20
●
2U device has two HDD brackets. For the way to remove the brackets, see Figure 3-21.
