93
Icon
Port Name
Function
GND
Alarm input ground port.
N1,N2
Alarm output port
12
2 groups of alarm output ports.group 1port
NO1C1, group 2port NO2C2. Output
alarm signal to the alarm device. Please make
sure there is power to the external alarm device.
NONormal open alarm output port.
CAlarm output public end.
C1C2
A
RS-485
communication
port
RS485_A port. It is the cable A. You can connect to
the control devices such as speed dome PTZ.
B
RS485_B.It is the cable B. You can connect to the
control devices such as speed dome PTZ.
2.2.13 NVR44/44-8P/44-16P Series

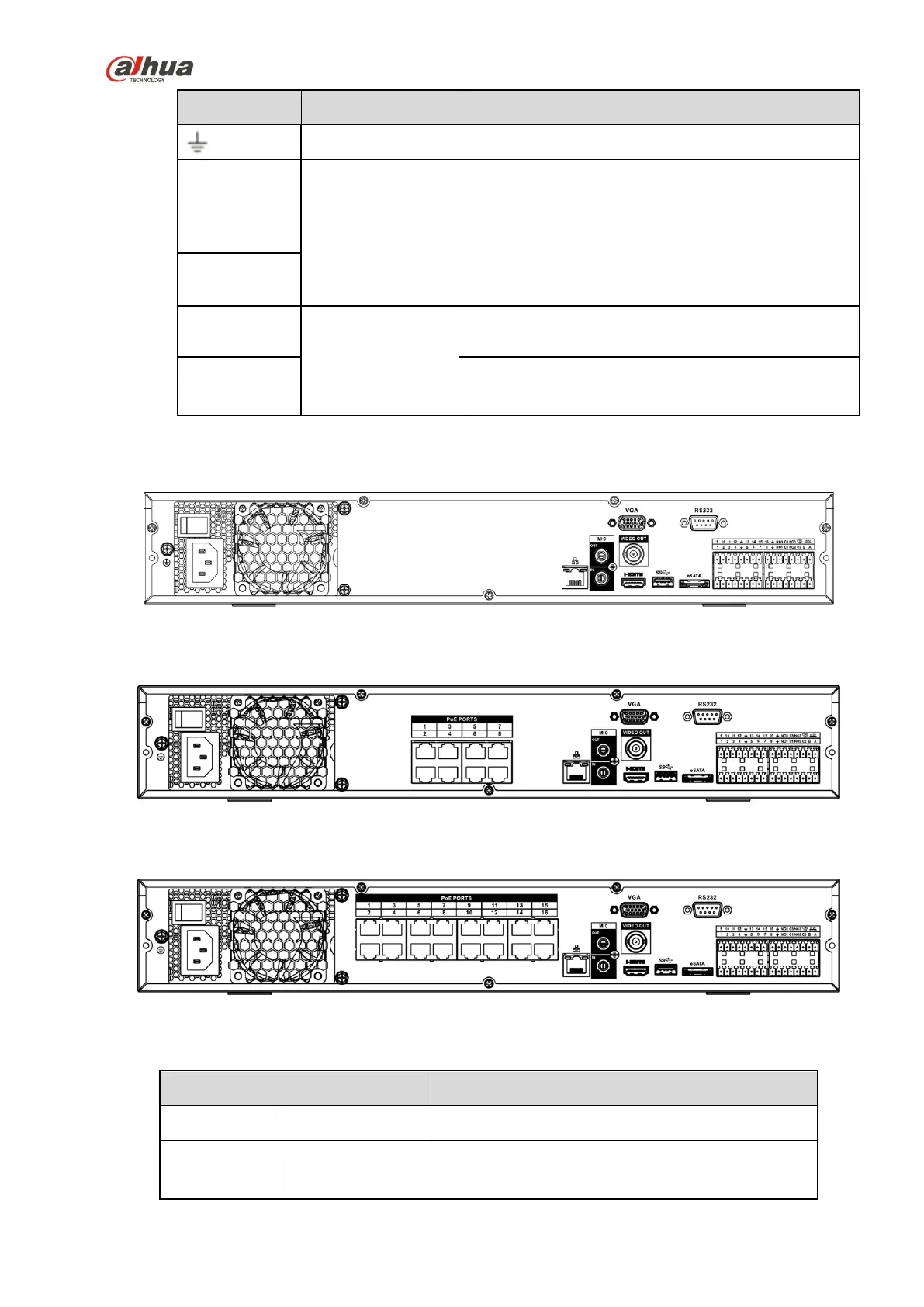

The NVR44 series rear panel is shown as below. See Figure 2-48.
Figure 2-48
The NVR44-8P series rear panel is shown as below. See Figure 2-49.
Figure 2-49
The NVR44-16P series rear panel is shown as below. See Figure 2-50.
Figure 2-50
Please refer to the following sheet for detailed information.
Name
Function
Power switch
/
Power on-off button
Power input
port
/
Input AC 100~240V.
