Dahua nvr4208-8p User Manual

260

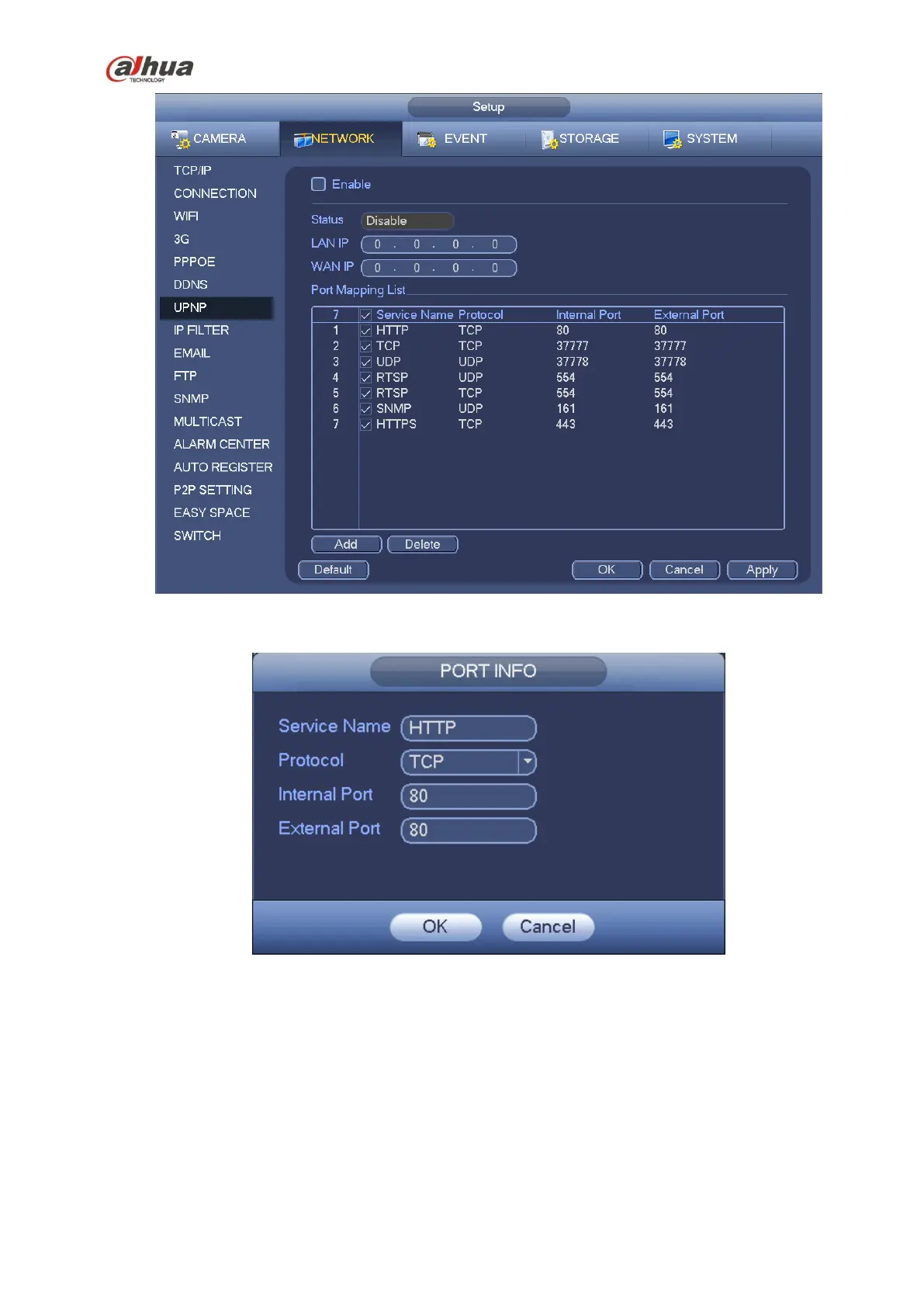

Figure 4-129
Figure 4-130
4.14.1.9 IP Filter
IP filter interface is shown as in Figure 4-131. You can add IP in the following list. The list supports max 64
IP addresses. System supports valid address of IPv4 and IPv6. Please note system needs to check the
validity of all IPv6 addresses and implement optimization.
After you enabled trusted sites function, only the IP listed below can access current NVR.
If you enable blocked sites function, the following listed IP addresses can not access current NVR.
 Enable: Highlight the box here, you can check the trusted site function and blocked sites function.
You can not see these two modes if the Enable button is grey.

Dahua nvr4208-8p Specifications

General

Operating System	Embedded LINUX
IP Camera Input	8 channel
Two-way Talk	1 channel Input, 1 channel Output, RCA
Interface	1 HDMI, 1 VGA
OSD	Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Record Interval	1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Ethernet	1 RJ-45 Port (10/100/1000Mbps)
Max. User Access	128 users
Smart Phone	iPhone, iPad, Android
HDD Bays	1
Operating Temperature	-10°C ~ +55°C (+14°F ~ +131°F)
Main Processor	Dual-core embedded processor
Multi-screen Display	1/4/9
Video Detection and Alarm	Motion Detection, MD Zones: 396 (22 x 18), Video Loss, Camera Blank
Alarm input	4
Relay Output	2
Compression	H.265, H.264
Recording Resolution	Up to 8MP
Record Mode	Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Camera Blank, Video Loss)
PoE	8 ports (IEEE802.3af/at)
Protocols	HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS, etc.)
USB Interface	2 USB2.0
Power Supply	AC 100~240V, 50/60 Hz
Power Consumption	NVR: <10W (without HDD), PoE: Max 25.5W for single port, 130W total
Operating Humidity	10%~90% RH
