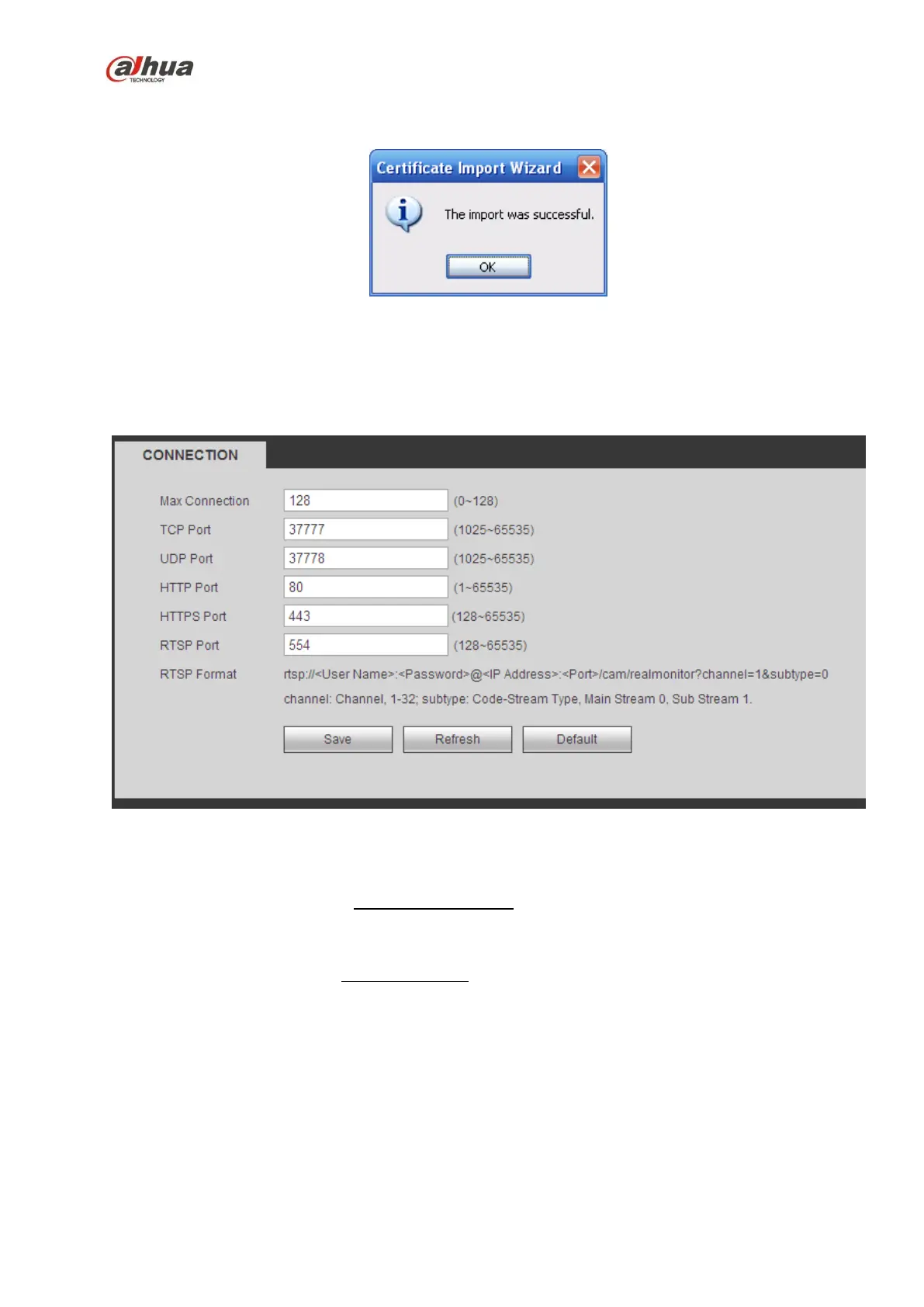

Click Yes button, system pops up the following dialogue box, you can see the certificate download is
complete. See Figure 5-52.
Figure 5-52
5.8.2.15.3 View and set HTTPS port
From Setup->Network->Connection, you can see the following interface. See Figure 5-53.
You can see HTTPS default value is 443.
Figure 5-53
5.8.2.15.4 Login
Open the browser and then input https://xx.xx.xx.xx:port.
xx.xx.xx.xx: is your device IP or domain mane.
Port is your HTTPS port. If you are using default HTTPS value 443, you do not need to add port
information here. You can input https://xx.xx.xx.xx to access.
Now you can see the login interface if your setup is right.
5.8.2.16 P2P
You can use your cell phone to scan the QR code and add it to the cell phone client.
Via the SN from scanning the QR code, you can access the device in the WAN. Please refer to the P2P
operation manual included in the resources CD.
The P2P interface is shown as in Figure 5-54.
Check the Enable box to enable P2P function and then click the Save button. Now you can view the
device status and SN.

Dahua nvr4208-8p Specifications

General

Operating System	Embedded LINUX
IP Camera Input	8 channel
Two-way Talk	1 channel Input, 1 channel Output, RCA
Interface	1 HDMI, 1 VGA
OSD	Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Record Interval	1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Ethernet	1 RJ-45 Port (10/100/1000Mbps)
Max. User Access	128 users
Smart Phone	iPhone, iPad, Android
HDD Bays	1
Operating Temperature	-10°C ~ +55°C (+14°F ~ +131°F)
Main Processor	Dual-core embedded processor
Multi-screen Display	1/4/9
Video Detection and Alarm	Motion Detection, MD Zones: 396 (22 x 18), Video Loss, Camera Blank
Alarm input	4
Relay Output	2
Compression	H.265, H.264
Recording Resolution	Up to 8MP
Record Mode	Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Camera Blank, Video Loss)
PoE	8 ports (IEEE802.3af/at)
Protocols	HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS, etc.)
USB Interface	2 USB2.0
Power Supply	AC 100~240V, 50/60 Hz
Power Consumption	NVR: <10W (without HDD), PoE: Max 25.5W for single port, 130W total
Operating Humidity	10%~90% RH
