Dahua nvr4208-8p User Manual

382

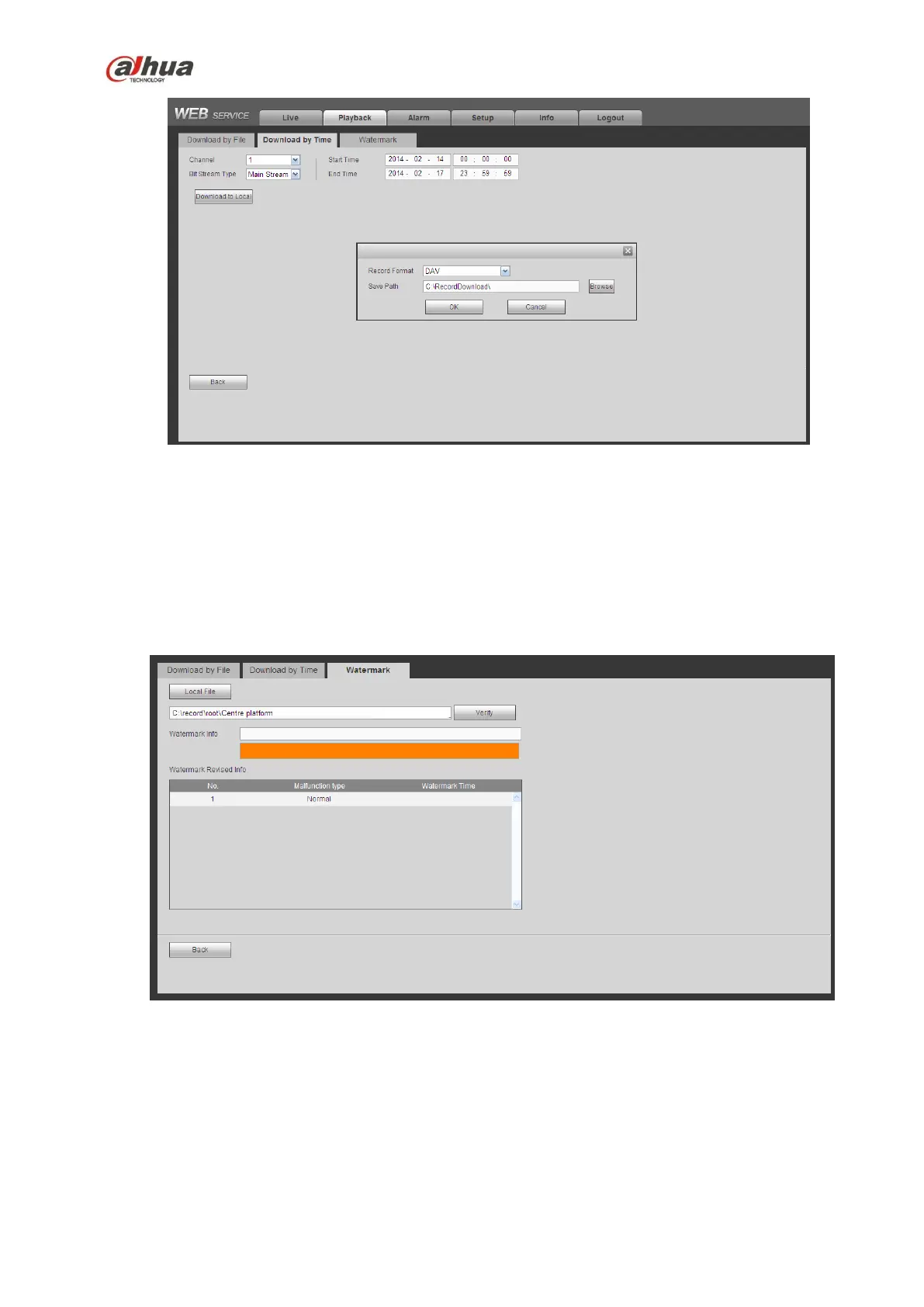

Figure 5-128
Set record format and saved path, you can click OK to download and view the download process. After
the download operation, you can see corresponding dialog box.
5.10.5.3 Watermark
Watermark interface is shown as In Figure 5-129. Please select a file and then click Verify button to see
the file has been tampered with or not
Figure 5-129
5.11 Alarm
Click alarm function, you can see an interface is shown as Figure 5-130.
Here you can set device alarm type and alarm sound setup (Please make sure you have enabled audio
function of corresponding alarm events.).

Dahua nvr4208-8p Specifications

General

Operating System	Embedded LINUX
IP Camera Input	8 channel
Two-way Talk	1 channel Input, 1 channel Output, RCA
Interface	1 HDMI, 1 VGA
OSD	Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Record Interval	1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Ethernet	1 RJ-45 Port (10/100/1000Mbps)
Max. User Access	128 users
Smart Phone	iPhone, iPad, Android
HDD Bays	1
Operating Temperature	-10°C ~ +55°C (+14°F ~ +131°F)
Main Processor	Dual-core embedded processor
Multi-screen Display	1/4/9
Video Detection and Alarm	Motion Detection, MD Zones: 396 (22 x 18), Video Loss, Camera Blank
Alarm input	4
Relay Output	2
Compression	H.265, H.264
Recording Resolution	Up to 8MP
Record Mode	Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Camera Blank, Video Loss)
PoE	8 ports (IEEE802.3af/at)
Protocols	HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS, etc.)
USB Interface	2 USB2.0
Power Supply	AC 100~240V, 50/60 Hz
Power Consumption	NVR: <10W (without HDD), PoE: Max 25.5W for single port, 130W total
Operating Humidity	10%~90% RH
