3.5.12 NVR44-4K/48-4K/54-4KS2/54-16P-4KS2/58-4KS2/58-16P-4KS2 Series

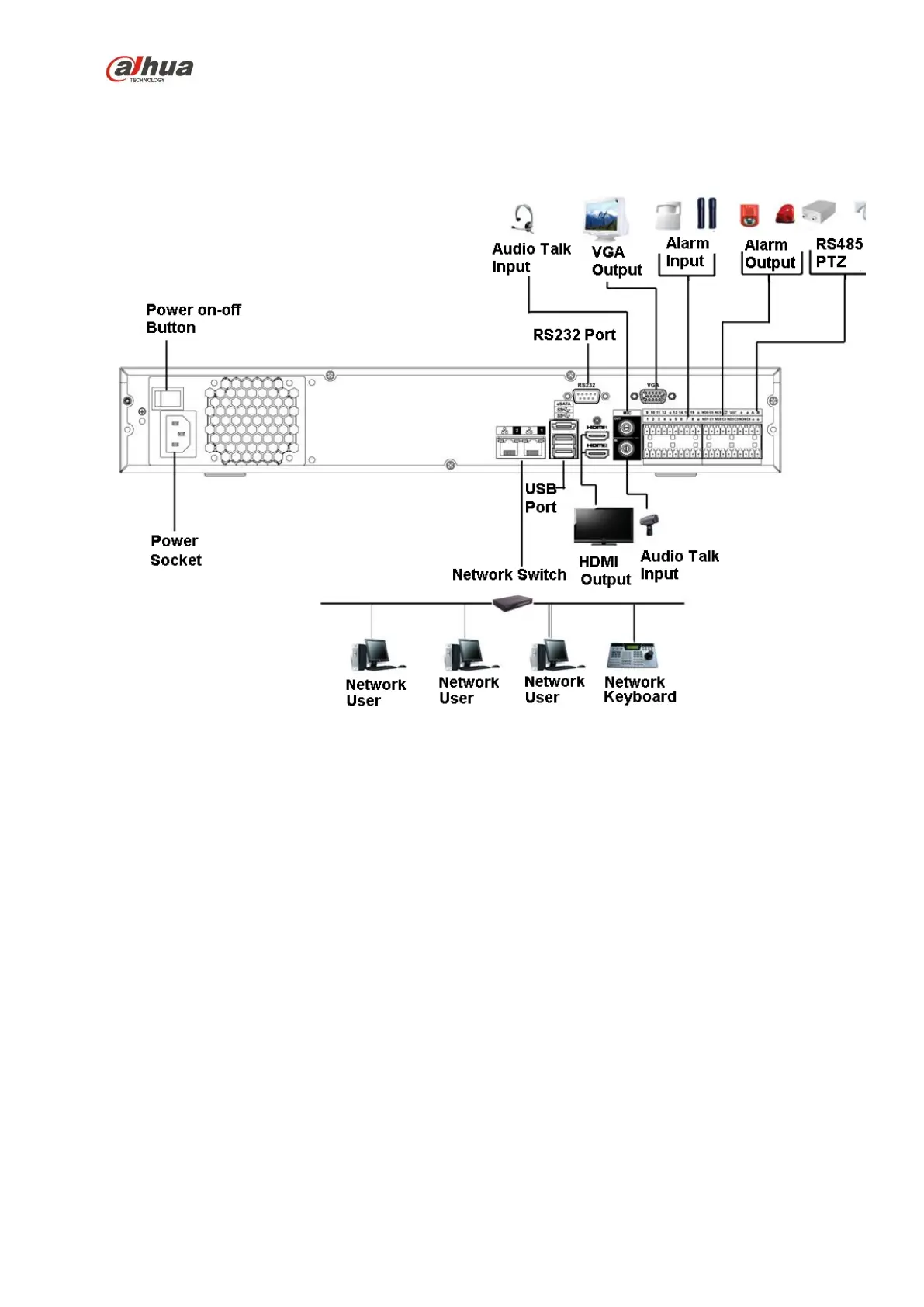

Please refer to Figure 3-11 for connection sample.
The following interface is based on the 44-4K series product.
Figure 3-12
3.5.13 NVR44/44-8P/44-16P/44-4KS2/44-16P-4KS2 Series
Please refer to Figure 3-13 for connection sample.
The following interface is based on the 44-8P series product.
