3.5.9 NVR42/42-P/42-8P/42-16P/52-4KS2/52-8P-4KS2/52-16P-4KS2 Series

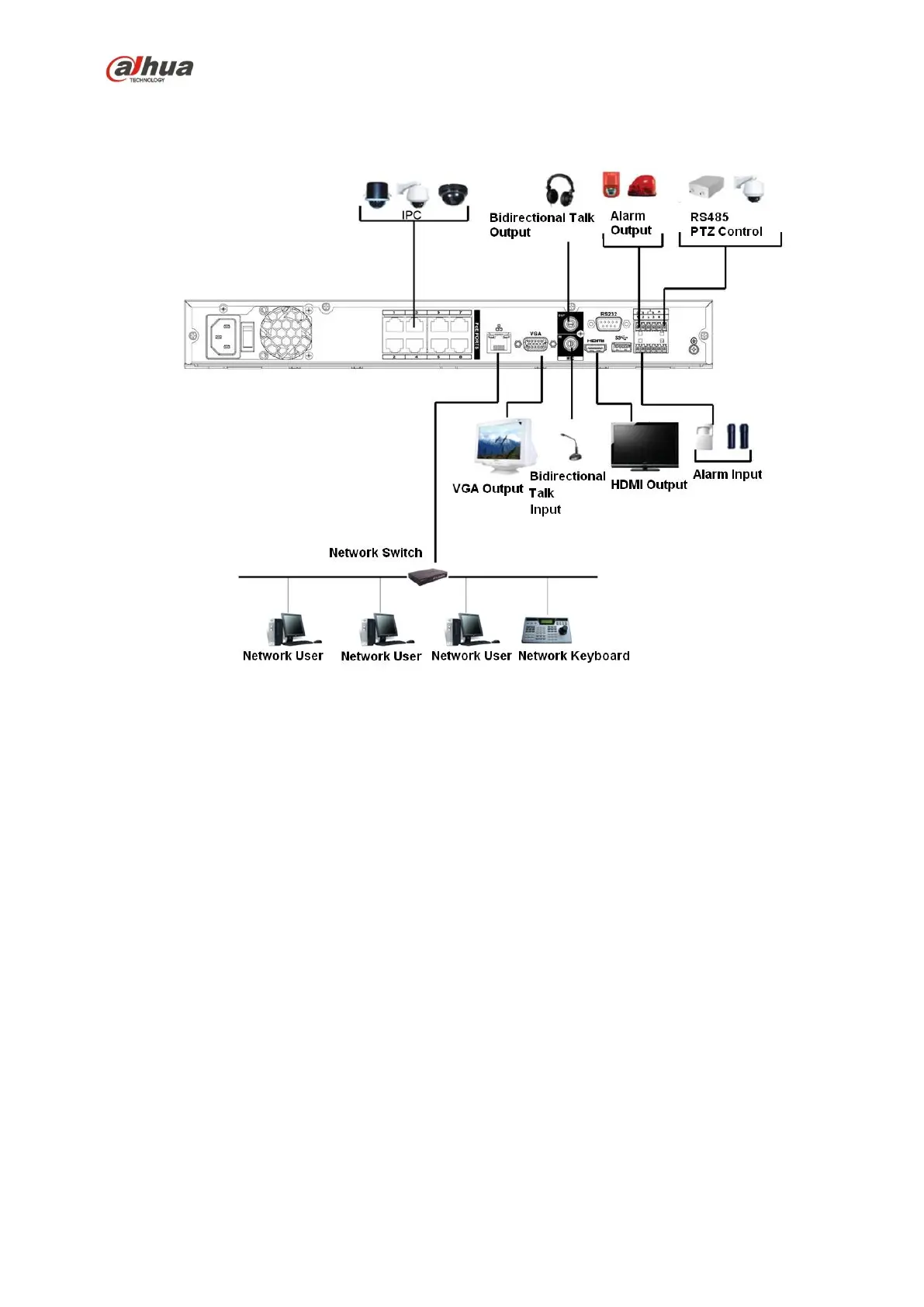

Please refer to Figure 3-9 for connection sample.
The following figure is based on our 42-8P series product.
Figure 3-9
3.5.10 NVR42-4K/42-4KS2 Series
Please refer to Figure 3-10 for connection sample.
The following figure is based on our 42-4K series product.
