239
Select SN (object1/2/3/4) and direction, and then input customized rule name.
Object1/2/3/4: System supports four zones. Each SN stands for one zone.
Direction ( / ): For icon , system can generate an alarm once the object left in the
one for the specified time.. For icon , system can generate an alarm once the object is out of
the zone for the specified time.
Period: It refers to the object in/out the zone time.
Now you can draw a rule. Left click mouse to draw a line, until you draw a rectangle, you can right click
mouse.
Click Ok to complete the rule setup.
Tips
Click to delete the corresponding rule.
You can refer to the chapter 4.13.2.1 to set parameters.
4.13.2.4 Scene Change Optional
Please make sure you are connecting to the smart network camera, otherwise you can not use
IVS function!
When the detected scene changes, system can generate an alarm.

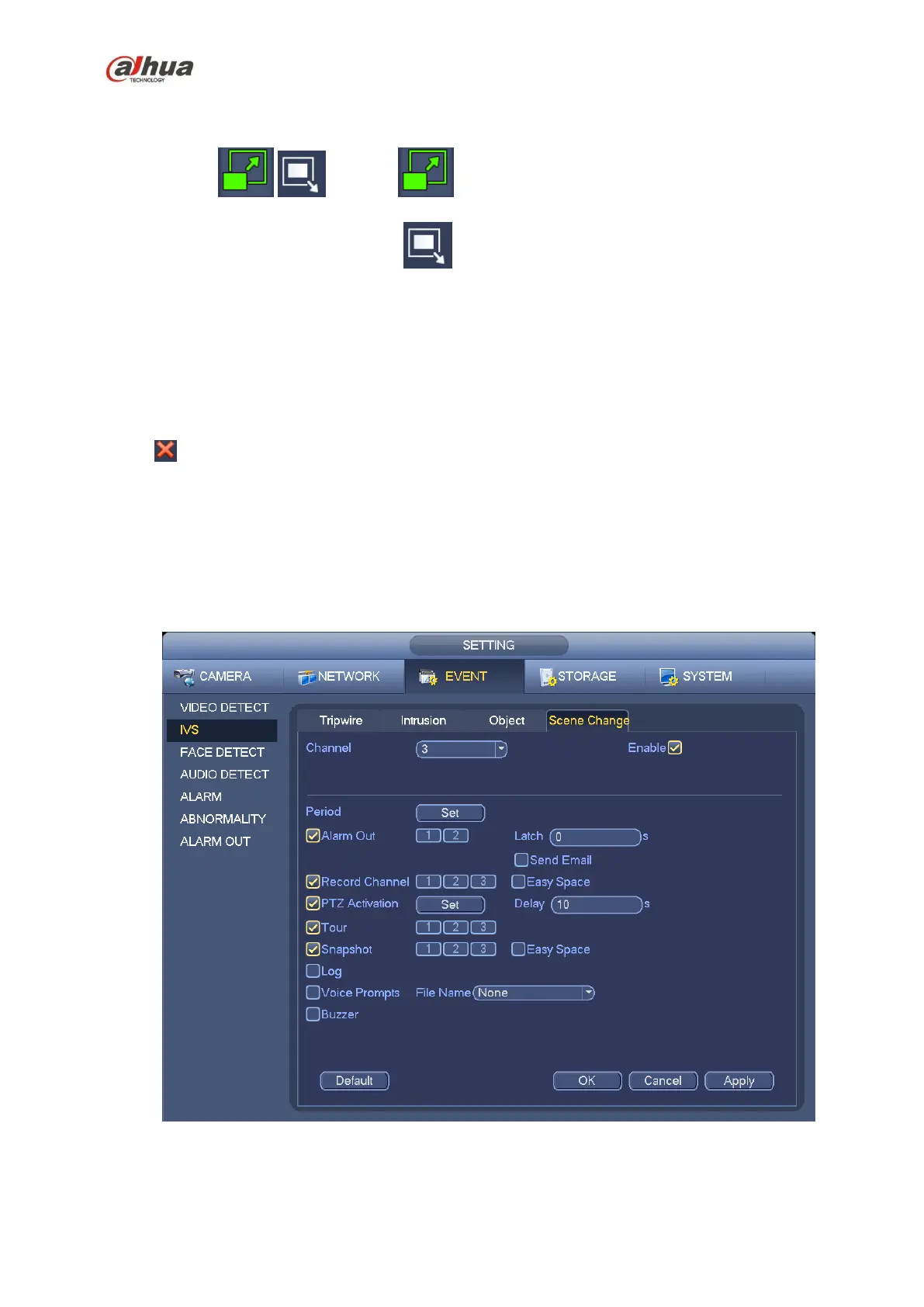

From main menu->Setting->Event->IVS->Scene change, the interface is shown as in Figure 4-106.
Figure 4-106
You can refer to the chapter 4.13.2.1 to set parameters.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Dahua nvr4208-8p and is the answer not in the manual?

Dahua nvr4208-8p Specifications

General IconGeneral
Operating SystemEmbedded LINUX
IP Camera Input8 channel
Two-way Talk1 channel Input, 1 channel Output, RCA
Interface1 HDMI, 1 VGA
OSDCamera title, Time, Video loss, Camera lock, Motion detection, Recording
Record Interval1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Ethernet1 RJ-45 Port (10/100/1000Mbps)
Max. User Access128 users
Smart PhoneiPhone, iPad, Android
HDD Bays1
Operating Temperature-10°C ~ +55°C (+14°F ~ +131°F)
Main ProcessorDual-core embedded processor
Multi-screen Display1/4/9
Video Detection and AlarmMotion Detection, MD Zones: 396 (22 x 18), Video Loss, Camera Blank
Alarm input4
Relay Output2
CompressionH.265, H.264
Recording ResolutionUp to 8MP
Record ModeManual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Camera Blank, Video Loss)
PoE8 ports (IEEE802.3af/at)
ProtocolsHTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS, etc.)
USB Interface2 USB2.0
Power SupplyAC 100~240V, 50/60 Hz
Power ConsumptionNVR: <10W (without HDD), PoE: Max 25.5W for single port, 130W total
Operating Humidity10%~90% RH
