Dahua nvr4208-8p - NVR48;48-16 P;48-4 KS2;48-16 P-4 KS2 Series

152
Figure 3-13
3.5.14 NVR48/48-16P/48-4KS2/48-16P-4KS2 Series

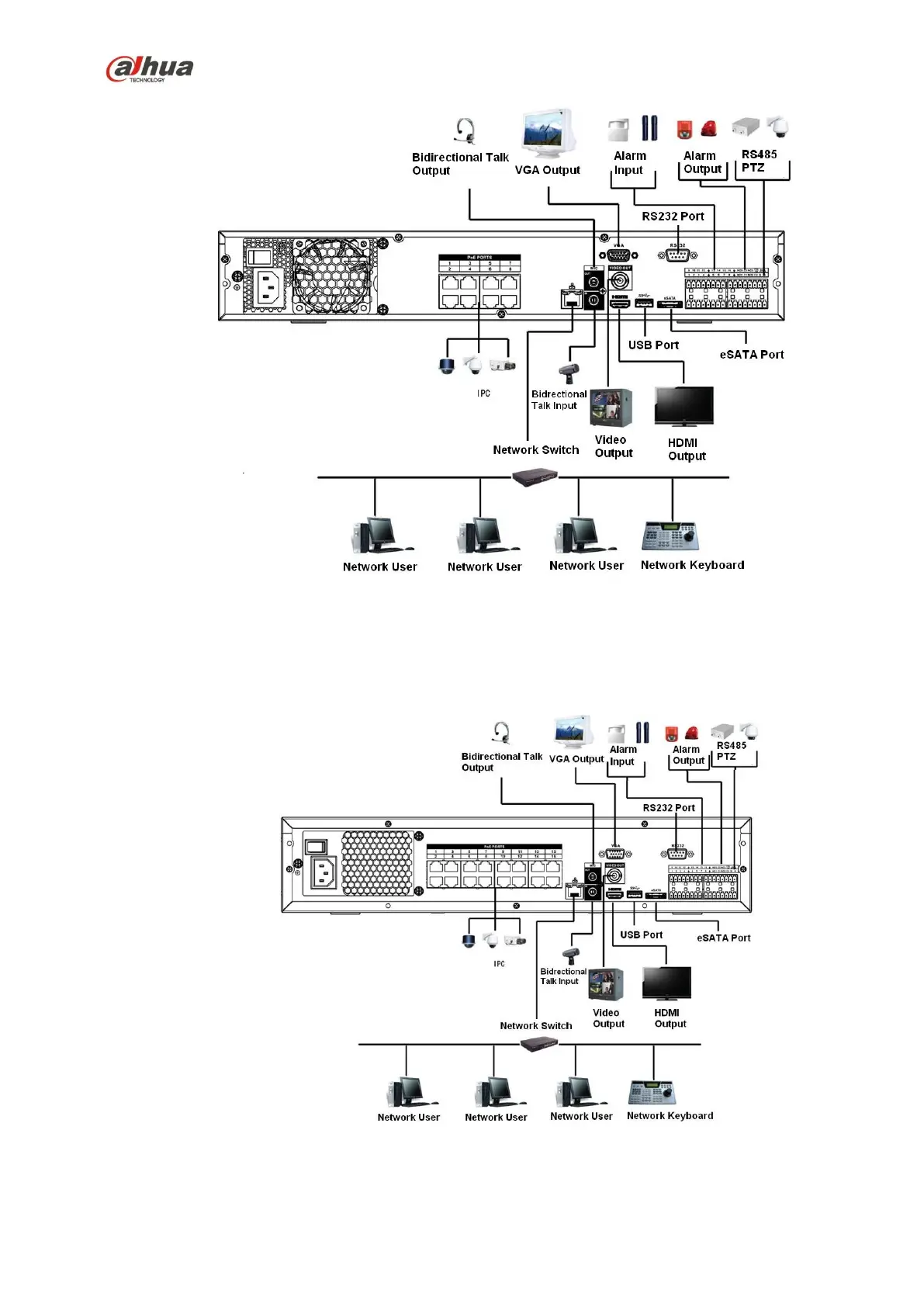

Please refer to Figure 3-14 for connection sample.
The following interface is based on the 48-16P series product.
Figure 3-14
