284
IPC Time Sync: You can input an interval here to synchronize the NVR time and IPC time.
Startup wizard: Once you check the box here, system will go to the startup wizard directly when the
system restarts the next time. Otherwise, it will go to the login interface.
Mouse sensitivity: You can set double click speed via dragging the slide bard. You can Click Default
button to restore default setup.
Enable IVS: Check the box to enable IVS function, system can display IVS rule on the preview
interface.

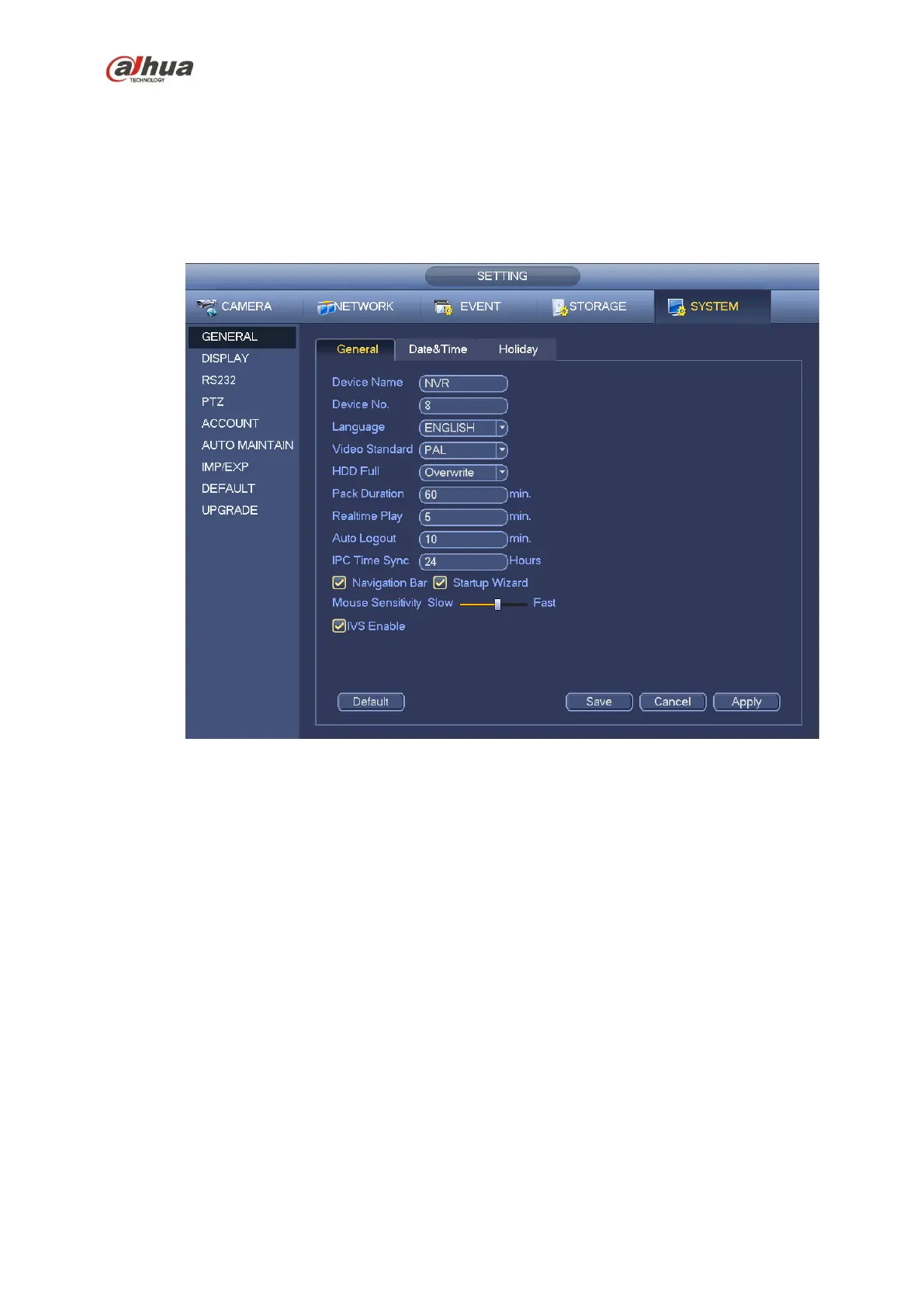

Figure 4-160
4.16.2 Data and Time
From Main menu->Setting->System->General, you can go to the general interface. See Figure 4-161.
System time: Here is for you to set system time
Date format: There are three types: YYYYY-MM-DD: MM-DD-YYYYY or DD-MM-YYYY.
Date separator: There are three denotations to separate date: dot, beeline and solidus.
DST: Here you can set DST time and date by week or by date. Please enable DST function and then
select setup mode. Please input start time and end time and click Save button.
Time format: There are two types: 24-hour mode or 12-hour mode.
NTP: It is to set NTP server, port and interval.
Note:
Since system time is very important, do not modify time casually unless there is a must!
Before your time modification, please stop record operation first!
After completing all the setups please click save button, system goes back to the previous menu.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Dahua nvr4208-8p and is the answer not in the manual?

Dahua nvr4208-8p Specifications

General IconGeneral
Operating SystemEmbedded LINUX
IP Camera Input8 channel
Two-way Talk1 channel Input, 1 channel Output, RCA
Interface1 HDMI, 1 VGA
OSDCamera title, Time, Video loss, Camera lock, Motion detection, Recording
Record Interval1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Ethernet1 RJ-45 Port (10/100/1000Mbps)
Max. User Access128 users
Smart PhoneiPhone, iPad, Android
HDD Bays1
Operating Temperature-10°C ~ +55°C (+14°F ~ +131°F)
Main ProcessorDual-core embedded processor
Multi-screen Display1/4/9
Video Detection and AlarmMotion Detection, MD Zones: 396 (22 x 18), Video Loss, Camera Blank
Alarm input4
Relay Output2
CompressionH.265, H.264
Recording ResolutionUp to 8MP
Record ModeManual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Camera Blank, Video Loss)
PoE8 ports (IEEE802.3af/at)
ProtocolsHTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS, etc.)
USB Interface2 USB2.0
Power SupplyAC 100~240V, 50/60 Hz
Power ConsumptionNVR: <10W (without HDD), PoE: Max 25.5W for single port, 130W total
Operating Humidity10%~90% RH
