252
UDP port: Default value is 37778.
HTTP port: Default value is 80.
HTTPS port: Default value is 443.
RTSP port: Default value is 554.
Important: System needs to reboot after you changed and saved any setup of the above four ports.
Please make sure the port values here do not conflict.

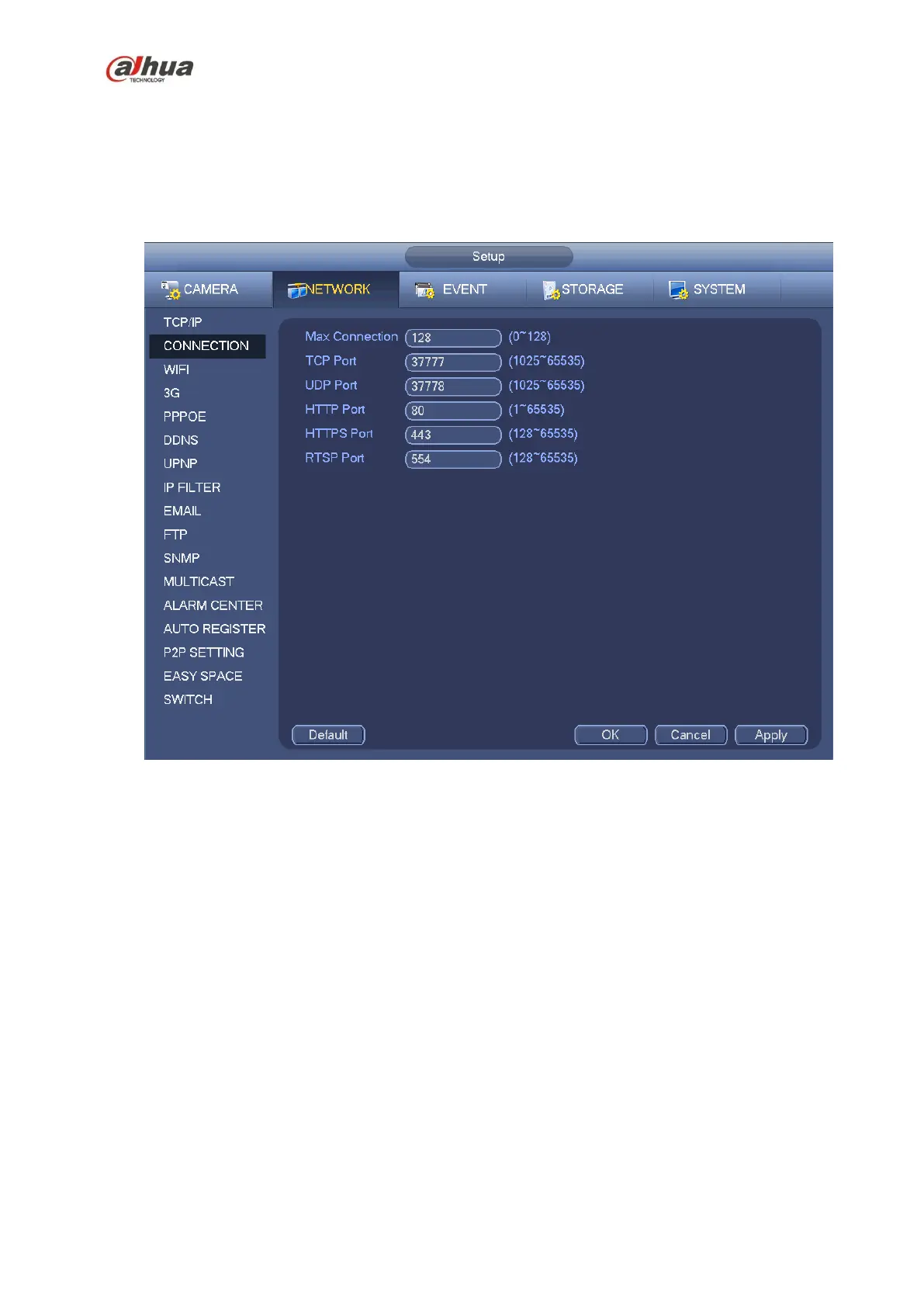

Figure 4-122
4.14.1.3 WIFI AP
Note
This function is for some series product only.
4.14.1.3.1 WIFI AP
The WIFI AP interface is shown as below. See Figure 4-123. Here you can set WIFI hotspot, so that the
network camera can use the hotspot to connect to the network.
2.4GHz/5GHz: Please check the box to enable the function.
SSID: It is to set SSID name. You can use this name to search the device.
Password: It is to set SSID password. You can use this password to connect to the network.
Security: Select authentication mode from the dropdown list.
Channel: Please select a channel from the dropdown list. The default setup is auto.
Mode: There three options: high/middle/low. Please select from the dropdown list.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Dahua nvr4208-8p and is the answer not in the manual?

Dahua nvr4208-8p Specifications

General IconGeneral
Operating SystemEmbedded LINUX
IP Camera Input8 channel
Two-way Talk1 channel Input, 1 channel Output, RCA
Interface1 HDMI, 1 VGA
OSDCamera title, Time, Video loss, Camera lock, Motion detection, Recording
Record Interval1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Ethernet1 RJ-45 Port (10/100/1000Mbps)
Max. User Access128 users
Smart PhoneiPhone, iPad, Android
HDD Bays1
Operating Temperature-10°C ~ +55°C (+14°F ~ +131°F)
Main ProcessorDual-core embedded processor
Multi-screen Display1/4/9
Video Detection and AlarmMotion Detection, MD Zones: 396 (22 x 18), Video Loss, Camera Blank
Alarm input4
Relay Output2
CompressionH.265, H.264
Recording ResolutionUp to 8MP
Record ModeManual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Camera Blank, Video Loss)
PoE8 ports (IEEE802.3af/at)
ProtocolsHTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS, etc.)
USB Interface2 USB2.0
Power SupplyAC 100~240V, 50/60 Hz
Power ConsumptionNVR: <10W (without HDD), PoE: Max 25.5W for single port, 130W total
Operating Humidity10%~90% RH
