Dahua nvr4208-8p User Manual

261
 Type: You can select trusted site and blacklist from the dropdown list. You can view the IP address
on the following column.
 Start address/end address: Select one type from the dropdown list, you can input IP address in the
start address and end address. Now you can click Add IP address or Add IP section to add.
a) For the newly added IP address, it is in enable status by default. Remove the √ before the item,
and then current item is not in the list.
b) System max supports 64 items.
c) Address column supports IPv4 or IPv6 format. If it is IPv6 address, system can optimize it. For
example, system can optimize aa:0000: 00: 00aa: 00aa: 00aa: 00aa: 00aa as aa:: aa: aa: aa: aa:
aa: aa.
d) System automatically removes space if there is any space before or after the newly added IP
address.
e) System only checks start address if you add IP address. System check start address and end
address if you add IP section and the end address shall be larger than the start address.
f) System may check newly added IP address exists or not. System does not add if input IP
address does not exist.
 Delete: Click it to remove specified item.
 Edit: Click it to edit start address and end address. See Figure 4-132. System can check the IP
address validity after the edit operation and implement IPv6 optimization.
 Default: Click it to restore default setup. In this case, the trusted sites and blocked sites are both null.
Note:
 If you enabled trusted sites, only the IP in the trusted sites list can access the device.
 If you enabled blocked sites, the IP in the blocked sites can not access the device.
 System supports add MAC address.

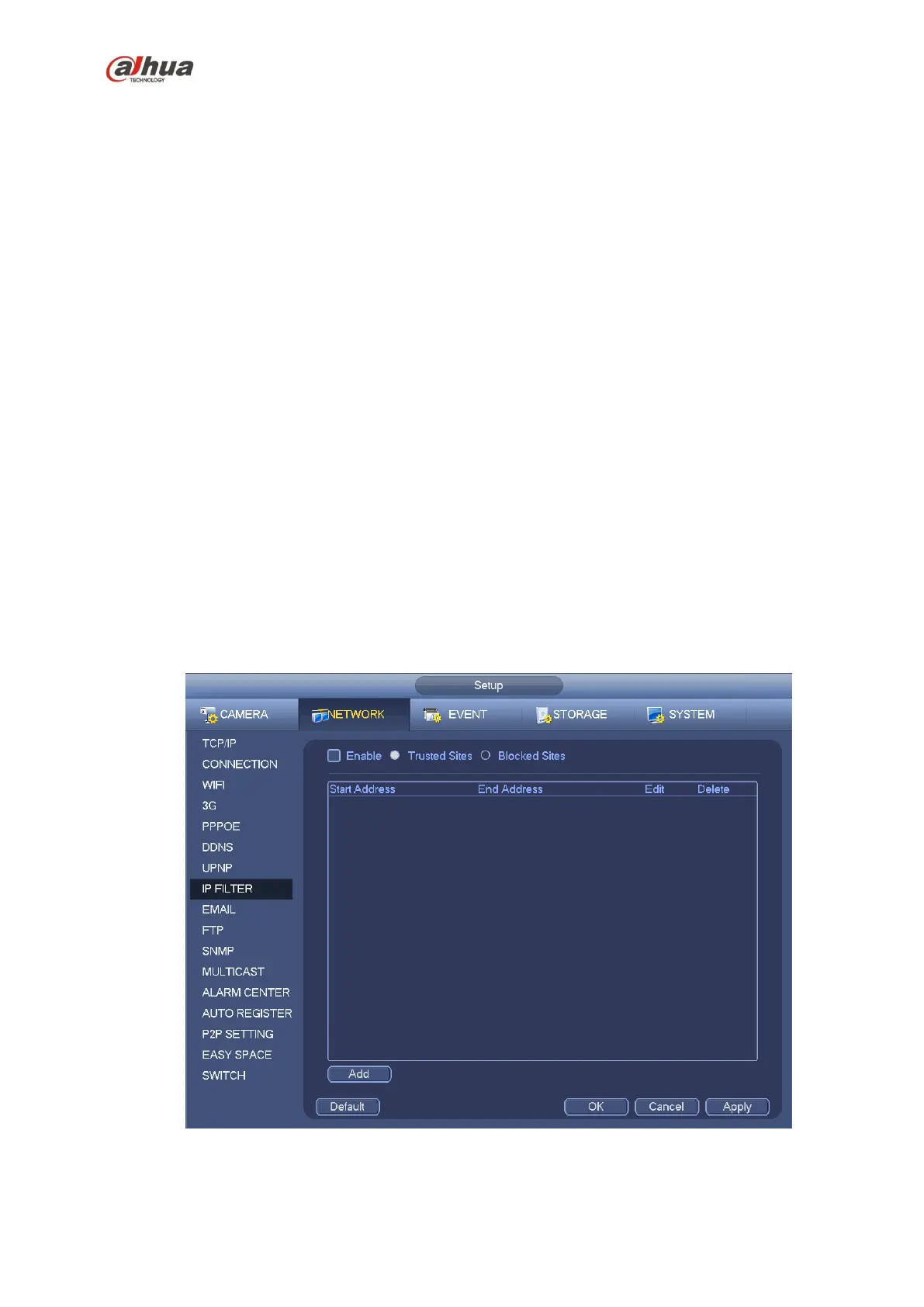

Figure 4-131

Dahua nvr4208-8p Specifications

General

Operating System	Embedded LINUX
IP Camera Input	8 channel
Two-way Talk	1 channel Input, 1 channel Output, RCA
Interface	1 HDMI, 1 VGA
OSD	Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Record Interval	1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Ethernet	1 RJ-45 Port (10/100/1000Mbps)
Max. User Access	128 users
Smart Phone	iPhone, iPad, Android
HDD Bays	1
Operating Temperature	-10°C ~ +55°C (+14°F ~ +131°F)
Main Processor	Dual-core embedded processor
Multi-screen Display	1/4/9
Video Detection and Alarm	Motion Detection, MD Zones: 396 (22 x 18), Video Loss, Camera Blank
Alarm input	4
Relay Output	2
Compression	H.265, H.264
Recording Resolution	Up to 8MP
Record Mode	Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Camera Blank, Video Loss)
PoE	8 ports (IEEE802.3af/at)
Protocols	HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS, etc.)
USB Interface	2 USB2.0
Power Supply	AC 100~240V, 50/60 Hz
Power Consumption	NVR: <10W (without HDD), PoE: Max 25.5W for single port, 130W total
Operating Humidity	10%~90% RH
