3.3.4 NVR42/42N/42-P/42-8P/42-16P/72/72-8P/42-4K/42-8P-4K/52-4KS2/52-8P-4KS2/52
-16P-4KS2/22-S2/22-P-S2/22-8P-S2/42-4KS2/42-P-4KS2/42-8P-4KS2/42-16P-4KS
2 Series
The following figures are based on the NVR 72-8P series.
○
1

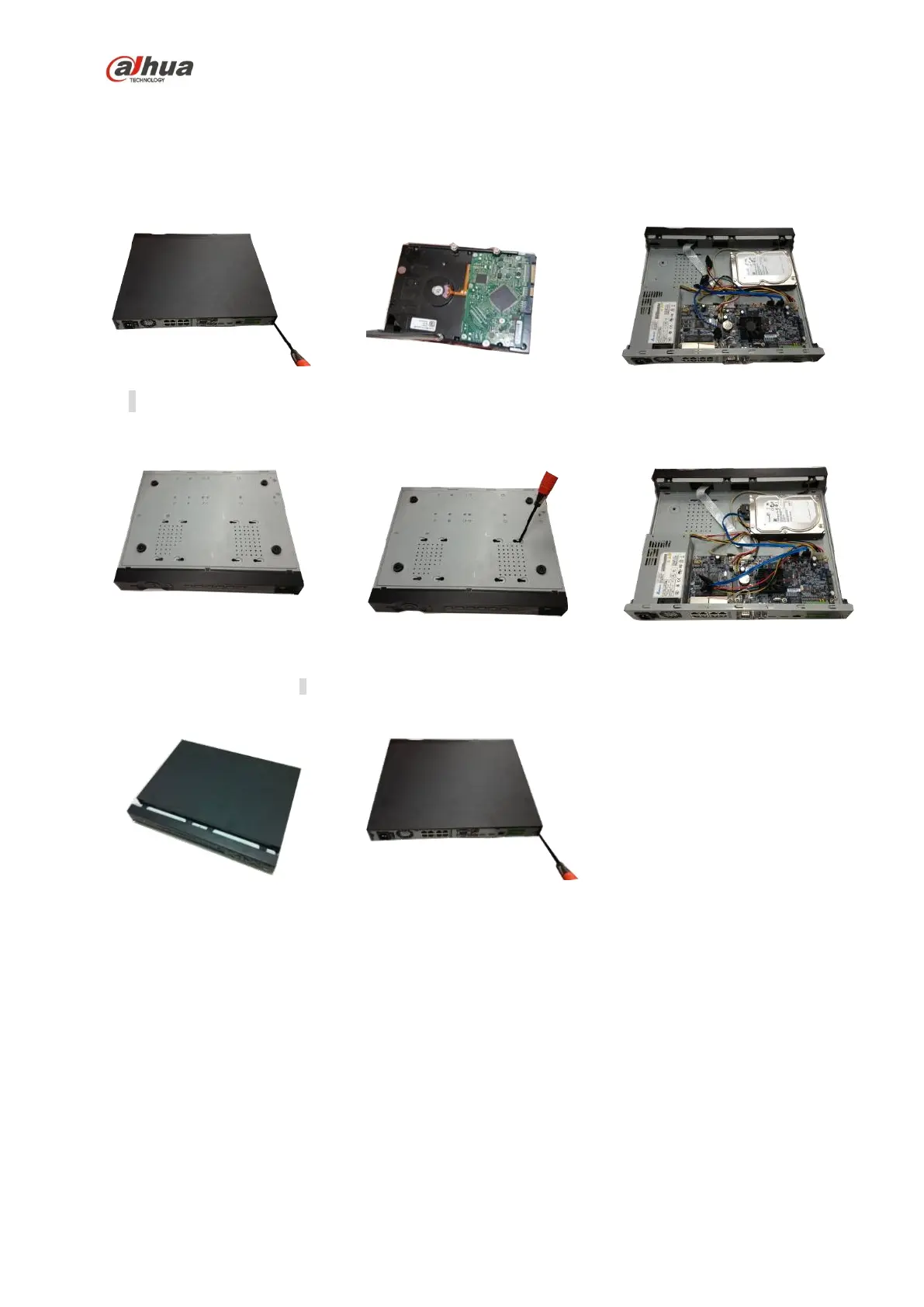

Loosen the screws of the upper
cover and side panel.
②Fix four screws in the HDD (Turn
just three rounds).
③Place the HDD in accordance with
the four holes in the bottom.
④Turn the device upside down and
then turn the screws in firmly.
⑤Fix the HDD firmly.
⑥Connect the HDD cable and power
cable.
⑦Put the cover in accordance with
the clip and then place the upper cover
back.
⑧Secure the screws in the rear panel
and the side panel.
