Dahua NVR4216-16P-4KS2 - NVR22-S2;22-P-S2;22-8 P-S2 Series

147
Figure 3-6
3.5.7 NVR22-S2/22-P-S2/22-8P-S2 Series

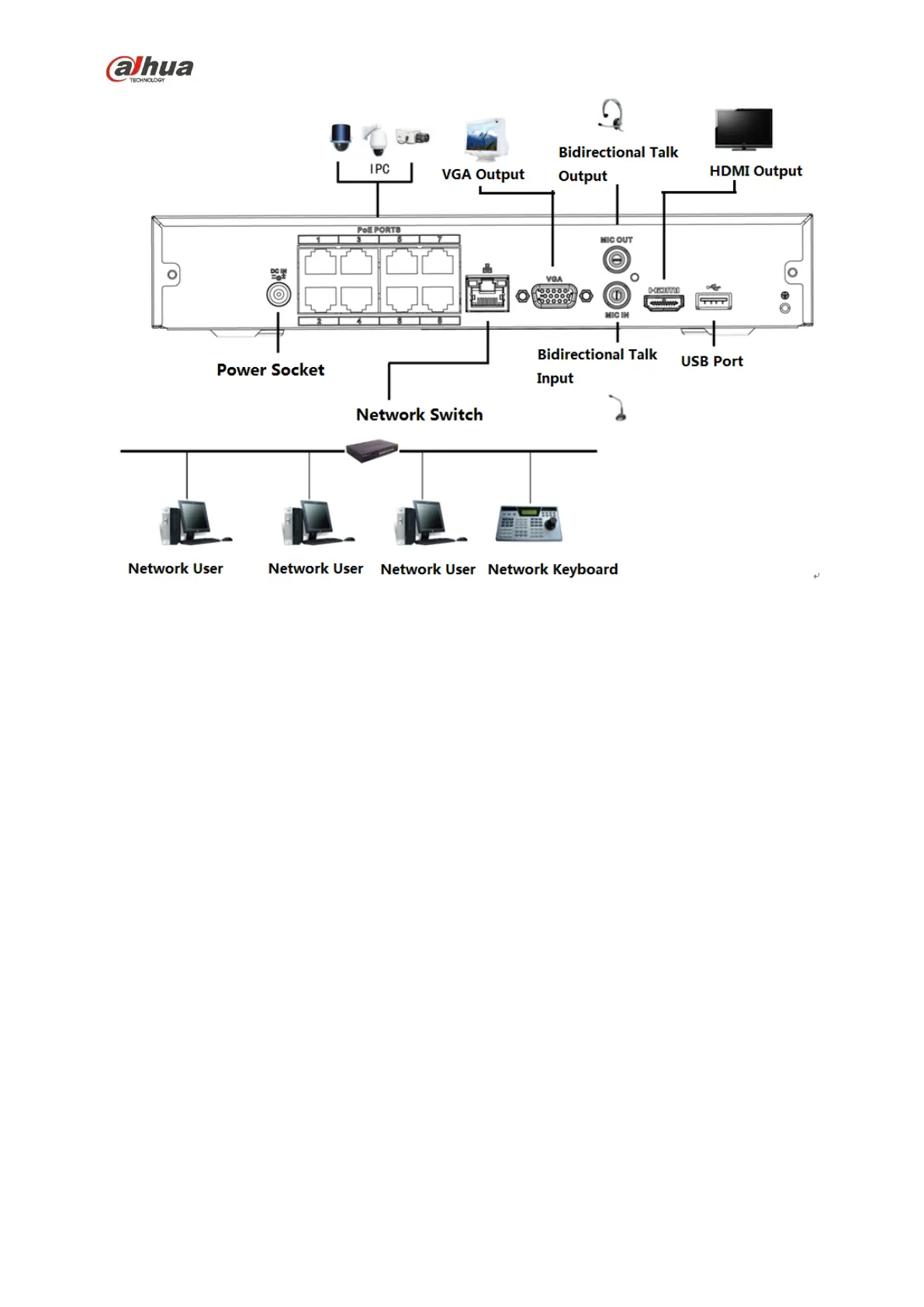

Please refer to Figure 3-7 for connection sample.
Please note the following figure is based on the NVR22-8P-S2.
