Figure 4-34
4.8.2.9 SNMP

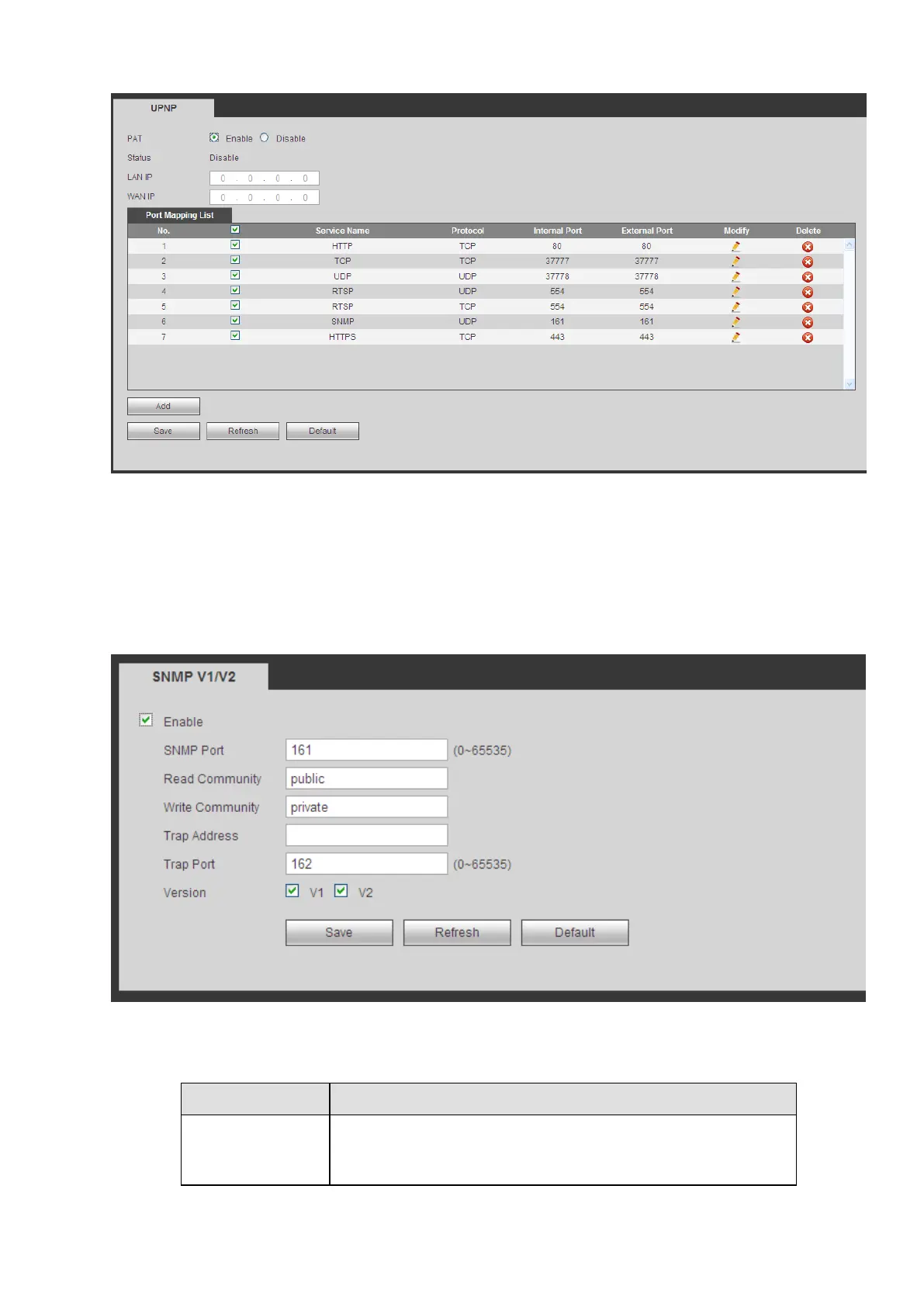

From main window->Setup->Network->SNMP, the SNMP interface is shown as in Figure 4-35.
The SNMP allows the communication between the network management work station software and the
proxy of the managed device. It is reserved for the 3
rd
party to develop.
Figure 4-35
Please refer to the following sheet for detailed information.
Parameter Function
SNMP Port The listening port of the proxy program of the device. It is a
UDP port not a TCP port. The value ranges from 1 to 65535.
The default value is 161
162
