Dahua NVR6000 Series

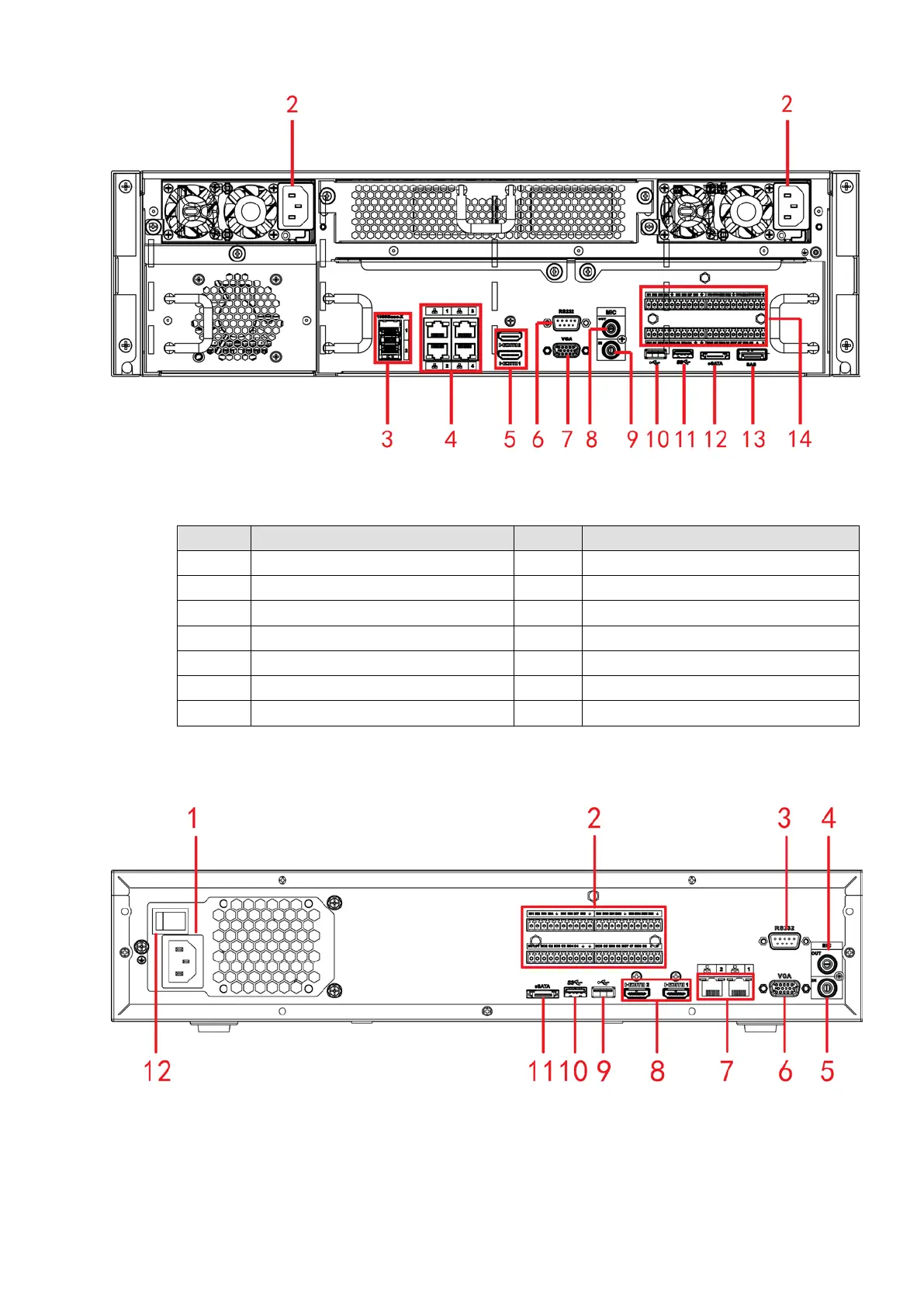

Figure 2-11
Please refer to the following sheet for rear detailed information.
SN
Name
SN
Name
1
Power on-off button
2
Power socket
3
1000M fiber port
4
Network port
5
HDMI port
6
RS232 port
7
Video VGA output
8
Audio output
9
Audio input
10
USB2.0 port
11 USB3.0 port 12 eSATA port
13 SAS extension port 14 Alarm input/output/RS485 port
2.2.3 NVR608-4K Series
The NVR608-32-4K series rear panel is shown as in Figure 2-12.
Figure 2-12
The NVR608-64-4K/NVR608-128-4K general series rear panel is shown as in Figure 2-13.
