Dahua NVR6000 Series

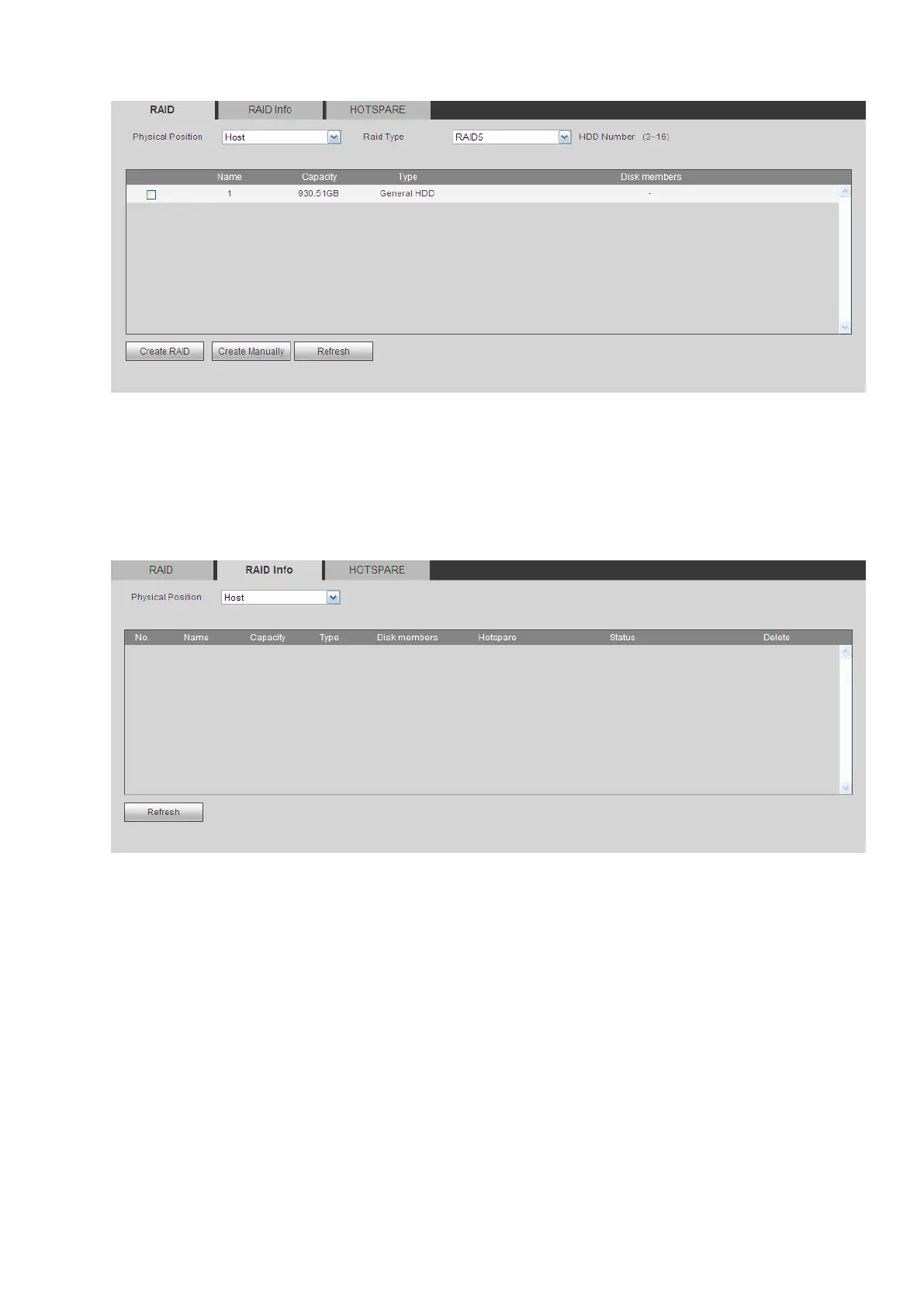

Figure 4-81
4.8.4.5.2 RAID Info
From main menu->Setup->Storage->RAID->RAID info, you can go to the following interface. See Figure
4-81. Here you can vie corresponding RAID information.
Figure 4-82
4.8.4.5.3 Hotspare disks
From main menu->Setup->Storage->RAID->Hotspare, you can see an interface shown as in Figure 4-83.
The type includes two options:
 Global: It is global hotspare disk. When any RAID becomes degrading, it can replace and build the
RAID.
 Local: It is local hotspare disk. When the specified RAID becomes degrading, it can replace and build
the RAID.
Select a hot spare device and then click Delete button. Click Apply button to delete.
190
