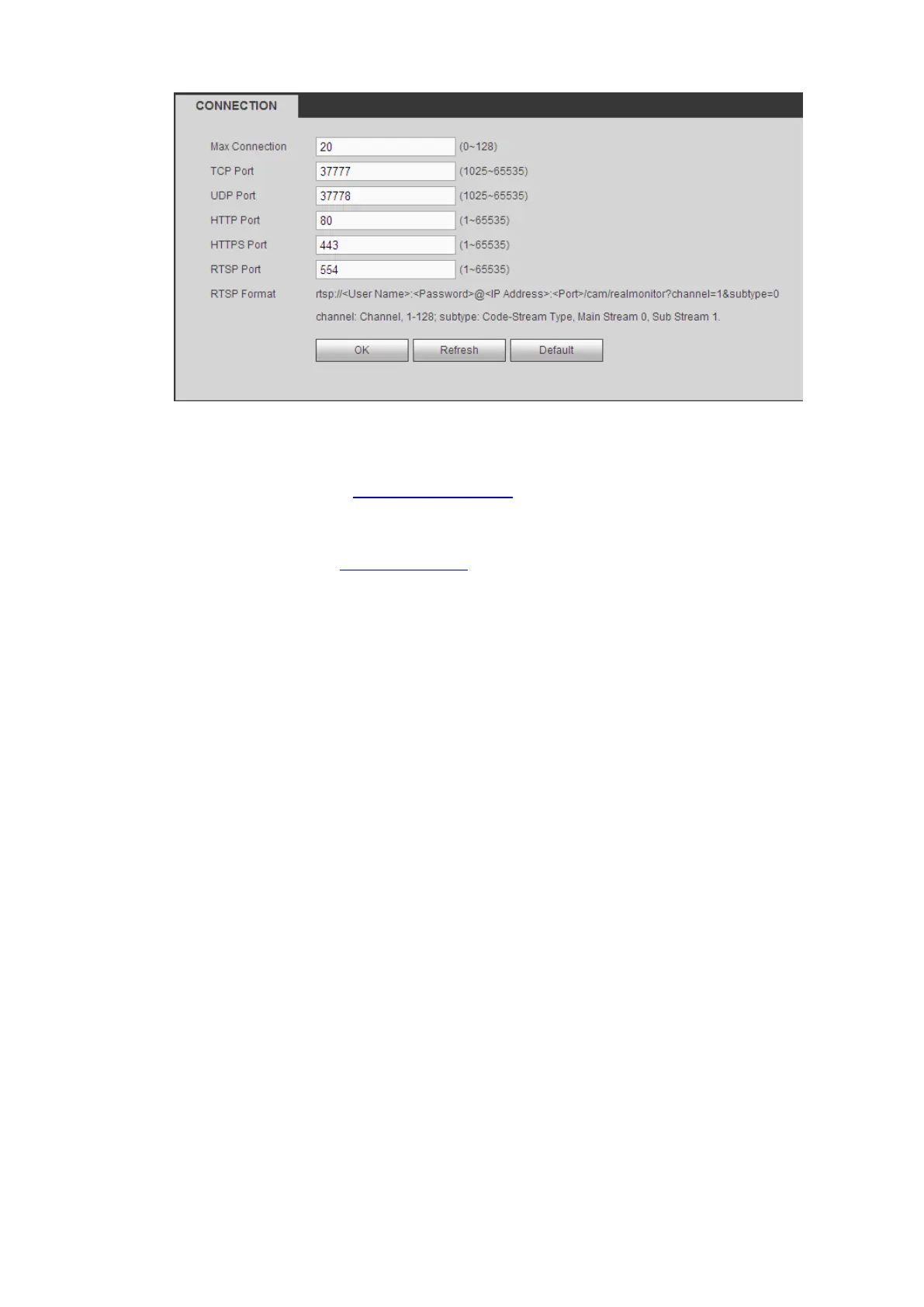

Figure 4-49
4.8.2.13.4 Login
Open the browser and then input https://xx.xx.xx.xx:port.
xx.xx.xx.xx: is your device IP or domain mane.
Port is your HTTPS port. If you are using default HTTPS value 443, you do not need to add port
information here. You can input https://xx.xx.xx.xx
to access.
Now you can see the login interface if your setup is right.
4.8.3 Event
4.8.3.1 Video detect
4.8.3.1.1 Motion Detect
After analysis video, system can generate a video loss alarm when the detected moving signal reached
the sensitivity you set here.
From main window->Setup->Event->Video detect->Motion detect, the motion detect interface is shown
as in Figure 4-50.
169
