Dahua NVR6000 Series

Figure 2-13

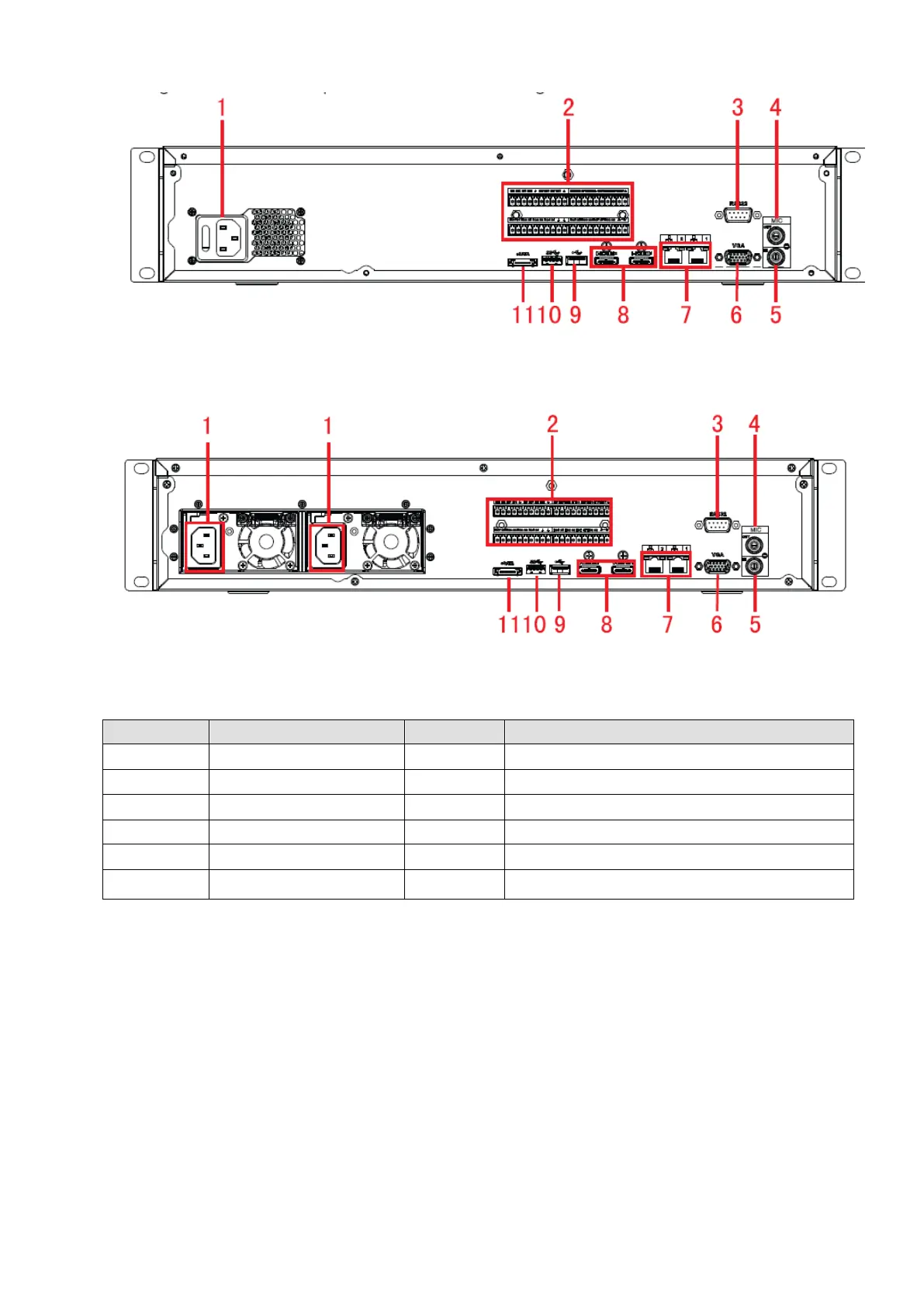

The NVR608-64-4K/NVR608-128-4K redundant power series rear panel is shown as in Figure 2-14.
Figure 2-14
Please refer to the following sheet for detailed information.
SN Function SN Function
1
Power socket
2
Alarm input/alarm output/RS485 port.
2 RS232 port 4 Audio output
5
Audio input
6
VGA port
7
Network port
8
HDMI port
9
USB 2.0 port
10
USB 3.0 port
11 eSATA port
2.2.4 NVR724-256 Series
The general rear panel is shown as in Figure 2-15.
