Dahua NVR6000 Series User Manual

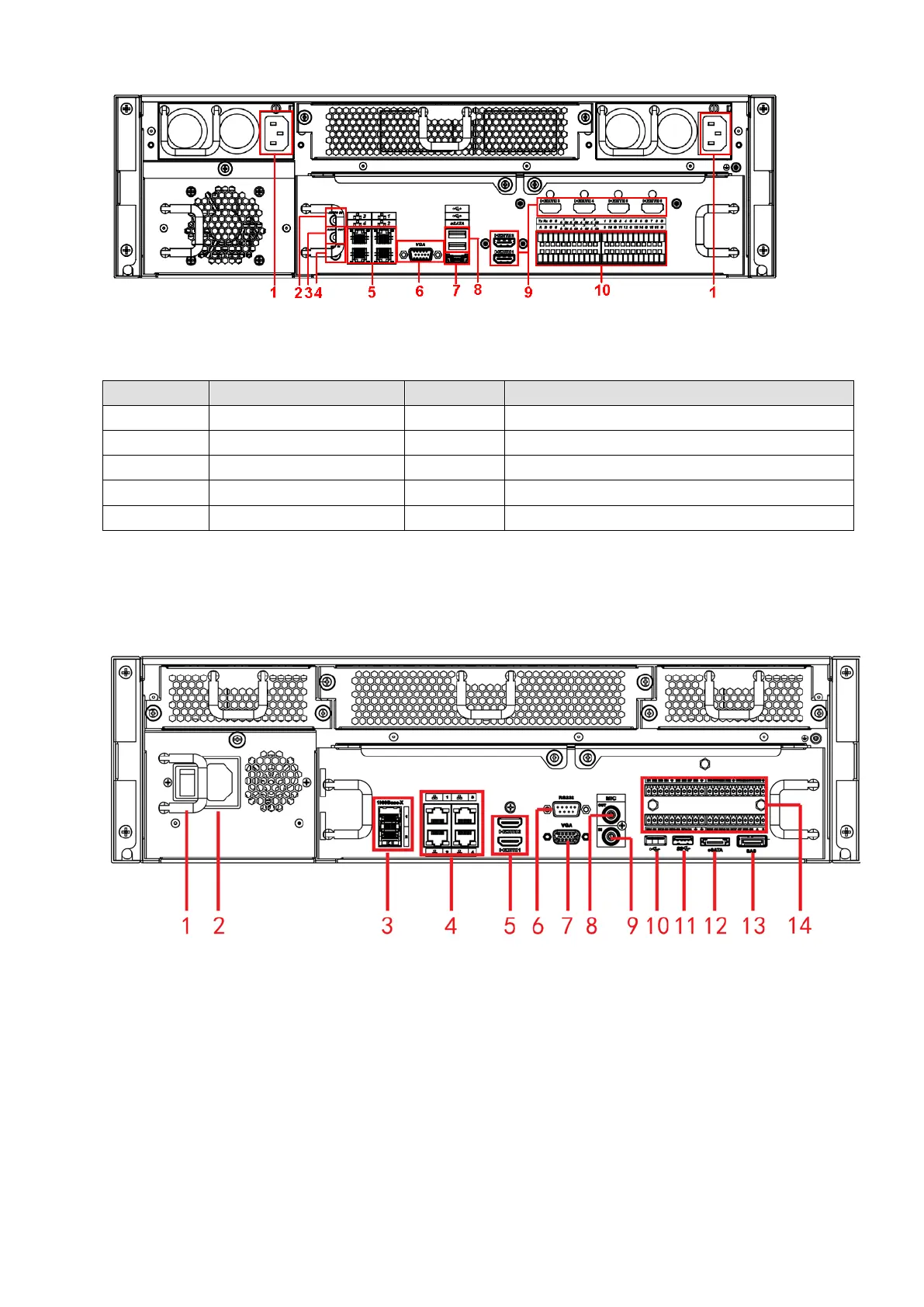

Figure 2-9
Please refer to the following sheet for rear detailed information.
SN
Function
SN
Function
1
Power socket
2
Audio Input
3
Audio output
4
Bidirectional talk input
5 Network port 6 Video VGA output
7 eSATA port 8 USB port
9
HDMI port
10
Alarm input/alarm output/RS485 port.
Important
Right now, system does not support audio input port. System supports HDMI1/HDMI2 port by
default. You need to purchase HDMI interface board if you want to use HDMI3-HDMI6 port.
2.2.2 NVR616-128-4K Series
The general series rear panel of NVR616-128-4K is shown as in Figure 2-10.
Figure 2-10
The redundant power series rear panel of NVR616-128-4K is shown as in Figure 2-11.
