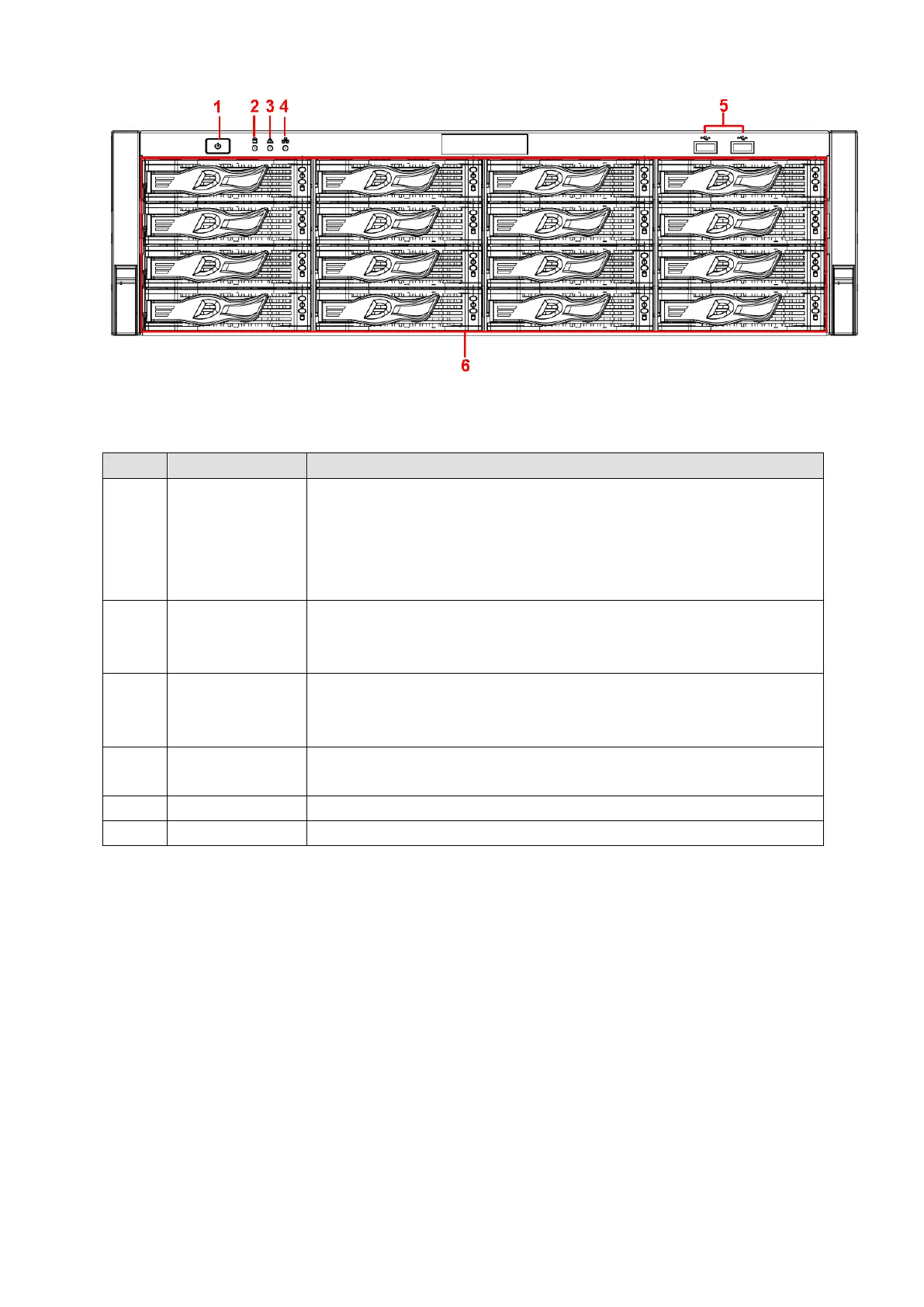

Figure 2-2
Please refer to the following sheet for detailed information.
1 Power button Press it once to turn on the device.
Press it for a long time to turn off the device (U
recommend).
Press power button for a long time or pull out the power cable may
result in device auto restart.
2
Indicator light
The blue light becomes on after system booted up properly.
In the system HDD, there are device important configuration file,
factory default configuration file, device initial boot up data.
3 Alarm indicator
light
The alarm indicator light becomes on once an alarm occurred. It
becomes on via the software detection. The alarm includes local
4 Network
The blue network indicator light is on after you connected the device
After you remove the front panel, you can see there are 16 HDDs. From the left to the right and from the
top to the bottom, it ranges from 1~4, 5~8, 6~12, 13~16. See Figure 2-3.
You can see there are two indicator lights on the HDD bracket.
The power indicator light is at the top. The light is yellow after you connected the device to the power.
The read-write indicator light is at the bottom. The blue light flashes when system is reading or
writing the data.
13
