Daikin BRC1E53 - 3-5 Lower Case Fixing

BRC1E53 Installer reference guide
4P419250-1
–
2015.10
8
Remote controller installation procedure
● Do not perform wiring close to a power line in order to avoid electrical noise (external
noise).
● Seal the wiring draw-in port securely with putty (eld supply) to prevent the entry of
insects or the like.
CAUTION

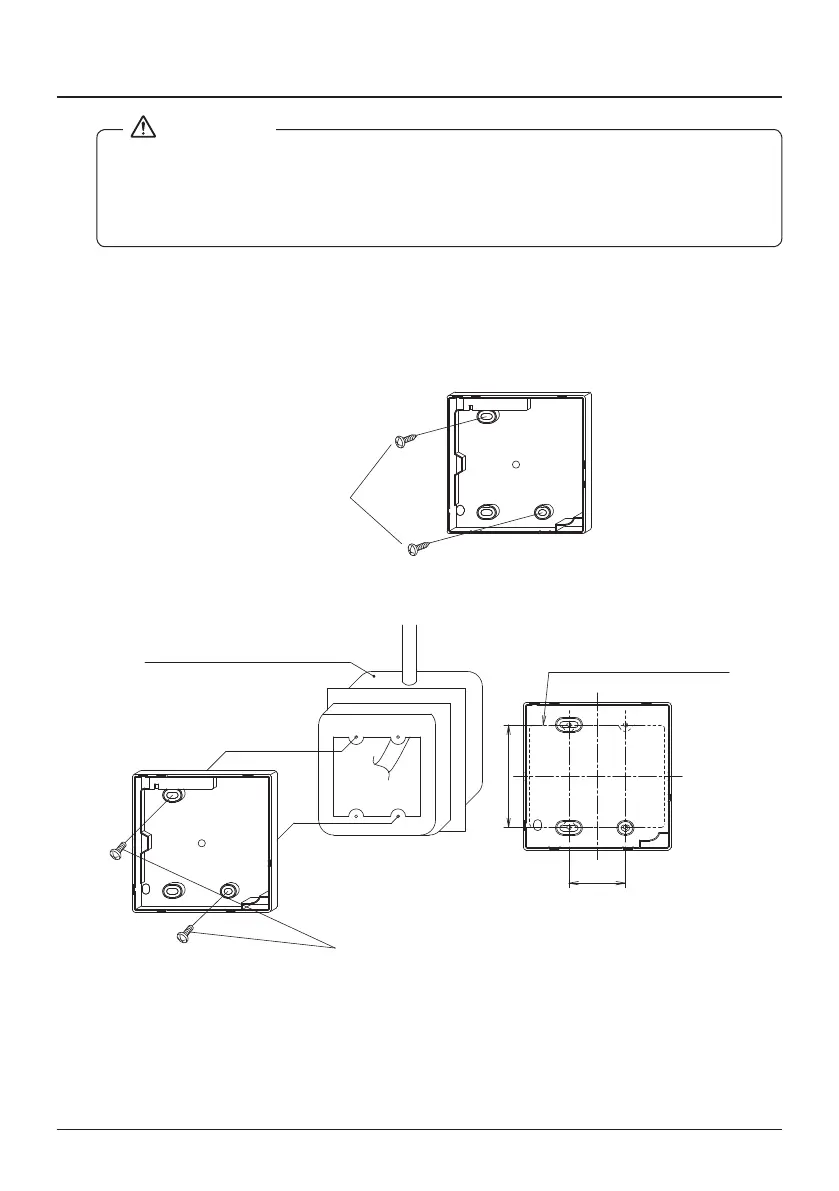

3-5 Fixing procedure of the lower case.
In the case of wiring a remote controller through the top center outlet or rear outlet, perform the
wiring through the outlet hole in the lower case before it is installed on the wall.
3-5-1 Wall mounting
Secure by using the attached wood screws (2×).
Wood screws
(
Ø4.0x30)
3-5-2 Switchbox mounting
Secure by using the attached small screws (2×).
(Installation pitch)
46
84
Switchbox for two units
(with no cover)
Switchbox
(field supply)
(Use optional accessory
KJB211A)
Small screws (M4×16)
