3 About the box
Installation manual
14
EBLA09~16D + EDLA09~16D
Daikin Altherma 3 M
4P620239-1B – 2022.05
WARNING
Rotating fan. Before powering ON the outdoor unit, make
sure that the discharge grille covers the fan as protection
against a rotating fan. See "4.2.4To install the discharge
grille"[417].
WARNING
ALWAYS use multicore cable for power supply cables.
CAUTION
Do NOT push or place redundant cable length into the unit.
WARNING
The backup heater MUST have a dedicated power supply
and MUST be protected by the safety devices required by
the applicable legislation.
CAUTION
To guarantee the unit is completely earthed, ALWAYS
connect the backup heater power supply and the earth
cable.
WARNING
Stripped wire. Make sure that stripped wire cannot make
contact with possible water on the bottom plate.
Commissioning (see "9Commissioning"[445])
WARNING
Commissioning method MUST be in accordance with the
instructions from this manual. See
"9Commissioning"[445].

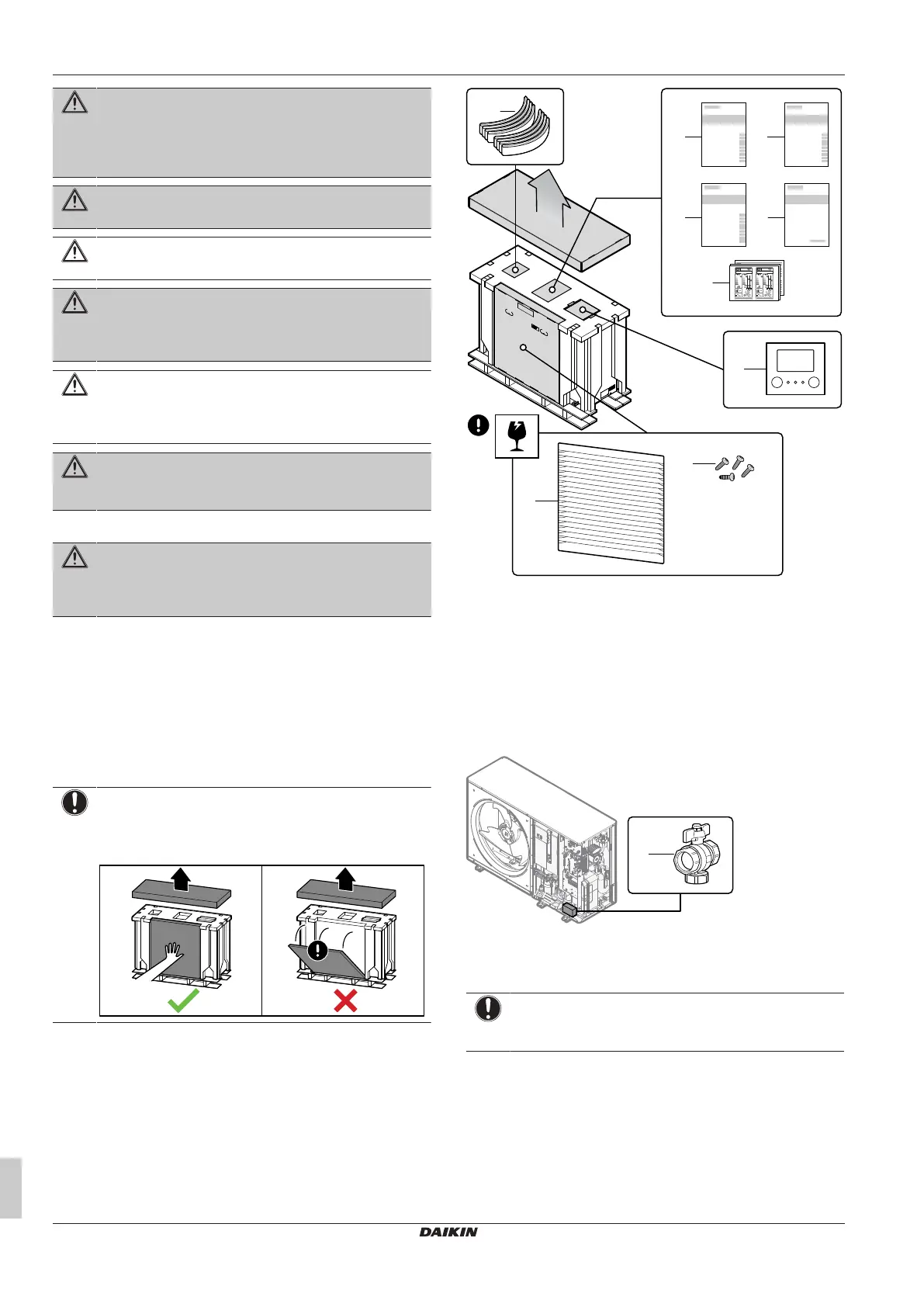

3 About the box
3.1 Outdoor unit
3.1.1 To remove the accessories from the
outdoor unit
NOTICE
Unpacking – Top packaging. When you remove the top
packaging, hold the box containing the discharge grille to
prevent it from falling.
1 Remove the accessories on top and in front of the unit.
a
g
d
b c
e
f
ENERG
IJAY
IAIE
ENERG
IJAY
IAIE
h
i
a Slings to carry the unit
b General safety precautions
c Operation manual
d Installation manual
e Addendum book for optional equipment
f Energy label
g User interface (front plate, rear plate, screws, and wall
plugs)
h Discharge grille
i Screws for discharge grille
2 After opening the unit (see "4.3.1 To open the outdoor
unit"[417]), remove the accessory inside the unit.
j
j Shut-off valve (with integrated filter)
3.1.2 To remove the transportation stay
NOTICE
If the unit is operated with the transportation stay attached,
abnormal vibration or noise may be generated.
The transportation stay protects the unit during transport. During
installation it must be removed.
Prerequisite: Open the service cover. See "4.3.1 To open the
outdoor unit"[417].
